Emergency combined body shower FAID0011

Combined emergency body shower and eye-wash fountain, for surface mounting, for water supply from the wall. Can be used independently of each other. Valve operation of showerhead by triangular handle, hand shower operated by pressing the white trigger button. Neither function self-closing. Water flow stopped by pushing the pull rod up or, with the eye-wash fountain, by pressing the red water stop button. Wall bracket and emergency shower head. Eye-wash fountain with device for precise positioning, inclined 20° forward, with spiral hose for flexible or stationary use. With an integrated flow regulator for a constant water spray height, non-return valve, grit filter and dust cap with user instructions. Surface body shower, green EPS coated (RAL 6032), eye-wash fountain, plastic, green with white trigger button. Complies with EN 15154, Part 1 and 2, includes the "emergency shower" and "eye washing facility" safety symbol on an adhesive label in compliance with ISO 3864, Part 1. Volumetric flow rate body shower: approx. 65 l/min at 1 bar pressure, approx. 110 l/min at 3 bar pressure Volume flow rate eye-wash fountain: 9 l/min from 1 bar pressure upwards Water connection: G 3/4 B

Specification

Volume flow rate at 3 bar 1.83 liter per second

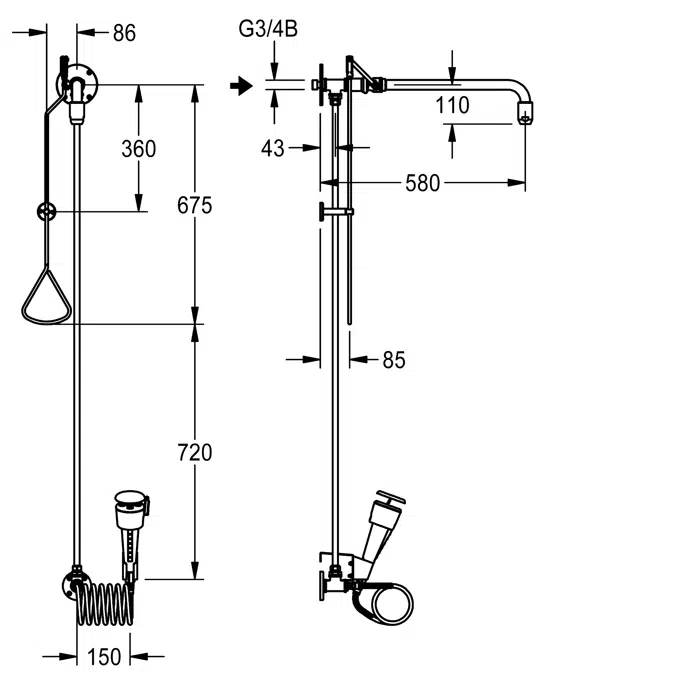

Spout projection 588.00 mm

Type of connection Wall connection

Drip pan NO

Technical specification

Unique ref.2030019221
Product familyEmergency showers
Product groupWhole body showers
TypeObject (single object)
Date of publishing2021-12-17
Edition number1

Links

Product urlhttps://kwc-professional.com/en/faid0011-combined-emergency-shower_p2030019221

Material mainBrass
Material secondaryPlastic
Designed inGermany
Manufactured inGermany
Weight Net (Kg)14

Classification

BIMobject CategorySanitary - Showers
Uniclass 2015 CodePr_40_20
Uniclass 2015 DescriptionSanitary fittings and accessories
OmniClass Number23-29 37 15
OmniClass TitleEmergency Showers
