ECC2 function controller ZA3OP0022

ECC2 function controller - A3000 open with Ethernet and CAN bus connection for the fittings level and with integrated power supply, real-time clock with calendar function and WEB server. For connecting 32 AQUA 3000 open fittings/electronic system modules or up to 200 m cable length for the purpose of supplying power and external control, e.g. for adjusting fittings and for communication. With BMS connectivity for BacNet - IP, KNX - IP and ModBus - TCP, 230 V AC / 24 V DC.

Specification

Input supply voltage V 230.00 volt
Protective system IP 20
Communication Yes
Output voltage 24.00 Volt
Power switch No
Output voltage UOM DC
Maximum cable length 200.00 Meter
Maximum output current 60.00 Watt

Technical specification

Unique ref.2030016282
Product familyWater management
Product groupComplementary parts water management
TypeObject (single object)
Date of publishing2020-05-12
Edition number1

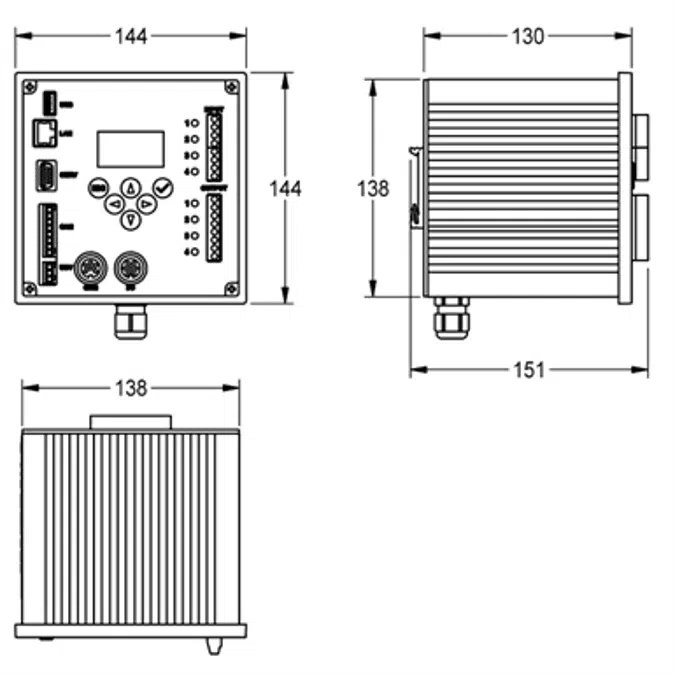

Height (mm)144
Width (mm)144
Depth (mm)151

Links

Product urlhttps://kwc-professional.com/en/za3op0022-ecc2-function-controller_p2030016282

Material mainPlastic
Designed inGermany
Manufactured inGermany
Weight Net (Kg)2.26

Classification

BIMobject CategorySanitary - Installation Systems
Uniclass 2015 CodeSs_75_70_52_96
Uniclass 2015 DescriptionWater supply control systems
