ANIMA single washbasin WT450
ANIMA single washbasin WT450
    KWC Group Management AG

    ANIMA single washbasin WT450

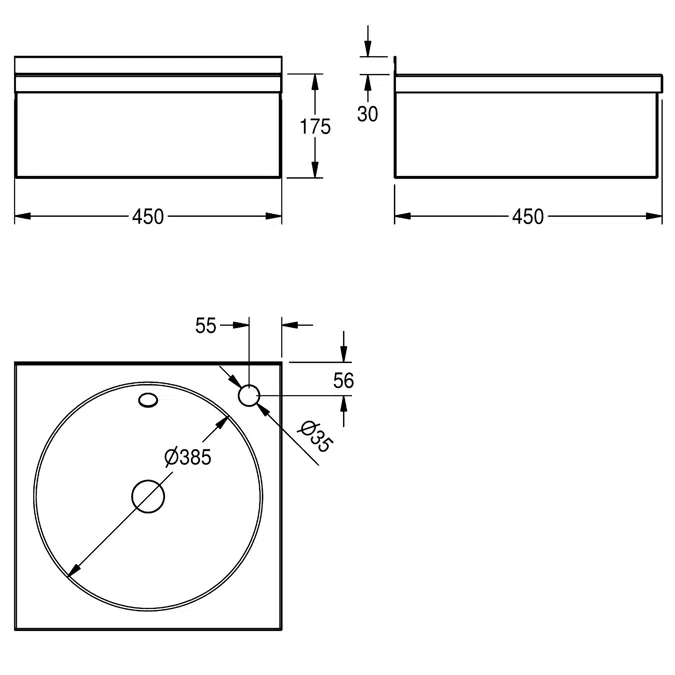

    Single wash basin, stainless steel, material thickness 0.9 mm, surface satin finished, circular bowl with diameter 380 mm, rear upstand, single tap hole, 32 mm waste/overflow fitting, includes screws and dowels. Tap hole right Dimensions 450 x 175 x 450 mm (W x H x D)
    Specification

    • Material code      1.4301 Chrome Nickel steel V2A
      Overall depth      450.00 mm
      Overall height      175.00 mm
      Overall width      450.00 mm
      Type of mounting      Wall mounting
      Bowl height      145.00 mm
      Bowl depth      385.00 mm
      Bowl width      385.00 mm
      Overflow      Yes
      Tap hole diameter      35.00 mm
      Tap hole position  Right
      Number of tap holes      1.00000
      Tap ledge      No
      Waste size      DN 32
      Type of basin      Vanity basin
      Bowl finish      Satin finish
      Type of waste kit      Plug waste
      Siphon diameter      DN 32
      Overflow position      Back
      Spillway      Yes
      Splash back height      30.00 mm

    Technical specification
    • Unique ref.2000100365
    • Product familyWash basins
    • Product groupWash basins
    • TypeObject (single object)
    • Date of publishing2021-03-25
    • Edition number1
    • Height (mm)175
    • Width (mm)450
    • Depth (mm)450
    Links
    Related
    • Material mainStainless steel
    • Designed inAustria
    • Manufactured inAustria
    • Weight Net (Kg)5.5
    Classification
    • BIMobject CategorySanitary - Wash basins
    • Uniclass 2015 CodePr_40_20_96_96
    • Uniclass 2015 DescriptionWall-hung wash basins
