QuadSpan™ Translucent Polycarbonate Skylight Systems

QuadSpan™ Translucent Polycarbonate Skylight Systems

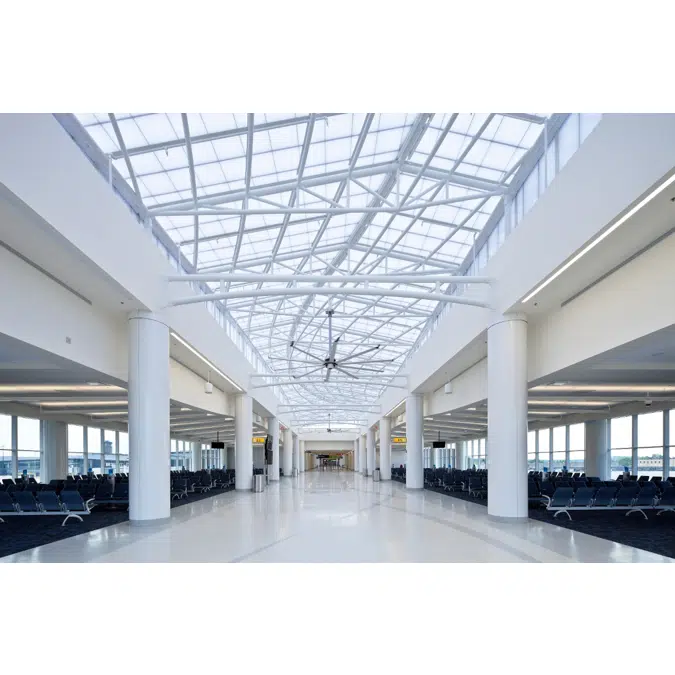

QuadSpan™ two panel translucent skylights diffuse sunlight, provide excellent thermal performance, and are significantly lighter than traditional glass systems. Glazing panels are pre-assembled for easy installation and can span long distances, allowing for a clean look with less visible exterior framing. QuadSpan™ is available in a variety of configurations, is custom designed to fit your project’s needs, and is a great choice for new construction and renovation.

Product Highlights

Vaults, ridges, single slopes, pyramids, polygons, and curved domes available – plus fully custom shapes
Removeable skin technology (RST) allows interior or exterior glazing to be replaced independently
Long panel assemblies permit fast, easy installation
Panels are pre-assembled for quality control and can be insulated for enhanced thermal protection
Minimal exterior aluminum support members create a clean aesthetic
Triple tooth glazing connection is able to withstand extreme loading
Wide variety of standard colors with bi-color, custom colors and color matching available
Warrantied to maintain their translucence, the tight-cell design increases durability and enhances light diffusion
Class A Roof Assembly and sound reduction configurations are available
Additional specialty options include High-velocity Hurricane Zone (HVHZ) and more

Specification

- Thickness: 2.75 in (70 mm) & 4 in (102 mm)
- Width: 2 ft nominal (23 5/8 in) (600 mm)
- Panel Length: Up to 38 ft long
- Panel Weight: 1.5-2 lbs/ft²
Base Options
- Technology: Removable Skin Technology (RST) - Allows for the removal of the exterior panel while the interior panel remains in place
- Panel Joint: Structural member, mechanically interlocking, sealed joint
- Exterior Skin: 10 mm translucent polycarbonate panel with Nano-Cell® extrusion
- Interior Skin: 8 mm translucent polycarbonate panel with Nano-Cell® extrusion
- Color Options: Standard - Clear, White, Ice White, Blue, Green, Bronze, Gray
  (Note: all colors are available with a matte finish upon request - contact us for other available color options)
Thermal Performance
- System U-Factor - NFRC Certified - 0.19 to 0.32 (4" panel)
- System SHGC - NFRC Certified - 0.19 to 0.38 (4" panel)
- VT - 0.10 to 0.35 (4" panel)
*Contact KLA for more detailed thermal performance information. Values subject to color selections and configuration.
Testing and Performance
- ASTM D635, D1929, D2843, E84 per ESR-4745 - CC1
- Uniform Load Structural / Spans - ASTM E330 - Span - 2ft to 10ft - Contact us for job specific span capabilities
- High Velocity Hurricane Zone (HVHZ) - TAS 201, 202, 203 - Missile impact level D, Up to 100psf.
- Concentrated Load 1sqf Area - No Damage - 800 lbs
- Water Penetration - ASTM E331 - Pass
- Air Infiltration - ASTM E283 - Pass at 6.24 psf
- Roof Assembly Classification - ASTM E108 - Class A / C
- Sound Transmission Loss (STC) - ASTM E90 / E1332 - 25-32, OITC: 17-25

Technical specification

Unique ref.quadspan-translucent-polycarbonate-skylight-systems
Product familyDaylighting Systems
Product groupTranslucent Skylight Systems
TypeObject (single object)
Date of publishing2025-03-07
Edition number1

Links

Material mainPolycarbonate
Material secondaryAluminium
Manufactured inUnited States

Classification

BIMobject CategoryConstruction - Roof
IFC classificationRoof
Uniclass 2015 CodeSs_30_10_30_20
Uniclass 2015 DescriptionGlazed unit roof framing systems
CSI MasterFormat 2014 Code08 45 13
CSI MasterFormat 2014 TitleStructured-Polycarbonate-Panel Assemblies
OmniClass Number23-13 33 27 19
OmniClass TitleGlazed Roof Structures
