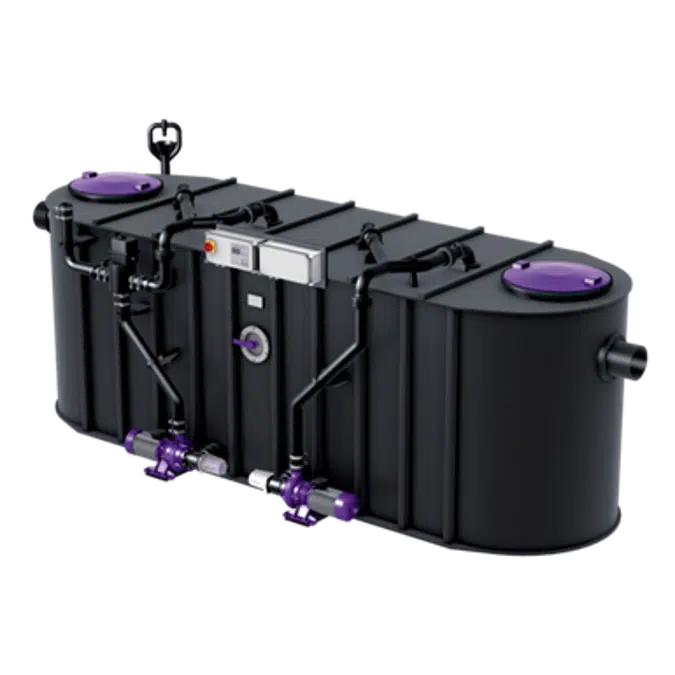

KESSEL-Grease separator EasyClean free NS 20, Auto Mix & Pump

KESSEL-Grease Separator EasyClean free Auto Mix & Pump NS 20 Tank Manufactured from virgin, non-recycled polyethylene, for free-standing installation in frost-protected areas, with integrated sludge trap and sloped surfaces for fast and clean disposal, with two domed covers made of polymer, with quickrelease closures, sealed odour-tight, with suction device installed for the joint disposal of contents of sludge trap and grease separator chamber, intake pipe 75 mm OD PN 10 in accordance with DIN 2501, Storz-B coupling R 2 1/2 for connection to the disposal vehicle. Viewing window with wiper. Inlet and outlet Ø 200 / 250 mm for the connection to PE-HD pipes according to DIN 19537, HT pipes according to DIN 19560, PP or AS. Disposal System Auto Mix & Pump with program-controlled disposal and rinsing device and Shredder-Mix-System, KESSEL disposal system Auto Mix & Pump with switching distribution and actuator valve, mixing and rinsing device via jet and conic nozzles, external pump(s) 3.0 kW (IP55, 400 V, 50 Hz) with integrated chopping mechanism and closure valve, 5 m cable length, 2 solenoid valves 1“, with refill inlet in accordance with DIN 1988. Control Unit for actuating the pump(s) with potential-free contact. •Delivery: System completely assembled. •Accessories: Sampling chamber, remote control, TeleControl, SonicControl level sensing system page 331 – 334; lifting stations see chapter "3" Technical note page 330 Specify flow direction when ordering. • Certification number: Z-54.1-473 • Size: NS 20 • Sludge trap capacity: 2000 liter • Total separator capacity: 1370 liter • Grease storage capacity: 800 liter • Inlet / Outlet: DN 200 (DA 200 mm) • Weight: approx. 620 kg • Pump specs: 3,0 kW (IP55, 400 V, 50 HZ) • Output: 37 m³/h at 10 Meter medium pressure height • Dimensions: • Length: 4250 mm • Width: 1350 mm • Height: 1525 mm • Inlet height h2: 1100 mm • Outlet height h1: 1030 mm • Set up dimensions: • Length: 4510 mm • Width: 1620 mm • Height: 1700 mm • Warranty on polyethylene material : 20 years

Specification

• Coverage features • Cover type: lid • Cover material: plastic • Cover color: black • Tightness: odor-tight • Locking: quick release fastener • Dimensions • Installation surface length: 4,510 mm • Installation area width: 1,620 mm • Installation surface height: 1,555 mm • Insertion length: 4,250 mm • Loading dimension, width: 1,350 mm • Installation height: 1,525 mm • Waste water content • Separator capacity: 1,370 l • Total volume: 3,370 l • Sludge trap capacity: 2,000 l • Storage amount of fat: 800 l • general characteristics • Material: PE • Standard: EN 1825: 2004, DIN 4040-100 • execution • Shut-off device: yes • Disposal type: automatic disposal and cleaning system • Disposal facility: disposal pump • Disposal variant: Auto Mix & Pump • Filling device according to DIN 1988: yes • Nominal size (NS): 20 • Sight glass: yes • Shredder mix system: yes • SonicControl: no • Water supply: 2 solenoid valves 1 " • container • Outlet nominal diameter (DA): 200 • Outlet nominal diameter (DN): 200 • Distance pipe bottom inlet to tank bottom: 1,100 mm • Distance pipe bottom outlet to tank bottom: 1,030 mm • Inlet / outlet connection: PE-HD pipes according to DIN 19537, HT pipes according to DIN 19560, PP or AS • Pressure outlet (DA): 75 mm • Pressure outlet (DN): 65 mm • Nominal pressure (PN): 10 • Inlet nominal diameter (DA): 200 mm • Inlet nominal diameter (DN): 200 mm • Conveyor • Pump: SPF 300 KE 2.0 • Number of pumps: 2 • Delivery head max .: 17 m • Delivery rate max .: 60 m3 / h • Operating voltage: 400 V • Mains frequency: 50 Hz • Operating mode: S2 - 30 min. • Power P1: 3.6 kW • Power P2: 3 kW • Speed: 2,850 rpm • Required protection (line protection): Protection via 400 V switching device • Material temperature (permanent) max .: 40 ° C • Connection type: direct connection • Weight: 44 kg • Impeller type: radial impeller with chopper • Length of mains connection line pump: 5 m • Nominal current: 6.2 A. • Protection class pump: IP 55 • Protection class: I. • Type of connection line pump: H07RN-F 7G 1.5 mm2 • control • Switching device: yes • Operating voltage: 400 V • Mains frequency: 50 Hz • Self-diagnosis system (SDS): yes • Battery backup: no • Multi-line display: yes • Log book function: yes • USB interface: yes • GSM interface: no • Potential-free contact: yes • Required fuse protection (line protection): C 16 A • Required fuse protection (RCD): 30 mA • Motor protection switch: yes • Protection class switching device: IP 54 • Other features • Delivery condition: ready for installation (electrical components, connecting parts must be connected on site) • CE marking: yes • Installation situation: free installation • External monitoring: TÜV Rheinland type tested and monitored • Gross weight: 720 kg • Net weight: 620 kg • Scope of •Delivery: Storz-B coupling R 2 1/2 "for suction truck connection

Technical specification

Unique ref.93020-01-PVS
Product familyIndividual Solutions Auto Mix & Pump (Grease separator EN 1825 free)
Product groupSeparation technology - Individual Solutions
TypeObject (single object)
Date of publishing2021-03-19
Edition number1
Height (mm)1525
Width (mm)1350
Depth (mm)4250

Links

COBie Product Data Sheethttps://www.kessel.com/info?han=93020.01/PVS
Product urlhttp://www.kessel.com/info?han=93020.01/PVS

Material mainPolyethylene
Material secondaryPlastic
Designed inGermany
Manufactured inGermany
Weight Net (Kg)620

Classification

BIMobject CategoryPlumbing - Drainage
IFC classificationObject
