Keller minimal windows® pivot door
Keller minimal windows® pivot door
Keller minimal windows® pivot door
Keller minimal windows® pivot door
Keller minimal windows® pivot door
Keller minimal windows® pivot door
Keller minimal windows® pivot door

    Keller minimal windows® pivot door

    A stylish door solution with particularly smooth operation

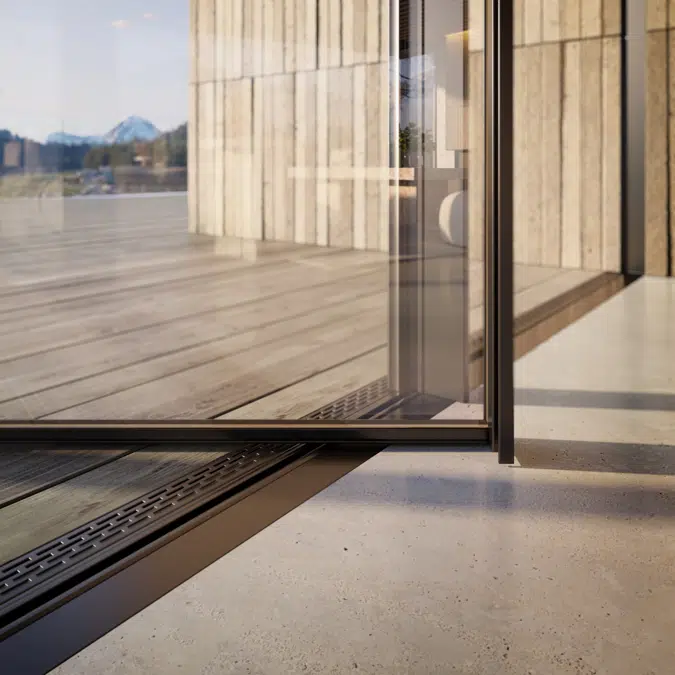

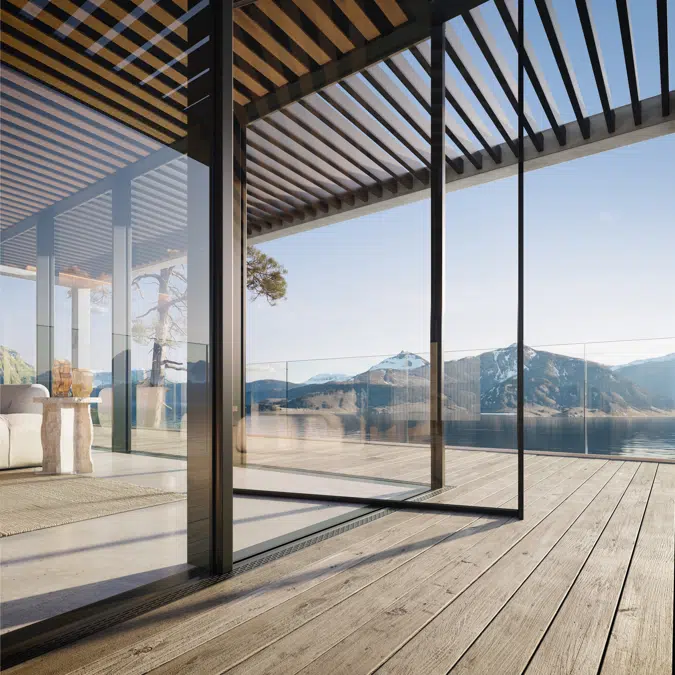

    Experience the pinnacle of modern architectural design with our Keller minimal windows® pivot door. Unlike traditional door hinges, our pivot door rotates on a vertical axis to make an impressive statement in any room. Glass pivot doors are experiencing a lasting trend in contemporary luxury homes as they add a touch of sophistication to any architectural design.

    The pivot is an oversized, bespoke door that can be opened both inwards and outwards. It integrates seamlessly with our other minimal windows® systems, offering endless creative possibilities when combined with fixed and sliding elements. Each component fits seamlessly into the same frame, creating a unified and visually stunning design.

    Available in oversized versions, this unique door design exudes elegance and luxury and enhances the ambience of any living space. Invisible floor fixings create a sleek and seamless appearance, while a weather-resistant magnetic seal at the top and bottom ensures a reliable seal, even in adverse conditions.


      Specification
        • Maximum leaf dimensions W = 1.800 mm x H = 3.000 mm
        • Maximum leaf weight Wt = 250 kg
        • Minimum distance rotary leaf axis <>stop 150 mm
        • Maximum distance rotary leaf axis <>stop 1⁄2 leaf width
        • Horizontal adjustability of lower rotary bearing +/- 3 mm
        • Vertical adjustability of lower rotary bearing +/- 3 mm
        • Horizontal adjustability of upper rotary bearing +/- 3 mm
        • Vertical decoupling of upper rotary bearing<>leaf hinge part Yes
        • Rotary leaf lock in 90° open position Yes
        • Optional door closer and/or door opener, top Yes
        • Barrier-free accessibility DIN 18040-1, DIN 18040-2
        • Air permeability up to class 4 according to EN 12207
        • Driving rain tightness up to class 6A according to EN 12208
        • Resistance to wind load up to class C2/B3 according to EN 12210
        • Resistance to burglary up to RC 2 according to EN 1627
      Technical specification
      • Unique ref.keller-minimal-windows-pivot-door
      • Product familyPivot doors
      • Product groupPivot doors
      • TypeObject (single object)
      • Date of publishing2026-04-09
      • Edition number1
      Related
      • Material mainAluminium
      • Designed inLuxembourg
      • Manufactured inLuxembourg
      Classification
      • BIMobject CategoryDoors - Glazed
      • IFC classificationDoor
      • ETIM CodeEC003534
      • ETIM NameExterior door (complete with frame)
      • Uniclass 2015 CodeEF_25_30
      • Uniclass 2015 DescriptionDoors and windows
      • CSI MasterFormat 2014 Code08 11 16
      • CSI MasterFormat 2014 TitleAluminum Doors and Frames
      • OmniClass Number23-17 11 21 11
      • OmniClass TitleGlazed Hinged Doors
