Elbow switch - JCK207

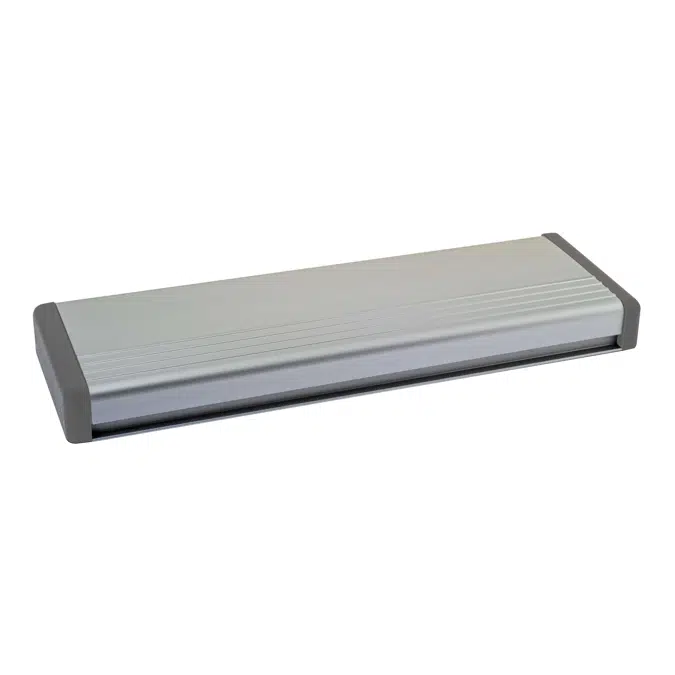

The JCK207 is an elbow-operated switch that is essential in the use of automatic door opening systems.

The switch embodies a flat pressure surface with four tactile grooves that serve as additional guidance for people with visual impairments. The user can easily feel where to press to activate door opening.

JCK207 is made of silver anodized aluminum and has dark gray endcaps, and it is delivered with 1 microswitch (Normally Open IP67), but can also be ordered with more.

Specification

Manufactured in Sweden.
Material: Aluminum 6060-T6, POM (Acetal plastic).
Dimensions l/w/d: 245x80x23 mm.
Microswitch: Standard 1pc. Normally Open IP67. It can also be ordered with 2pcs. Normally Open/Normally Closed IP67.

Technical specification

Unique ref.elbow-switch-jck207
Product familyMetal
Product groupAluminum
TypeObject (single object)
Date of publishing2025-05-26
Edition number1
Height (mm)245
Width (mm)80
Depth (mm)23

Links

Product urlhttps://jckontakter.se/produkt/armbagskontakter-metall/armbagskontakt-i-aluminium-jck207/

Material mainAluminium
Material secondaryCopolymer
Designed inSweden
Manufactured inSweden
Weight Net (Kg)0.3

Classification

BIMobject CategoryDoors - Openers
IFC classificationDoor
ETIM CodeEC001351
ETIM NamePush button panel door communication
Uniclass 2015 CodePr_75_51_17_66
Uniclass 2015 DescriptionPush button switches
CSI MasterFormat 2014 Code40 78 19
CSI MasterFormat 2014 TitleSwitches and Push Buttons
OmniClass Number23-35 37 49
OmniClass TitlePush Button Switches
