Elbow switch - JCK 108

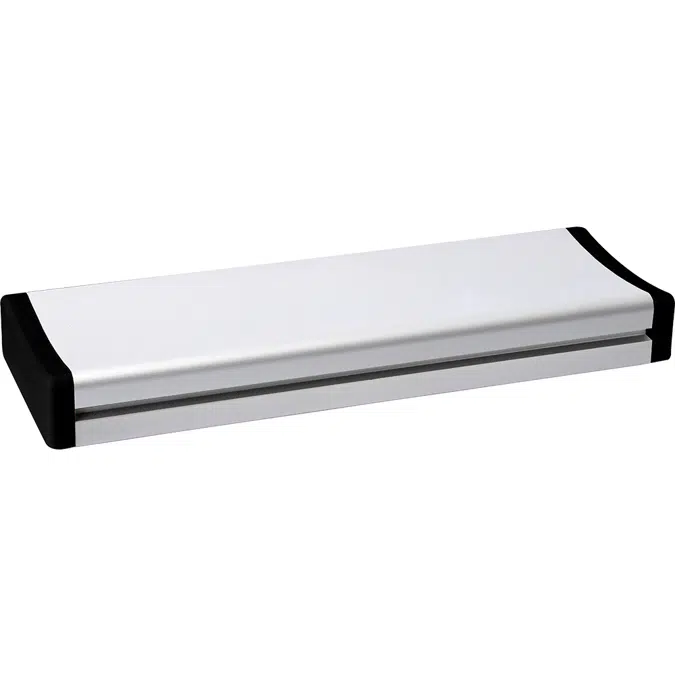

The JCK108 is an elbow-operated switch that is essential in the use of automatic door opening systems. It is made of an aluminum concave push plate with contrasting black end caps. It is especially suitable for demanding environments and it offers high resistance against vandalism.

JCK108 is supplied with two IP67-rated micro switches.

Specification

Manufactured in Sweden.
Material: Aluminum 6060-T6, POM (Acetal plastic).
Dimensions l/w/d: 245x80x28 mm.
Microswitch: Standard 2pcs. Normally Open IP67. It can be ordered with 2pcs. Normally Closed IP67.

Technical specification

Unique ref.elbow-switch-jck108
Product familyMetal
Product groupAluminum
TypeObject (single object)
Date of publishing2025-05-26
Edition number1
Height (mm)245
Width (mm)80
Depth (mm)28

Links

Product urlhttps://jckontakter.se/produkt/armbagskontakter-metall/armbagskontakt-i-aluminium-jck108/

Material mainAluminium
Material secondaryCopolymer
Designed inSweden
Manufactured inSweden
Weight Net (Kg)0.41

Classification

BIMobject CategoryDoors - Openers
IFC classificationDoor
ETIM CodeEC001351
ETIM NamePush button panel door communication
Uniclass 2015 CodePr_75_51_17_66
Uniclass 2015 DescriptionPush button switches
CSI MasterFormat 2014 Code40 78 19
CSI MasterFormat 2014 TitleSwitches and Push Buttons
OmniClass Number23-35 37 49
OmniClass TitlePush Button Switches
