Is Box

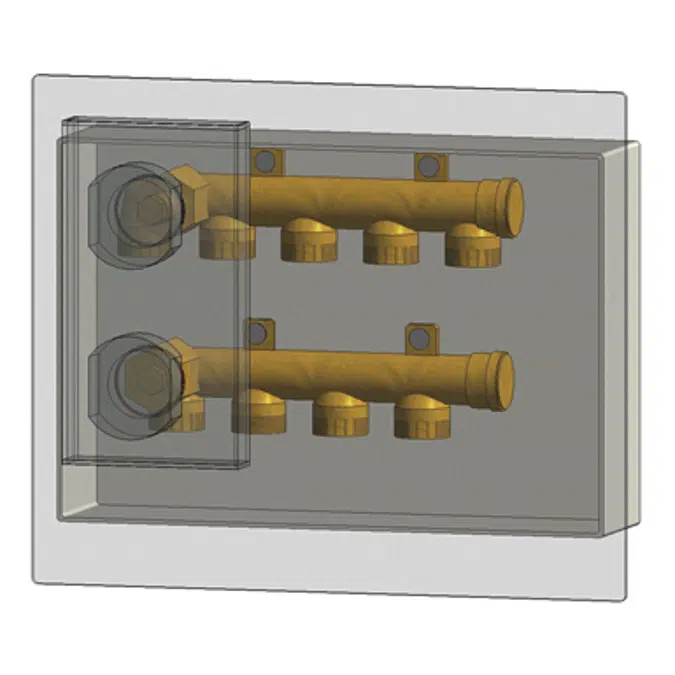

IS-BOX is a box with a pair of pre-installed 3+1 and 4+1 outlet sanitary manifolds, suitable for wall recessing even in bathrooms covered with tiles or valuable materials. The reduced size allows it to be installed in brick or plasterboard walls with a minimum thickness of 60 mm. The manifolds are compatible with drinking water and the inlets can be shut off by screw sealing valves and replaceable headworks. Available in two colours (white and chrome), also in the completely inspectable version.

Specification

IS-BOX is a box with pre-assembled sanitary manifolds, suitable for recessed installation. The manifolds for hot and cold water have 3 and 4 outlets respectively. The IS-BOX manifold fi ttings are 3/4’’ EK, with a spacing of 40 mm. Where appropriate, for each additional manifold, an additional outlet can be created by removing the caps from the fi tting on the right: in this case, the thread released is 1/2’’ F. The misalignment between the manifold gaps is 16.5 mm. The inlets to the two manifolds accept adduction tubes with a maximum diameter of 20 mm. KIT INCLUSIVE OF: - Domestic hot water manifold - Domestic cold water manifold - Screw-controlled interception valve - Threaded cap - Flush box 58 - 73 mm - Interception valve plastering protection - Plastering protection (serves as a cover in models that cannot be inspected) - Key for manual interception valve activation in the absence of knobs - Interception valve cover plate (perforated in models with knobs) - Visible cover for models that can be fully inspected - Chrome-plated knobs for interception valves - Disks and fastening screws CONDITIONS OF USE Maximum static operating pressure: 10 bar. Fluid in contact: drinking water. Maximum fl uid temperature: 100 °C. MATERIALS Manifold body: brass CW617N. Sealing elements: Peroxide EPDM. Screw-controlled interception valve stem, body and rod: brass CW617N. Key: PA + 30% FV. Protective box and cover: 40% talc-filled PP. Plate: ABS, white or chrome-plated. Front cover (for versions that can be inspected only): ABS, white or chrome-plated. INSTALLATION Prepare a cavity in the wall with the following dimensions: height H ≥ 182 mm, width W ≥ 268 mm; depth D ≥ 58 mm. MODELS AVAILABLE 1) IS-BOX 1 • Interception valves that can be inspected and activated using a special key; • Code 506592: RAL 9010 ; code 506592CR: chrome-plated 2) IS-BOX 2 • Box that can be fully inspected; • Interception valves that can be activated using a special key; • Code 506593: RAL 9010 ; code 506593CR: chrome-plated 3) IS-BOX 3 • Interception valves that can be inspected and activated using knobs; • Code 506594: RAL 9010 ; code 506594CR: chrome-plated 4) IS-BOX 4 • Box that can be fully inspected; • Interception valves that can be activated using knobs; • Code 506595: RAL 9010 ; code 506595CR: chrome-plated

Technical specification

Unique ref.IS-BOX
Product familySanitary System
Product groupIS·BOX
TypeObject (single object)
Date of publishing2018-07-02
Edition number1

Links

Product urlhttp://www.ivar-group.com/en/web/international/sanitary-manifolds-is-box/c-2410-2408
Installation instructionshttp://www.ivar-group.com/en/web/international/sanitary-manifolds-is-box/c-2410-2408
Product certificationhttp://www.ivar-group.com/en/web/international/sanitary-manifolds-is-box/c-2410-2408
Technical descriptionhttp://www.ivar-group.com/en/web/international/sanitary-manifolds-is-box/c-2410-2408

Material mainBrass
Material secondarySteel
Designed inItaly
Manufactured inItaly
