CTS 750 DOOR CLOSER

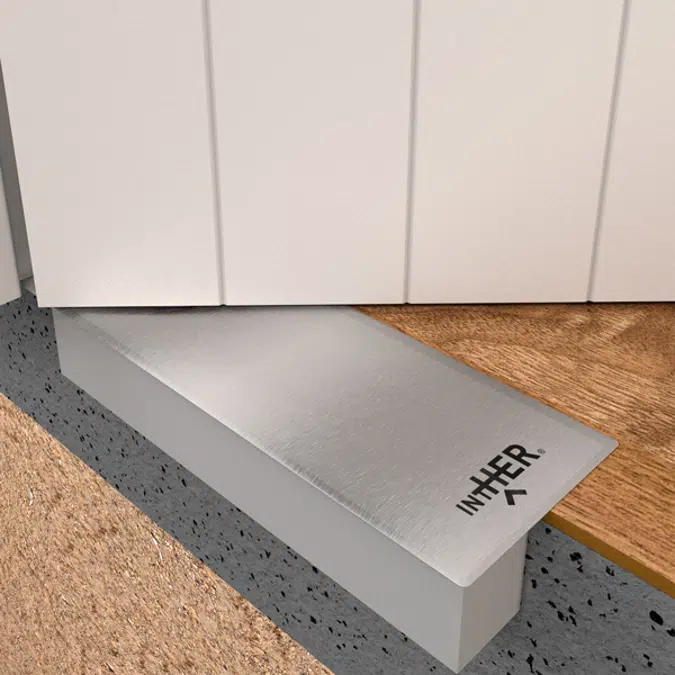

he Inther CTS 750 floor-mounted door closer for wooden doors weighing up to 300 kg, with a maximum opening angle of 180°. Available with a hold-open system and adjustable latching force and closing speed. It features adjustable force levels EN 3–6. This door closer model features an adjustable mechanism in a concealed housing and supports door leaf widths of up to 1400 mm and thicknesses of at least 40 mm. The CTS 750 is a very easy-to-install door closer, suitable for surface mounting on wooden doors. Available in one finish: Stainless Steel.

Specification

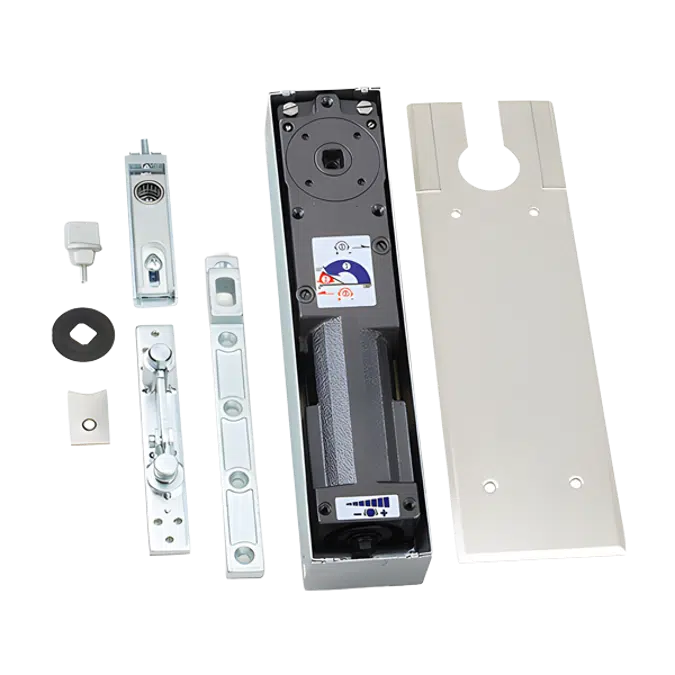

Hydraulic floor spring door closer, designed for wooden doors, suitable for door leaves up to 300 kg and 1400 mm width, with a maximum opening angle of 180°. It features a concealed adjustable mechanism housed within the floor box and a thermo-constant valve, ensuring stable and reliable performance under temperature variations.The closer provides adjustable closing force EN 3–6, with independent regulation of closing speed (180°–15°) and latching action (15°–0°). Available with hold-open function. Suitable for floor-mounted installation, specifically for heavy-duty wooden door applications, requiring a minimum door thickness of 40 mm. Available finish: Stainless Steel (Inox).

Technical specification
