Three way mixing valve

IMI Hydronic Engineering

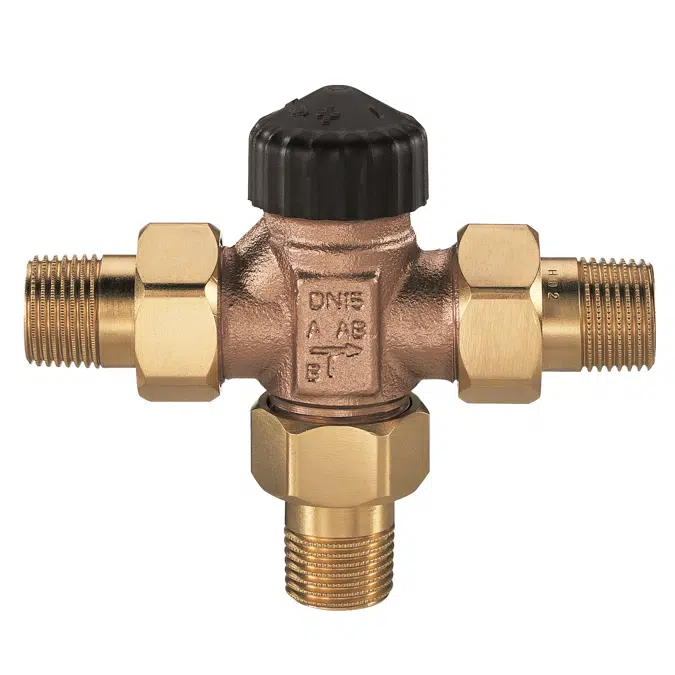

Three way mixing valve

Three-way mixing valve, for mixing volume flows in heating and cooling systems.

Technical specification

Unique ref.Three_way_mixing_valve
Product familyBalancing, control and actuators
Product groupControl valves
TypeObject (single object)
Date of publishing2024-06-05
Edition number1

Links

Installation instructionshttps://assets.imi-hydronic.com/Documents/Instructions/IMI_Heimeier/Low/3-way_mixing_valve_instruction.pdf
Technical descriptionhttps://assets.imi-hydronic.com/Documents/Catalogues/English_International/PDF_low/3-way_mixing_valve_EN_lq.pdf

Related

Material mainMetal
Material secondaryPlastic

Classification

BIMobject CategoryPlumbing - Valves
ETIM CodeEC011310
ETIM NameThree-way control valve
