JOY NEO SHOWER EXPOSED DUAL CONTROL WITH SHOWER SYSTEM AND CROSS HADLES

JOY NEO SHOWER EXPOSED DUAL CONTROL WITH SHOWER SYSTEM AND CROSS HADLES

JOY NEO SHOWER EXPOSED DUAL CONTROL WITH SHOWER SYSTEM AND CROSS HADLES

JOY NEO SHOWER EXPOSED DUAL CONTROL WITH SHOWER SYSTEM AND CROSS HADLES

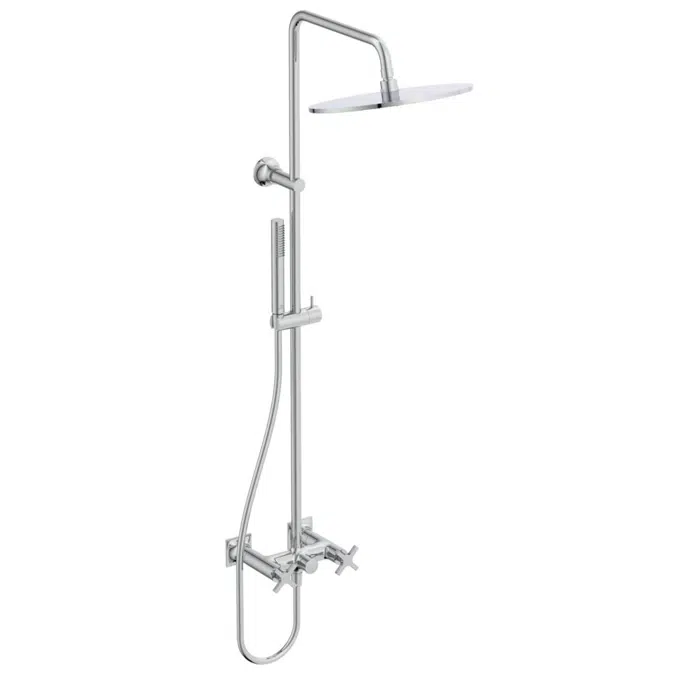

Joy Neo Shower mixer exposed Dual Control, with shower system, cross handles.

Specification

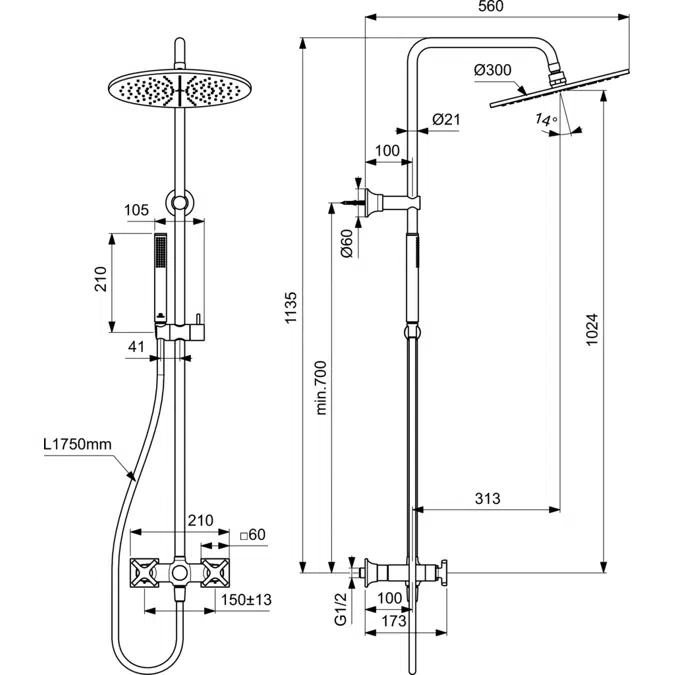

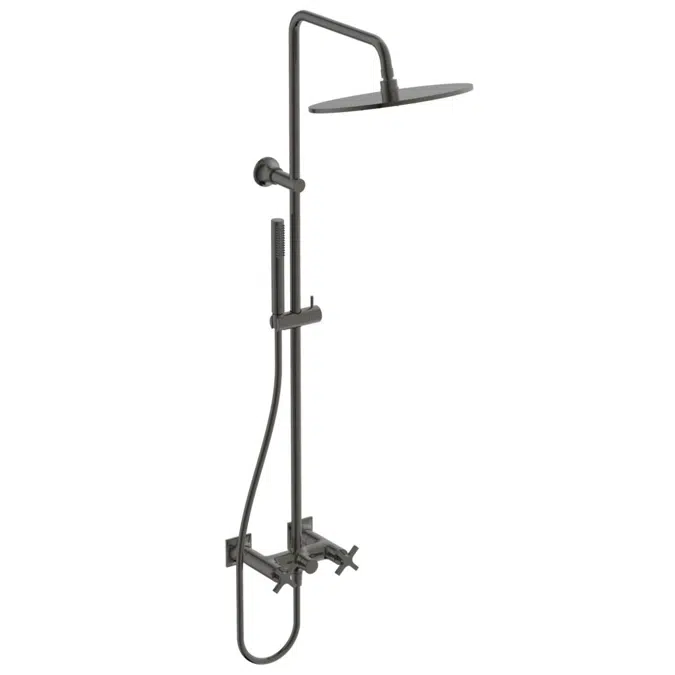

• New exposed B&S DC body with outlets to top + bottom, with rings logo IS. • 2 new metal cross handles without markings. (same as 3-hole basin) • On-off valves: clockwise and anti-clockwise (A956225NU + A956226NU) • 1-piece shower arm • New square metal wall escutcheons. • Fixation nuts. • S-connectors with noise reducers • Noise class 1 • Check valve • New diverter lever. • Manual diverter Ideal Standard • Shower system: o Shower tube. o Head shower round 300mm. (A5805A5) o Stick-handshower. (BC774A5) o Shower hose 1750mm. (A4109A5)• Available in two different finishes Chrome (AA) and Magnetic Grey (A5)

Technical specification

Unique ref.BD158
Product familyJoy Neo
Product groupTaps & Mixers
TypeObject (single object)
Date of publishing2022-02-24
Edition number1
Height (mm)90
Width (mm)320
Depth (mm)1108

Links

Product urlhttps://www.idealstandard.co.uk/products/catalog/taps-and-mixers/basin-mixer-taps
Installation instructionshttps://www.idealstandard.co.uk/products/catalog/taps-and-mixers/basin-mixer-taps
Instruction videohttps://www.youtube.com/channel/UCvNSaQtCSTKdF6hNa_Cs8eQ
Product certificationhttps://www.idealstandard.co.uk/about-us/contact-service
Technical descriptionhttps://www.idealstandard.co.uk/products/catalog/taps-and-mixers/basin-mixer-taps

Related

Material mainBrass
Weight Net (Kg)6.2

Classification

BIMobject CategorySanitary - Taps & Mixers
IFC classificationSanitary Terminal
ETIM CodeEC011329
ETIM NameShower mixing tap
UNSPSC nameSanitary ware
UNSPSC code301815
Uniclass 2015 CodePr_40_20_87_78
Uniclass 2015 DescriptionShower manual water supply sets
OmniClass Number23-31 11 00
OmniClass TitleFaucets

Region availability

Europe
Bulgaria
Czech Republic
France
Germany
Greece
Italy
Poland
Russia
