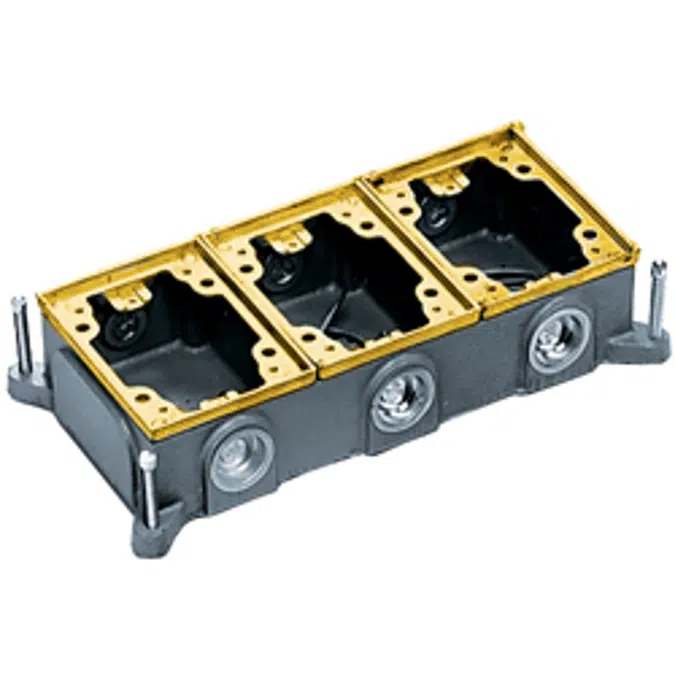

Rectangular Floor Box, Concrete, 3-Gang Shallow, Brass/Cast Iron

Hubbell Wiring Device-Kellems

Rectangular Floor Box, Concrete, 3-Gang Shallow, Brass/Cast Iron

B4314 -- Rectangular Floor Box, Concrete, 3-Gang Shallow, Brass/Cast Iron

Product Specifications:

Floor Box Application: Rectangular
Floor Box Item: Cast Iron Floor Box 3-Gang Shallow, Brass
Unit Package: Single
Order Quantity: Carton of 1

SPECIFICATIONS:

Material: Cast Iron
Min. Depth of Pour: 2.0" (50.8)
Adjustability: Semi
Cubic Inch (cm3) Capacity Per Gang: 16.0 cu. in. (262.2 cm3)
Dimensions A: 2.0" (50.8)
Dimensions B: 5.46" (138.7)
Dimensions C: 10.7" (271.8)
Dimensions D: 4.38" (111.3)
Dimensions E: 9.56" (242.8)
Threaded access holes: (6) 0.75"
Concrete Cover: Included
Closure Plugs: Included

Technical specification

Unique ref.systemone-b4314
Product familyFloor Boxes
Product groupFloor Box - Flush
TypeObject (single object)
Date of publishing2015-09-28
Edition number1
Height (inches)2
Width (inches)4.36
Depth (inches)3.2

Links

Product urlhttps://www.hubbell.com/wiringdevice-kellems/en/Products/Electrical-Electronic/Floor-Boxes/In-Floor/B2414/p/1531189
Installation instructionshttp://ecatalog.hubbell-wiring.com/productinformation/CustomerDrawingLibraryAssets/3A/3/PD1437.pdf
Technical descriptionhttp://ecatalog.hubbell-wiring.com/productinformation/specsheets/3A/Live/PDF/B2414_cart.pdf

Related

Material mainBrass
Material secondaryCast iron
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryElectrical - Distribution
IFC classificationElectric Distribution
UNSPSC nameElectrical boxes
UNSPSC code39121303

Region availability

North America
United States
