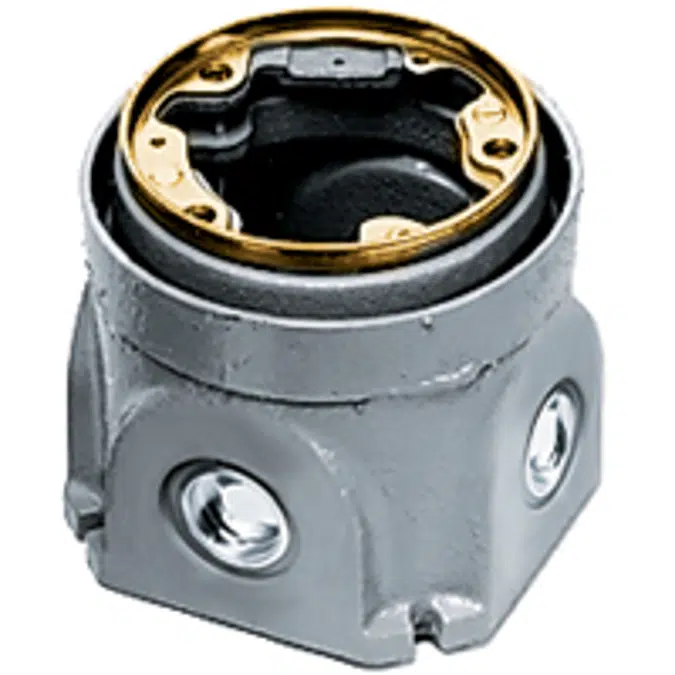

Round Floor Box, Single-Service Metal Concrete, Cast Iron/Brass, 36 cu. in.

Hubbell Wiring Device-Kellems

Round Floor Box, Single-Service Metal Concrete, Cast Iron/Brass, 36 cu. in.

B2503 -- Round Floor Box, Single-Service Metal Concrete, Cast Iron/Brass, 36 cu. in.

Hubbell round floor boxes are the all-around answer for a wide variety of installations and applications. Fully or semi-adjustable. Choose the materials, capacity and cover that’s right for your application.
Product Specifications:

Floor Box Application: Round Metal
Floor Box Item: Cast Iron Floor Box, Brass, 36 cu. in.
Unit Package: Single
Order Quantity: Carton of 1

SPECIFICATIONS:

Box Material: Cast Iron
Box Capacity: Full Size
Trim Ring Color: Brass
Box Depth: Deep
Box Adjustability: Full
Minimum Depth of Pour: 3.75" (95.3), 3.75"
Box Hubs/Knockouts: Standard
Dimension A: 4.19" (106.4)
Dimension B: 3.75" (95.3)
After Pour Adjustability: 0.63" (15.9)
Total Cubic Inch Capacity (cm3): 36.00 (589.9)
Threaded Conduit Hubs: 3/4" Four Way
Listings: UL Listed, CSA Certified
UPC Number:78358510070
Weight in LBs:4.55

Technical specification

Unique ref.systemone-b2503
Product familyFloor Boxes
Product groupFloor Box - Flush
TypeObject (single object)
Date of publishing2015-09-28
Edition number1
Height (inches)3.75
Width (inches)5

Links

Product urlhttps://www.hubbell.com/wiringdevice-kellems/en/Products/Electrical-Electronic/Floor-Boxes/In-Floor/B2503/p/1531204
Installation instructionshttp://ecatalog.hubbell-wiring.com/productinformation/CustomerDrawingLibraryAssets/3A/3/PD1437.pdf
Technical descriptionhttps://hubbellcdn.com/specsheet/WIRING_B2503_spec.pdf

Related

Material mainCast iron
Material secondaryBrass
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryElectrical - Distribution
IFC classificationElectric Distribution
UNSPSC nameElectrical boxes
UNSPSC code39121303

Region availability

North America
United States
