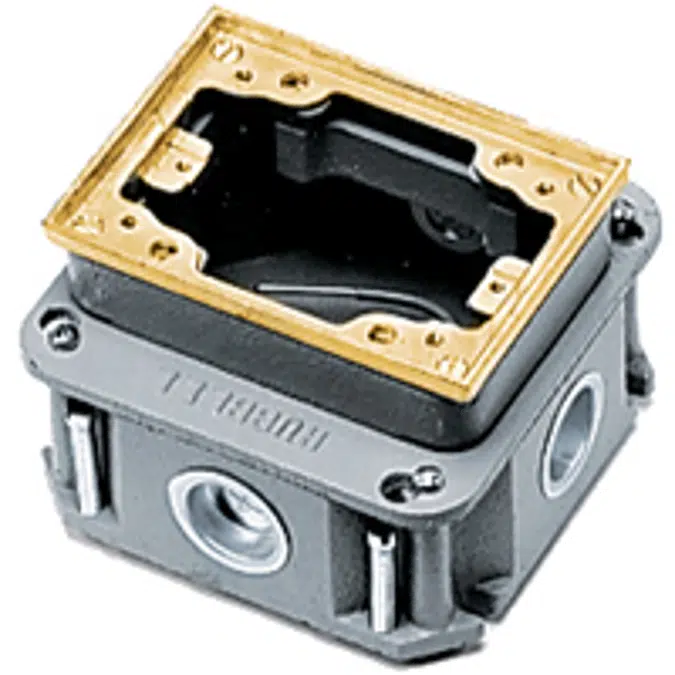

Rectangular Floor Box, Concrete, 1-Gang Deep, Brass/Cast Iron

Hubbell Wiring Device-Kellems

Rectangular Floor Box, Concrete, 1-Gang Deep, Brass/Cast Iron

B2436 -- Rectangular Floor Box, Concrete, 1-Gang Deep, Brass/Cast Iron

Product Specifications:

Floor Box Application: Rectangular
Floor Box Item: Cast Iron Floor Box 1-Gang Deep, Brass
Unit Package: Single
Order Quantity: Carton of 1

SPECIFICATIONS:

Material: Cast Iron
Min. Depth of Pour: 3.75" (95.3)
Adjustability: Full
Cubic Inch (cm3) Capacity Per Gang: 33.0 cu. in. (540.7 cm3)
Dimensions A: 3.20" (81.3)
Dimensions B: 4.69" (119.1)
Dimensions C: 4.69" (119.1)
Dimensions D: 4.36" (110.7)
Dimensions E: 3.19" (81.0)
Threaded access holes: (4) 0.75"
Concrete Cover: Included
Closure Plugs: Included

Technical specification

Unique ref.systemone-b2436
Product familyFloor Boxes
Product groupFloor Box - Flush
TypeObject (single object)
Date of publishing2015-09-28
Edition number1
Height (inches)3.15
Width (inches)4.69
Depth (inches)4.69

Links

Product urlhttps://www.hubbell.com/wiringdevice-kellems/en/Products/Electrical-Electronic/Floor-Boxes/In-Floor/B2436/p/1531198
Installation instructionshttp://ecatalog.hubbell-wiring.com/productinformation/CustomerDrawingLibraryAssets/3A/3/PD1437.pdf
Technical descriptionhttps://hubbellcdn.com/specsheet/WIRING_BA2436_spec.pdf

Related

Material mainBrass
Material secondaryCast iron
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryElectrical - Distribution
IFC classificationElectric Distribution
UNSPSC nameElectrical boxes
UNSPSC code39121303
CSI MasterFormat 2014 Code26 05 33.16
CSI MasterFormat 2014 TitleBoxes for Electrical Systems
OmniClass Number23-35 33 15
OmniClass TitleElectrical Junction Boxes

Region availability

North America
United States
