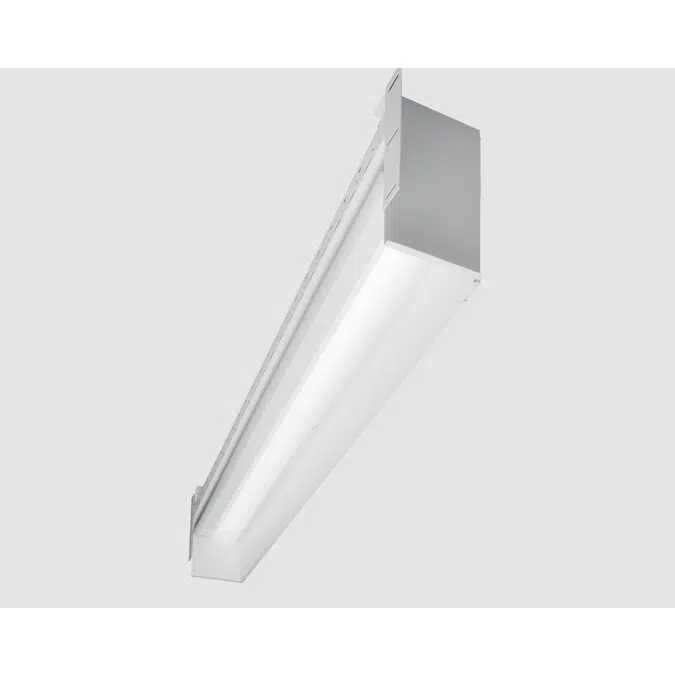

PX WASH PERIMETER WALL - WASH

PX WASH PERIMETER WALL - WASH

FEATURES

  • Subtly illuminate walls while providing low-glare ambient illumination
  • Sleek, linear design incorporates clean lines, slim styling, and a continuous row of light
  • Allows for 90° run connections in both inside and outside corner installs
  • Quick and easy installation with wall mounted bracket providing multiple pre- drilled screw locations and a quick hang feature for the fixture
  • Solutions for both grid and drywall ceilings
  • Adjustable extensions allow for a perfect fit to meet adjacent walls and create corners
  • Diffuse acrylic lens shields LEDs from view
  • Design spaces quickly with the Linear Product Builder
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Deliver scalable, data-driven smart buildings with PoE-enabled fixtures and controls
  • Support human-centric design with adaptive, individualized lighting using tunable white light
  • Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA
Specification
  • Housing

    Formed sheet metal and aluminum.

    Shielding

    Extruded diffuse acrylic lens.

    Finish

    Textured matte white polyester TGIC powder coat bonded to phosphate-free, multistage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

    Electrical

    High-quality mid-power LED boards. L70 >60,000 hours per IES TM-21. 25°C maximum ambient operating temperature.

    Mounting

    Wall mount rail, predrilled with wall screw locations, with quick hang feature.

    Listings

    • cCSAus certified as luminaire suitable for dry or damp locations.
    • DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL.
    • Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa.

    Warranty

    5-year limited warranty, see details
Technical specification
  • Unique ref.px-washperimeter-wallwash
  • Product familyIndoor Luminaires
  • Product groupLinear and Continuous
  • TypeObject (single object)
  • Date of publishing2026-02-27
  • Edition number1
Related
  • Material mainMetal
  • Material secondaryGlass
  • Designed inUnited States
  • Manufactured inUnited States
Classification
  • BIMobject CategoryLighting - Ceiling Mounted
  • IFC classificationLight Fixture
  • Uniclass 2015 CodeEF_70_80
  • Uniclass 2015 DescriptionLighting
  • CSI MasterFormat 2014 Code26 51 13
  • CSI MasterFormat 2014 TitleInterior Lighting Fixtures, Lamps, And Ballasts
  • OmniClass Number23-35 47 11
  • OmniClass TitleLighting Fixtures
