Flow600 heat recovery ventilator

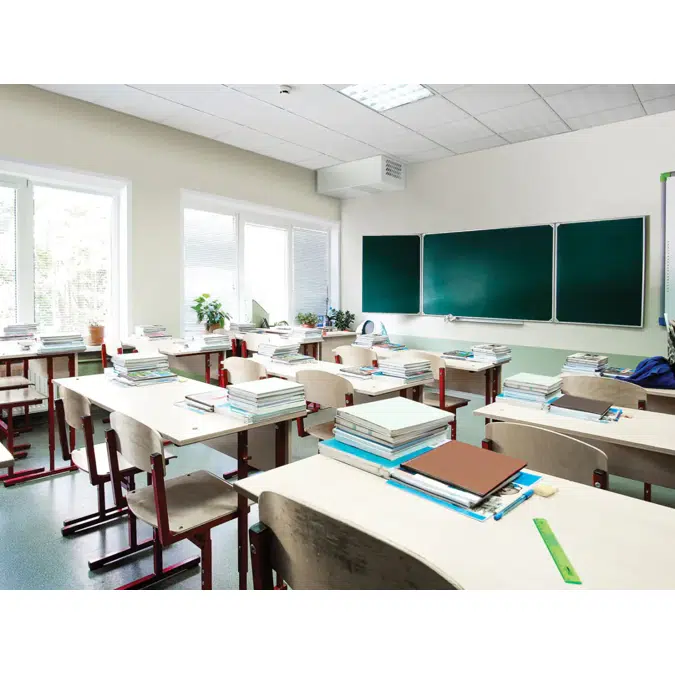

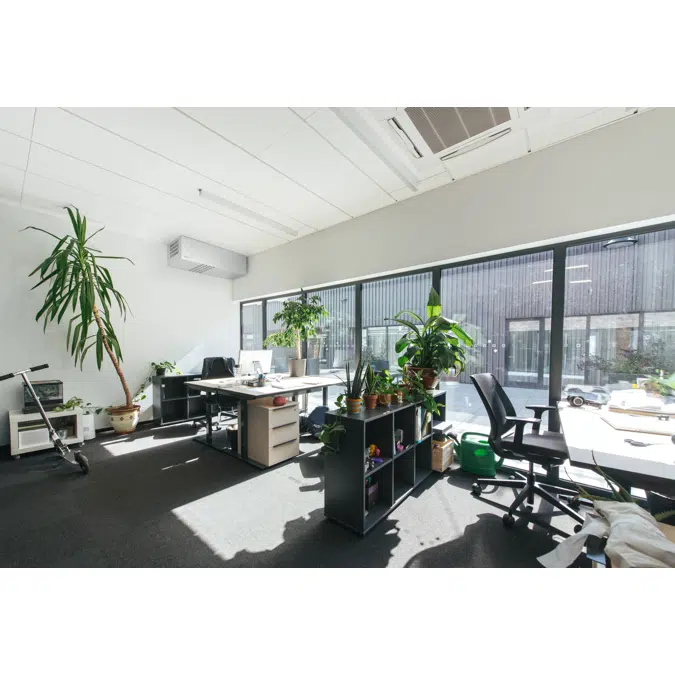

Ideal for installations in hospitality facilities, offices, schools and kindergartens, Flow600 Steel allows flexible modulation of the air renewal rate with air flow rates ranging from 250 m³/h (minimum speed) up to 600 m³/h (maximum speed in hyperventilation), with four intermediate air flow settings. This ensures maximum design flexibility for applications requiring high air change rates in medium- to high-occupancy environments. The unit is equipped with an enthalpy cross-flow heat exchanger, ensuring heat recovery efficiency of up to 82% and requiring no condensate drain. Excellent filtration performance is guaranteed by the Coarse 80% + ePM1 80% filter set, supplied as standard. Flow600 is natively integrated into a white-painted steel cover, complete with air supply and exhaust openings, allowing exposed installation without the need for additional aesthetic cladding. The unit can be installed ceiling-mounted or in a vertical wall-mounted configuration, using a dedicated duct-cover casing that allows management of air supply and exhaust connections on either the right or left side, to meet specific design requirements. Installation requires only two 200 mm core drillings on the perimeter wall, or alternatively four 100 mm openings. Thanks to the CO₂ and VOC sensors, Flow600 is able to monitor key parameters for occupant well-being, such as relative humidity, carbon dioxide levels and volatile organic compounds. By detecting values in real time, the HRV unit automatically adjusts the air renewal rate according to the actual needs of the ventilated environment.

Technical specification

Unique ref.Flow600
TypeObject (single object)
Date of publishing2026-02-09
Edition number1

Links

Product urlhttps://www.heltyair.com/en/products/community-hrv/flow-600/
Technical descriptionhttps://drive.google.com/file/d/1CH0DHe6R1e34lQhigR8ASkS3SNd0Q7fA/view?usp=drive_link

Designed inItaly
Manufactured inItaly

Classification

BIMobject CategoryHVAC - Heat Recovery
