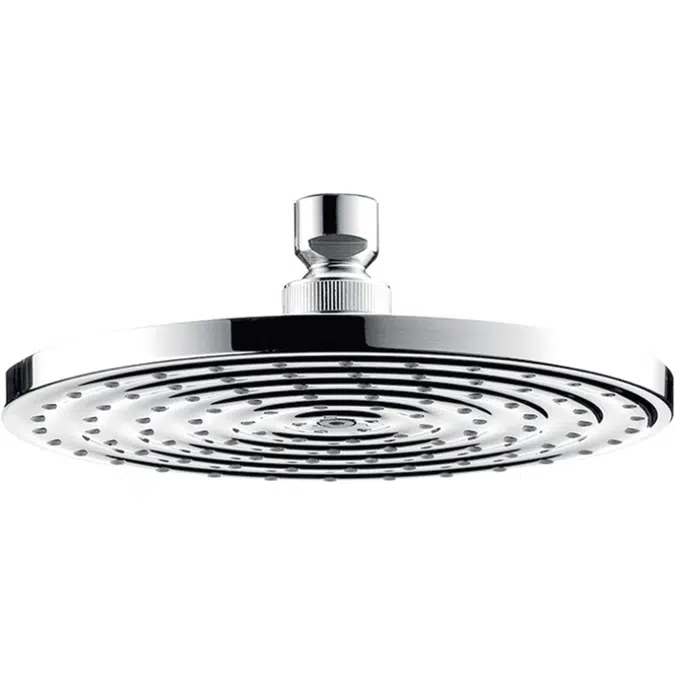

Raindance S Overhead shower 180 1jet Rain 2.5 GPM

Raindance S Overhead shower 180 1jet Rain 2.5 GPM

Raindance S Overhead shower 180 1jet Rain 2.5 GPM

Raindance S Overhead shower 180 1jet Rain 2.5 GPM

Specification

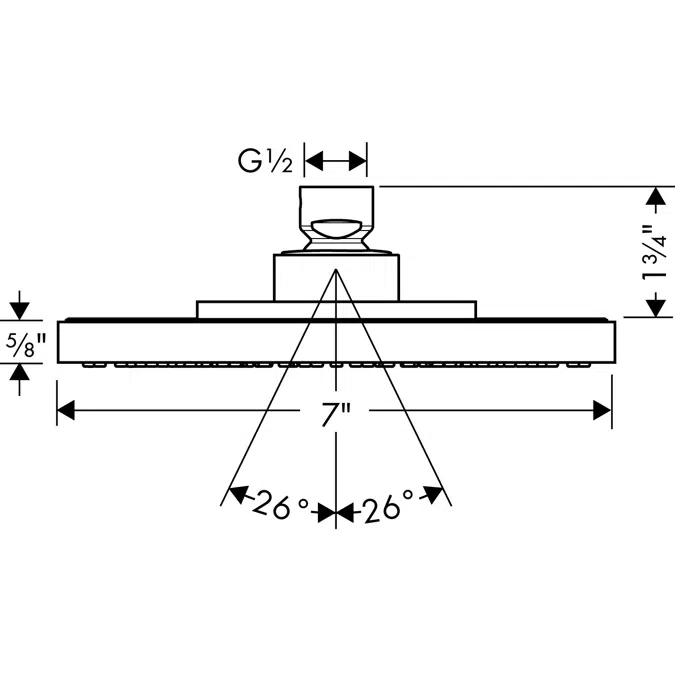

Surfaces: - 26922821 Brushed Nickel - 26922001 Chrome Specification: • shower head size: 180 mm • spray type: Rain • ball-joint: overhead shower angle adjustable • material spray disc: metal • fully finished matching spray face • maximum flow rate at 3 bar: 9,5 l/min • installation: ceiling or wall • connection thread NPT ½ • suitable for continous flow water heaters

Technical specification

Unique ref.26922USA
Product familyOverhead showers
Product groupRaindance S
TypeObject (single object)
Date of publishing2022-11-02
Edition number1
Height (mm)2.38
Width (mm)7
Depth (mm)7

Links

Product urlhttps://www.hansgrohe-usa.com/articledetail--26922821

Related

Material mainChrome
Designed inGermany
Manufactured inGermany
Weight Net (Kg)1.5

Classification

BIMobject CategorySanitary - Showers
IFC classificationSanitary Terminal
ETIM CodeEC011383
ETIM NameShower head
UNSPSC nameShowers
UNSPSC code30181503
Uniclass 2015 CodePr_40_20_87_76
Uniclass 2015 DescriptionShower heads
CSI MasterFormat 2014 Code22 41 23
CSI MasterFormat 2014 TitleResidential Showers
OmniClass Number23-31 17 00
OmniClass TitleShowers
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

North America
United States
