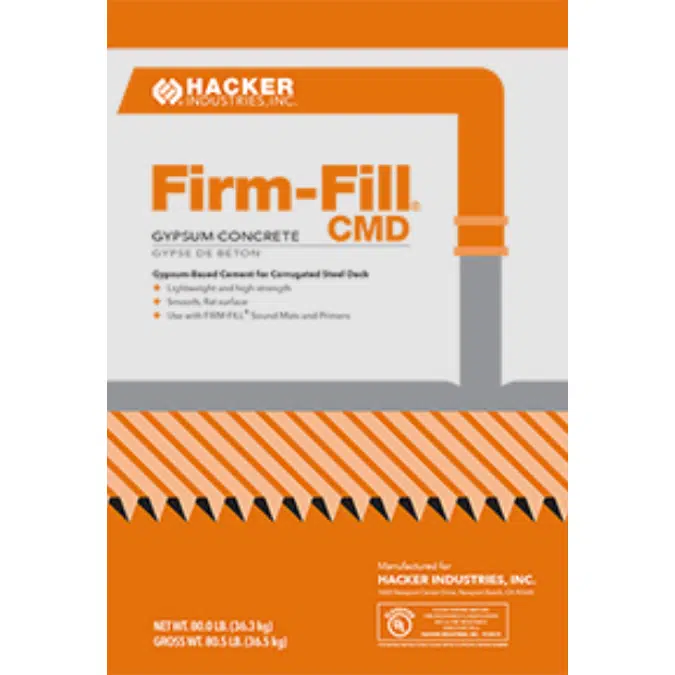

FIRM-FILL® CMD (Corrugated Metal Decking)

FIRM-FILL® CMD (Corrugated Metal Decking)

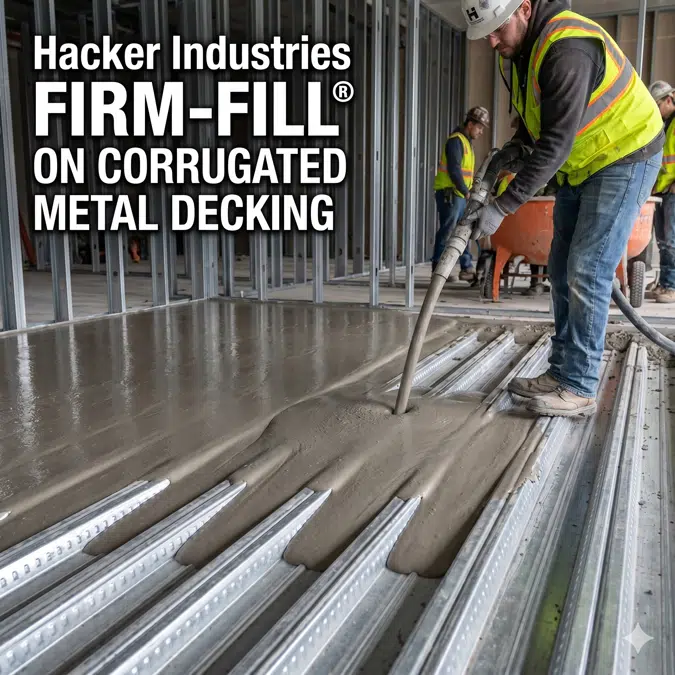

Designed for use in multi-family, commercial and institutional buildings with light-gauge steel framing and a corrugated steel deck, FIRM-FILL® CMD is a lightweight, high-strength gypsum concrete floor underlayment. Installed at 1" above the top of the flutes, FIRM-FILL® CMD reduces deadloads and thickness, significantly lowering costs.

Recommended For

  • Corrugated Metal Decking Application / Market: Multi-family, commercial projects, & industrial buildings

Features & Benefits

  • Lightweight solution for fast-track construction
  • Ideal for multi-family and mid-rise commercial applications
  • Economical solution to build higher, faster, and lighter
  • Creates a smooth, flat, rock-solid surface for the installation of finished floor coverings
  • UL listed for 1, 1-1/2, and 2-hour fire-resistance per UL G565, G568
  • Quick drying; can be walked on in 90 minutes
  • Expert application; installed only by trained, Licensed Applicators
Specification
  • Technical DataPropertiesASTM
    WeightMinimum 12.8 lbs/ft2 (62.47 kg/m2) at 1-9/16" (40mm)C472M
    Thickness1" (25mm) above the flutes
    Compressive StrengthMinimum 3500 psiC472M
    Fire Hazard ClassificationFlamespread index 0; Fuel Contribution 0; Smoke Density 0E84
    Patty Size8-1/2 (216mm) plus or minus 1/2” (13mm) in diameter
    Sand1/8" (3mm) or less washed plaster or masonry sandE11


Technical specification
  • Unique ref.firm-fill-cmd-corrugated-metal-decking
  • Product familyGypsum Cement Underlayment
  • Product groupCorrugated Metal Deck Underlayment
  • TypeObject (single object)
  • Date of publishing2026-03-02
  • Edition number1
Classification
  • BIMobject CategoryFlooring - Underlay
  • CSI MasterFormat 2014 Code03 54 13
  • CSI MasterFormat 2014 TitleGypsum Cement Underlayment
  • OmniClass Number23-15 17 11 13
  • OmniClass TitleFloor Underlayments
