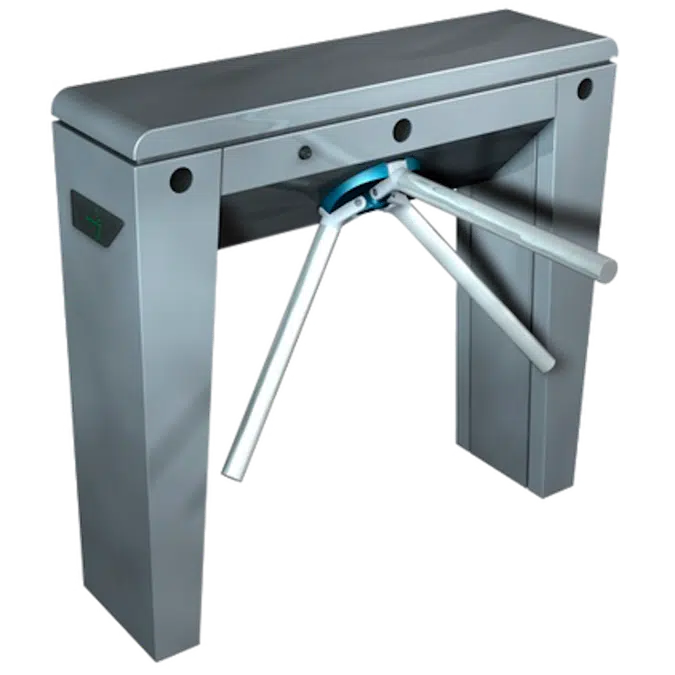

Tripod Turnstiles are compact and cost-effective entrance solutions designed for smooth and silent operation, less wear and tear and reduced power consumption, suitable for areas where there is a large flow of people.

SlimStile EV ATT (Alarmed Tripod Turnstile) offers the best security performance by means of a photocell and IR sensor alarming in case of unauthorised passage attempt.

The system can be further enhanced by a sensitive lid and extra photocells with the ITC functionality (Improper Transit Control). The ATT-ITC version avoids passage simulation and improves the overall performance for the detection of unauthorised passage detecting if someone tries to jump over or crawl under the tripod’s arms as well as if someone tries to climb over the cabinet. As option is also available a single person detection feature SPD.

* External installation allowed under canopy.

On receiving a signal from the access control system, or push button, this allows the passage of one person at a time. The status is shown on the LED way mode indicators, in entry and exit side. Passage in both directions is electronically controlled. The SlimStile EV ATT is available in Normally Closed (N/C) configuration to lock the mechanism until a valid authorisation signal is received, or in Normally Open (N/O) configuration to lock the mechanism in the event of attempted unauthorised entry. The N/O configuration also allows reduced power consumption and increases the life of the mechanism and passage throughput speed. In case of emergency, the hub freely rotates for an easier exit. The drop arm option can be chosen which automatically drops the horizontal arm to allow free passage. LED way mode indicators are included as standard.

Specification

Drive
Hand-operated
Materials
Casework: 304 grade grained stainless steel
Casework lid: 304 grade grained stainless steel
Tripod hub: Cast aluminium with painted grey finish
Tripod arms: 38mm diameter 480mm 304 polished
stainless steel
Mechanism
Electro-mechanical head mechanism:
• Positive locking action for one passage at a time
• Self-centering mechanism to ensure complete rotation
into the home position
• Hyrdraulic damper to ensure smooth operation
• Anti-backup device to prevent reverse rotation once the
mechanism has moved 60° from home
Power Failure / Fire Alarm
• Either one or both directions can be fail-safe (standard),
i.e. rotates freely, or fail lock, i.e. locks in the home
position
• Fire alarm - emergency input. Input facility available for
free voltage contact to effect fail-state
• Mechanism fail state will be the same as power failure
choice
• Drop arm option: the horizontal arm drops to create
passage for evacuation
Interface
LL2001Lite microprocessor control logic:
• One input for opening/locking in each direction
• Two protected outputs controlling opening/locking
• Four protected outputs piloting way mode indicators
• Two protected outputs counting passage in either
direction
• Two OV output relays indicating availability of use or
counting passage in either direction
• Two open collector NPN outputs to count passage or to
indicate availability of use in either direction or activate
the optional drop arm feature
• Four inputs for ATT & ITC features
• Serial Port - RS485
Models
• ATT
• ATT - ITC
Technical Data
Dimensions See details on next page
Power Supply 230Vac 50 Hz or 115Vac 60 Hz
Power Rating
50VA (stand by 5VA if Normally
Open)
Operating Temperature
-5 to +50 °C (RH 95% not
condensing)
IP rating / MCBF / MTTR
IP 32 / 10M cycles (12M if
Normally Open) / less than 30
min
Flow Rates (approximate figures):
Insertion Type Reader: 20
passages per minute
Swipe Type Reader: 30
passages per minute
Proximity Reader: “Hands Free”:
40 passages per minute

Technical specification

Unique ref.slimstile-ev-tripod-turnstile
Product familyTurnstiles
Product groupTripod Turnstile
TypeObject (single object)
Date of publishing2021-03-12
Edition number1
Height (mm)950
Width (mm)820

Links

Product urlhttps://www.gunneboentrancecontrol.com/products/turnstiles/tripod-turnstiles/slimstile-ev/

Material mainStainless steel
Designed inUnited Kingdom
Manufactured inItaly
Weight Net (Kg)50

Classification

BIMobject CategoryDoors - Security Doors
IFC classificationDoor
Uniclass 2015 CodeTE_70_40_70_90
Uniclass 2015 DescriptionTripods
CSI MasterFormat 2014 Code11 14 13.19
CSI MasterFormat 2014 TitleTurnstiles
OmniClass Number23-29 13 23 11
OmniClass TitleWaist Height Turnstiles
CSI UniFormat II CodeC1020
CSI UniFormat II TitleInterior Doors
