Fire resistant glazing F90

Grünbeck Fenster und Türen

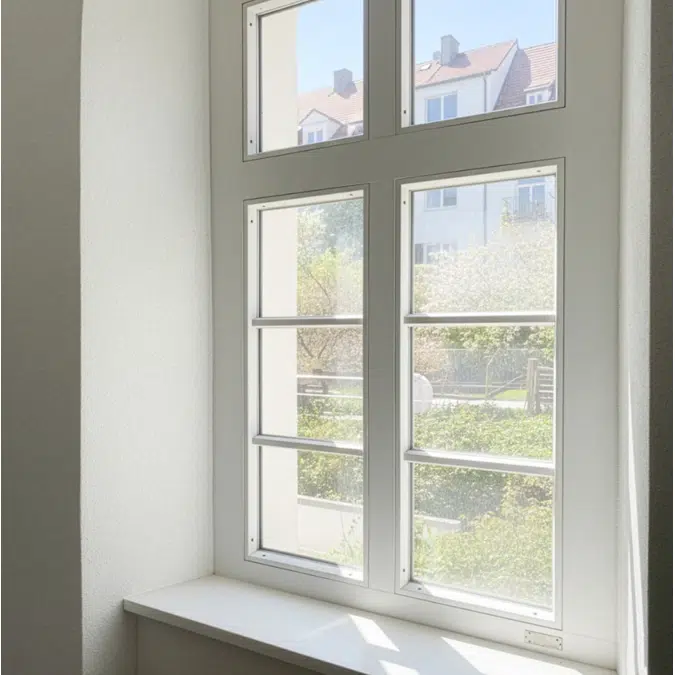

Fire resistant glazing F90

Certified fire-resistant window system for interior and exterior walls with 90 minutes of fire resistance (EI90), including thermal insulation and smoke protection (S200). The frame is made of pine, meranti, red grandis, or oak, with visible screwed glazing beads and V-joints at the sealed corners. Features: 140 mm frame depth, optional aluminum cladding, and fire-resistant glazing “Arnold-Fire F90 (ISO)” with safety glass (ESG/VSG).

Specification

- Thermal insulation Uw at Ug:0.6 W/m2K > Uw = 1.0 W/m2K
- Sound insulation: 42 dB
- Construction depth: 140 mm
- Max. glass dimensions: 1500 mm x 3000 mm or 3000 mm x 1500 mm
- DiBt approval: Z-19.14-2652
- Indoor and outdoor use

Technical specification

Unique ref.f90-fire-resistant-glazing
TypeObject (single object)
Date of publishing2026-02-02
Edition number1
Height (mm)3000
Width (mm)1500
Depth (mm)140

Links

Product urlhttps://www.gruenbeck-fenster.de/produkte/produktwelt-brandschutzhero-alt/?view=business#e293

Related

Material mainWood
Material secondaryGlass
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryFire Products - Fire Protection
IFC classificationWindow

Region availability

Europe
Austria
Germany
Switzerland
