VERTI 840SB - Depth 30.7 cm, Anthracite
VERTI 840SB - Depth 30.7 cm, Anthracite
    Granberg

    VERTI 840SB - Depth 30.7 cm, Anthracite

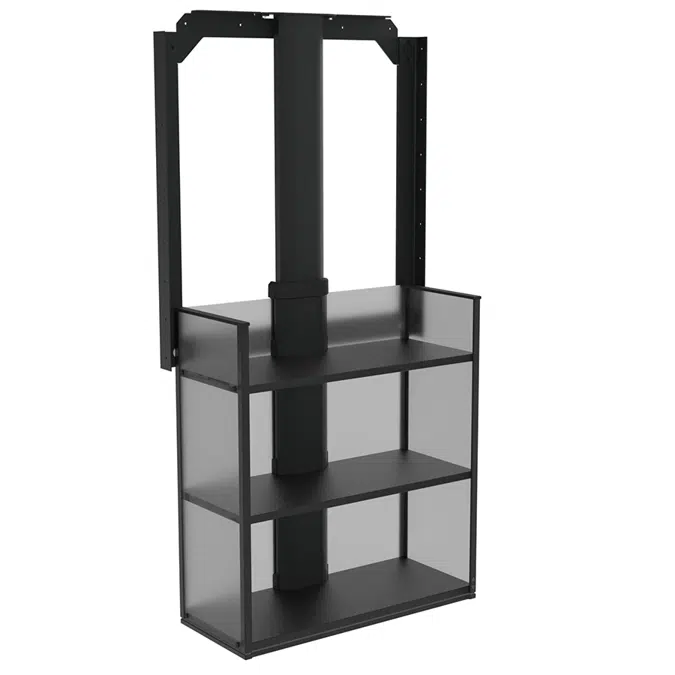

    VERTI 840 – Make Wall Cabinets Accessible at the Touch of a Button

    With the VERTI 840, you can easily reach everything in your wall cabinets – quickly, quietly, and without even opening the doors. The shelves lower smoothly down to the worktop, leaving free space in front for practical use.

    The compact design takes up minimal space and can be installed in both new and existing wall cabinets, without protruding from the wall.

    Light-permeable, fully enclosed sides and a reliable safety system ensure safe operation – with no risk of pinching.

    The VERTI 840 can be integrated into kitchens from any manufacturer, bringing both accessibility and style to your kitchen.

    Functions and Advantages
    • Lowers the shelf unit vertically down to the countertop
    • When lowered, there is free space on the worktop in front of the shelves
    • Installed in a new or existing cabinet from which the bottom has been removed
    • Safety plate stops the lowering if it comes in contact with any object on the underlying work surface
    • Fits cabinets with width 60 / 80 cm
    • Fits cabinet height 85 cm or higher
    Specification
    • Fits internal cabinet depth
      312 mm

      Type of lift
      Vertical lifting system for wall cabinets

      Operation
      Built-in control button on the right
      Additional control buttons can be purchased for easier access


      Height adjustment
      Motorised, steplessly adjustable 630 mm downwards


      Speed level
      41 mm/sec.

      Safety
      Safety plate under the bottom shelf. If anything touches the plate, the lift stops.


      Electrical connection
      Plug for 230 V, max 5A

      Lifting force
      60 kg

      IP-class
      IP20

      Height
      830 mm

      Fits cabinet width
      600 / 800 mm



      Fits cabinet height
      850 mm or higher (for heights above 850 mm, a fixed shelf is placed above the lift)

      Fits cabinet, side thickness
      16 - 20 mm

      Material

      Safety plate: 12 mm lacquered MDF, Grey NCS S 7502-G, Gloss 35
      Shelves: 19 mm melamine, Anthracite Kronospan MFC 164 PE
      Sides: Crylon Softone
      Aluminium and sheet metal parts:
      Powder-coated AkzoNobel SABLÉ BLACK, YW 359 F
      Plastic parts: Black RAL 9005

    Technical specification
    • Unique ref.m1127
    • Product familyAccessible Kitchens
    • Product groupLifting Systems for Wall Cabinets
    • TypeObject (single object)
    • Date of publishing2025-10-24
    • Edition number1
    Related
    • Material mainAluminium
    • Material secondaryMelamine
    • Designed inSweden
    • Manufactured inSweden
    Classification
    • BIMobject CategoryKitchen - Other Kitchen
    • IFC classificationObject
