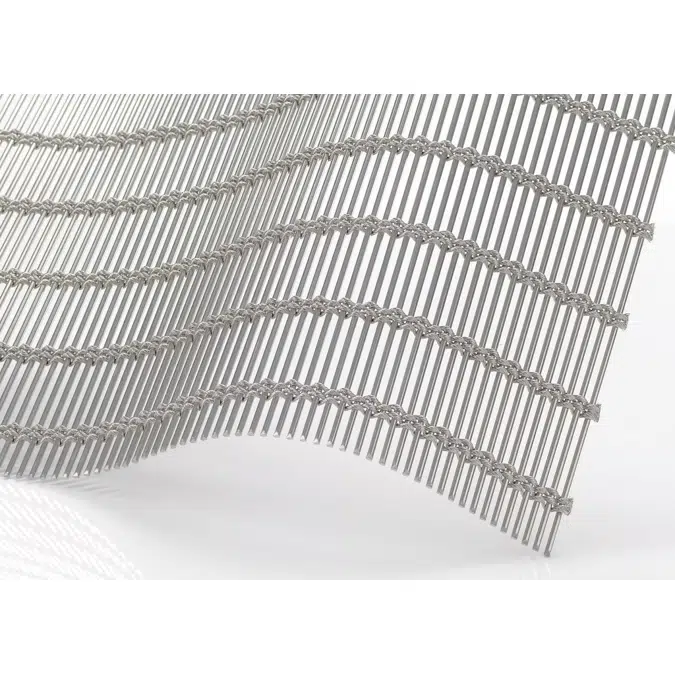

Material
Stainless Steel
Mesh type
Cabled Mesh

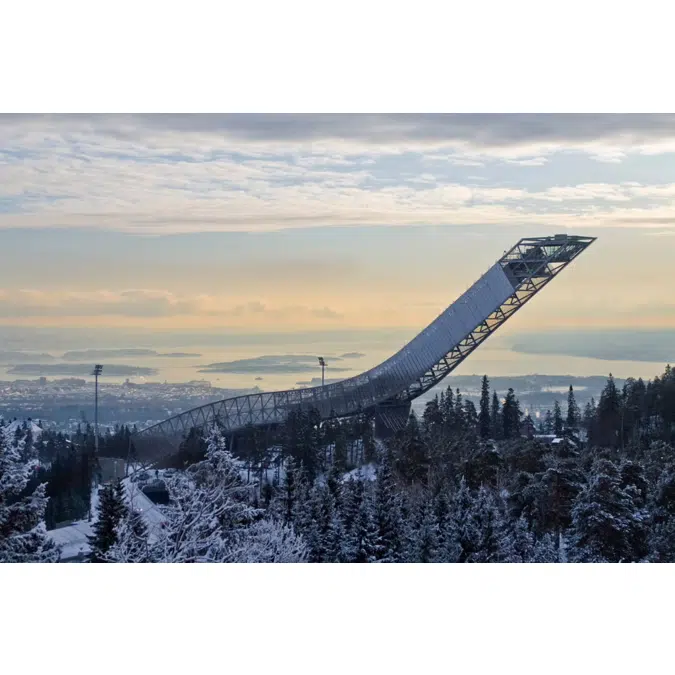

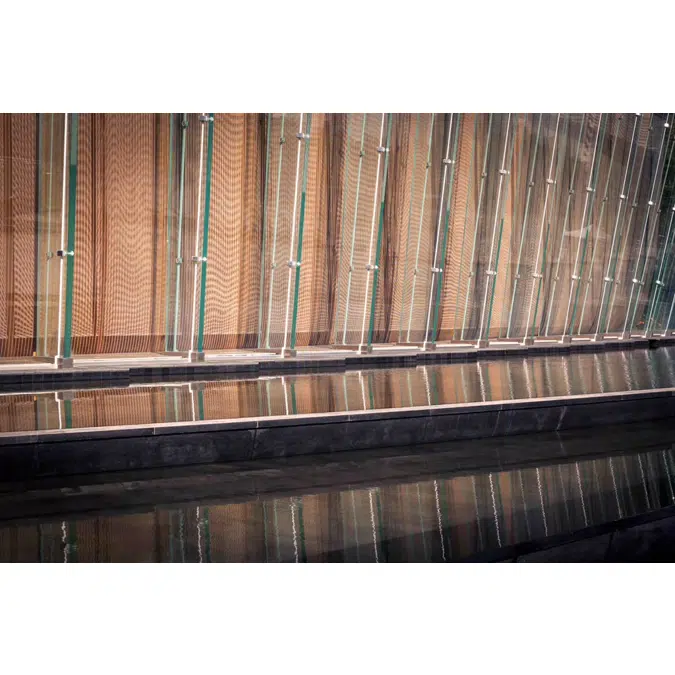

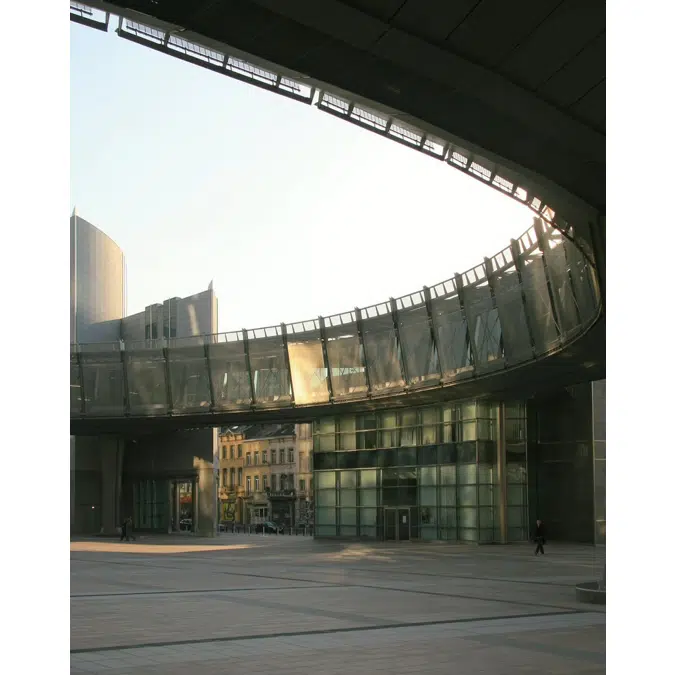

Applications
Facades, Roller shutters, Safety and security
Open area
42%
Werkstoff | Material | Matériau | Material
Edelstahl | Stainless steel | Acier inoxydable | Acero inoxidable
Kettseilgruppe | Cable group | Groupe de câbles | Grupo de cables
4 x ø 2 mm
Schussdraht | Weft wire | Tringle | Trama
ø 3 mm
Teilung Kettseilgruppe | Pitch cable group | Entraxe groupe de câbles | Paso grupo de cables
50 mm
Teilung Schussdraht | Weft wire pitch | Entraxe tringles | Paso trama
6 mm
Dicke Gesamtgewebe | Thickness | Epaisseur | Espesor
ca. 7 mm
Freie Fläche | Open area | Surface ouverte | Superficie abierta
ca. 42,00 %
Gewicht | Weight | Poids | Peso
ca. 11,0 kg/m2
Maximale Gewebeabmessung, mm | Maximum mesh dimensions | Dimensions maximales de la maille | Dimensiones máximas del tejido
a=35.000 | b=8.000
Standardbreite | Standard mesh width | Largeur standard | Ancho estándar
6.000mm
Solarfaktor | Solar factor | Facteur solaire | Factor solar
gtotal 0,32 | Fc 0,55
