Material
Stainless Steel
Mesh type

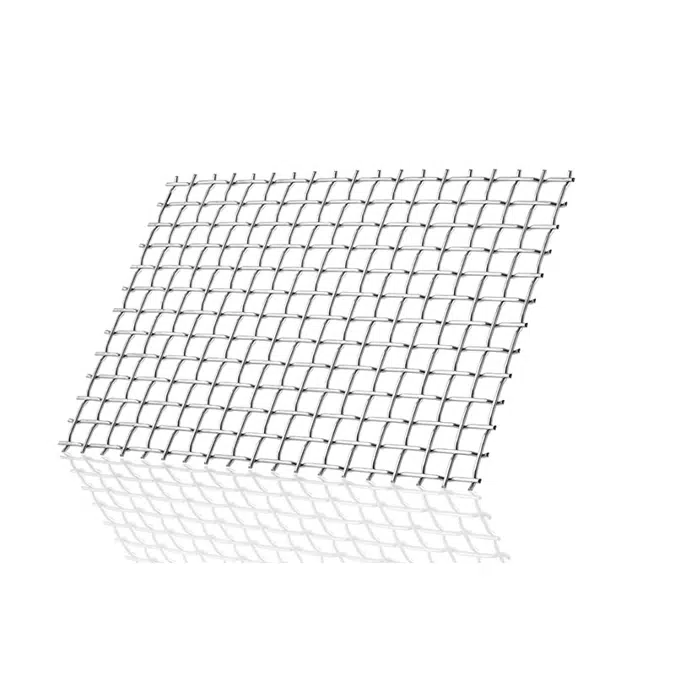

Crimped Mesh
Applications
Safety and security
Open area
72%
Werkstoff | Material | Matériau | Material
Edelstahl | Stainless steel | Acier inoxydable | Acero inoxidable
Kettdraht | Warp wire | Fil de chaîne | Urdimbre
ø 2,5 mm
Schussdraht | Weft wire | Tringle | Trama
ø 2,5 mm
Teilung Kettdraht | Warp wire pitch | Entraxe fils de chaîne | Paso urdimbre
15,6 mm
Teilung Schussdraht | Weft wire pitch | Entraxe tringles | Paso trama
15,6 mm
Dicke Gesamtgewebe | Thickness | Epaisseur | Espesor
ca. 4,8 mm
Freie Fläche | Open area | Surface ouverte | Superficie abierta
ca. 72,00 %
Gewicht | Weight | Poids | Peso
ca. 5,2 kg/m2
Maximale Gewebeabmessung, mm | Maximum mesh dimensions | Dimensions maximales de la maille | Dimensiones máximas del tejido
a=18.000 | b=4.000
