Material
Stainless Steel
Mesh type

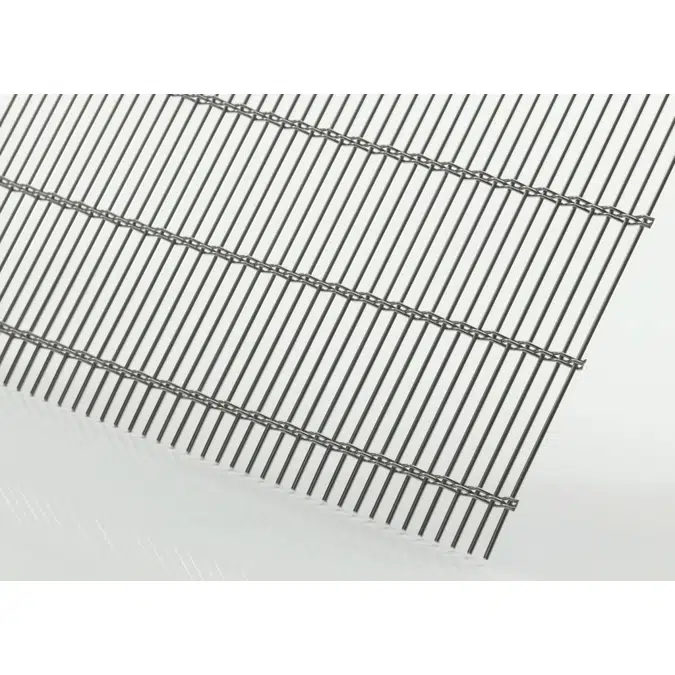

Crimped Mesh
Applications

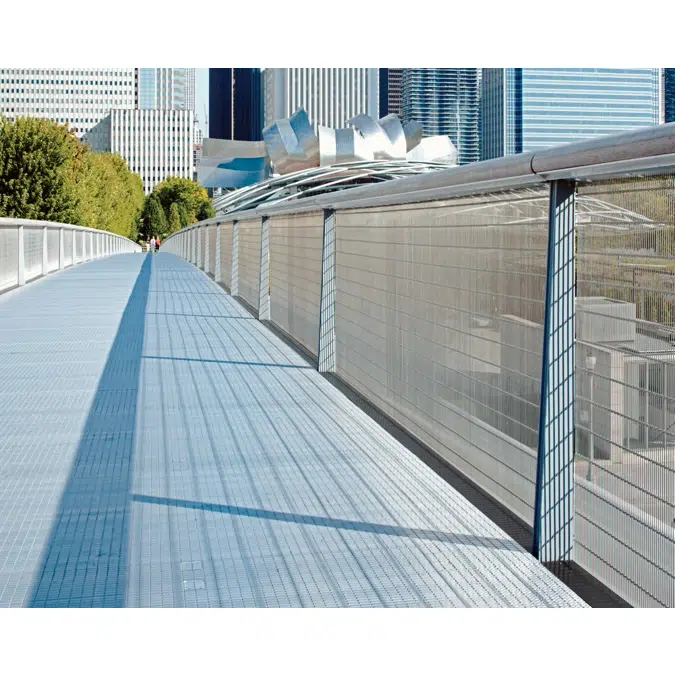

Safety and security
Open area
65%
Werkstoff | Material | Matériau | Material
Edelstahl | Stainless steel | Acier inoxydable | Acero inoxidable
Gerader Stab | Straight wire | Fil droit | Alambre recto
ø 3 mm
Gekröpfte Drahtgruppe | Crimped wire group | Groupe de fils ondulés | Grupo de varillas onduladas
3 x ø 2 mm
Teilung gerader Stab | Straight wire pitch | Entraxe fils droits | Paso varillas rectas
10 mm
Teilung gekröpfte Drahtgruppe | Crimped wire pitch | Entraxe fils ondulés | Paso hilos ondulados
80 mm
Dicke Gesamtgewebe | Thickness | Epaisseur | Espesor
ca. 7 mm
Freie Fläche | Open area | Surface ouverte | Superficie abierta
ca. 65,00 %
Gewicht | Weight | Poids | Peso
ca. 6,8 kg/m2
Maximale Gewebeabmessung, mm | Maximum mesh dimensions | Dimensions maximales de la maille | Dimensiones máximas del tejido
a=4.000 | b=18.000
Standard Gewebeabmessung, mm | Standard dimension | Dimension standard | Dimensiones estándares
a=2.500 | b=1.250
Solarfaktor | Solar factor | Facteur solaire | Factor solar
gtotal 0,46 | Fc 0,78
