Material
Stainless Steel

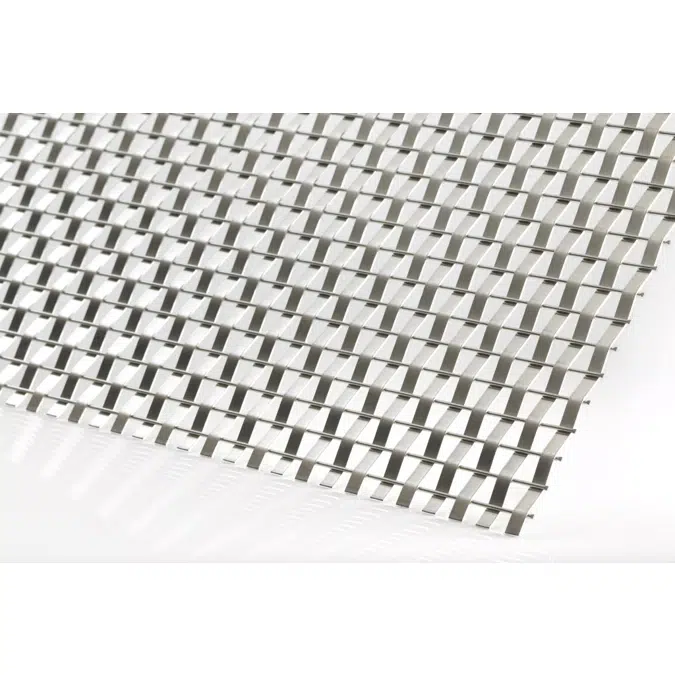

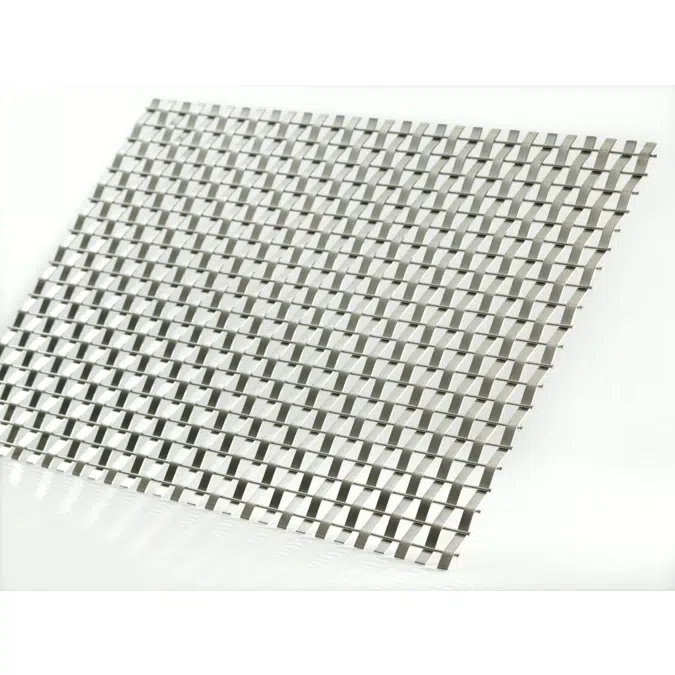

Mesh type
Crimped Mesh

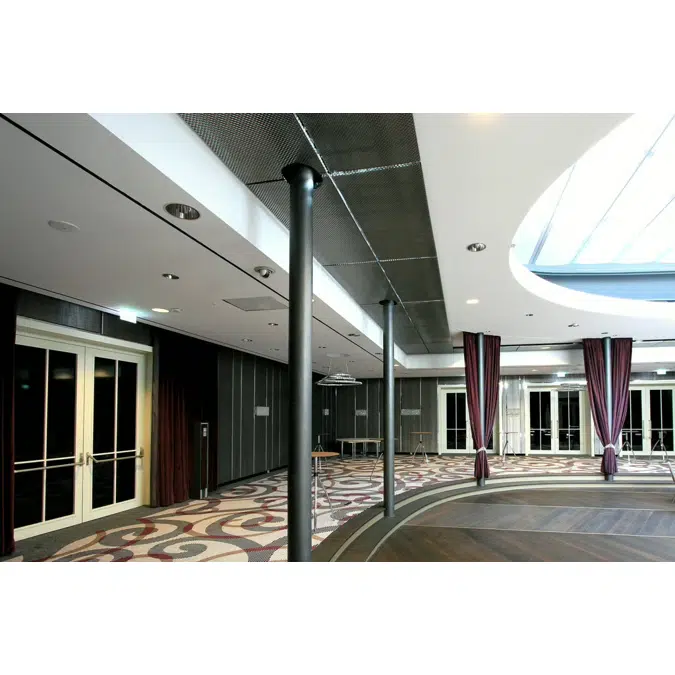

Applications
Interior design
Open area
43%
Werkstoff | Material | Matériau | Material
Edelstahl | Stainless steel | Acier inoxydable | Acero inoxidable
Kettdraht | Warp wire | Fil de chaîne | Urdimbre
7 x 1 mm
Schussdraht | Weft wire | Tringle | Trama
ø 2 mm
Teilung Kettdraht | Warp wire pitch | Entraxe fils de chaîne | Paso urdimbre
14 mm
Teilung Schussdraht | Weft wire pitch | Entraxe tringles | Paso trama
14 mm
Dicke Gesamtgewebe | Thickness | Epaisseur | Espesor
ca. 3,5 mm
Freie Fläche | Open area | Surface ouverte | Superficie abierta
ca. 43,00 %
Gewicht | Weight | Poids | Peso
ca. 6,0 kg/m2
Maximale Gewebeabmessung, mm | Maximum mesh dimensions | Dimensions maximales de la maille | Dimensiones máximas del tejido
a=25.000 | b=2.000
