Material
Stainless Steel

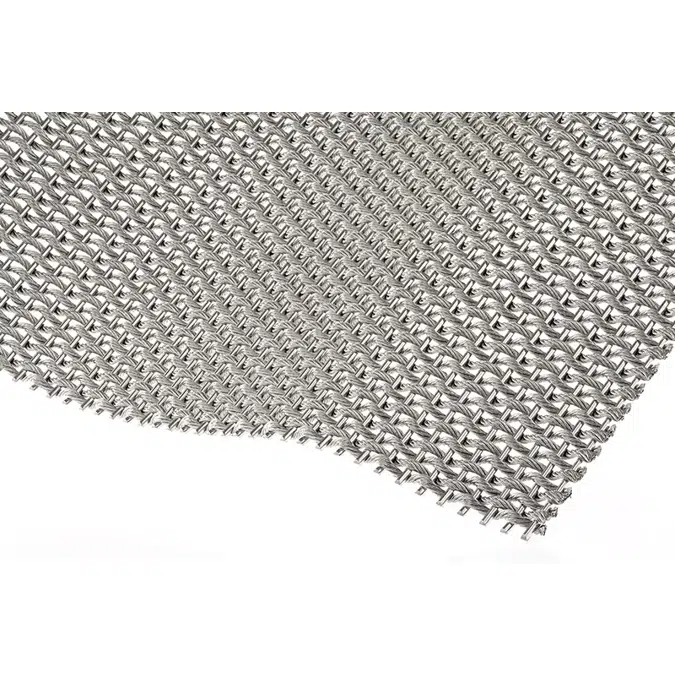

Mesh type
Cabled Mesh
Applications
Facades
Open area
21%
Werkstoff | Material | Matériau | Material
Edelstahl | Stainless steel | Acier inoxydable | Acero inoxidable
Kettseil | Cable | Câble | Cable
ø 3 mm
Schussdraht | Weft wire | Tringle | Trama
ø 3 mm
Teilung Kettseil | Cable pitch | Entraxe cables | Paso cables
5 mm
Teilung Schussdraht | Weft wire pitch | Entraxe tringles | Paso trama
10 mm
Dicke Gesamtgewebe | Thickness | Epaisseur | Espesor
ca. 7,5 mm
Freie Fläche | Open area | Surface ouverte | Superficie abierta
ca. 21,00 %
Gewicht | Weight | Poids | Peso
ca. 14,0 kg/m2
Maximale Gewebeabmessung, mm | Maximum mesh dimensions | Dimensions maximales de la maille | Dimensiones máximas del tejido
a=28.000 | b=6.000
Standardbreite, mm | Standard mesh width | Largeur standard | Ancho estándar
6.000
