Material
Stainless Steel
Mesh type

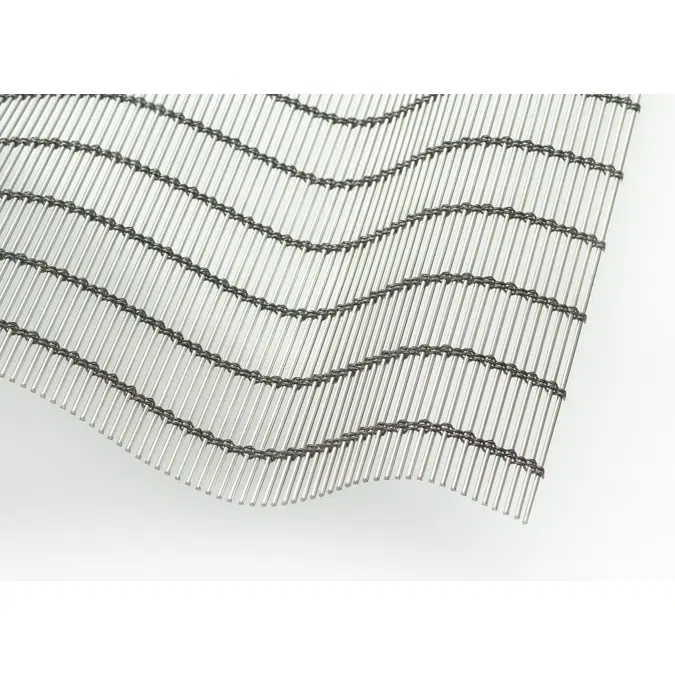

Cabled Mesh
Applications

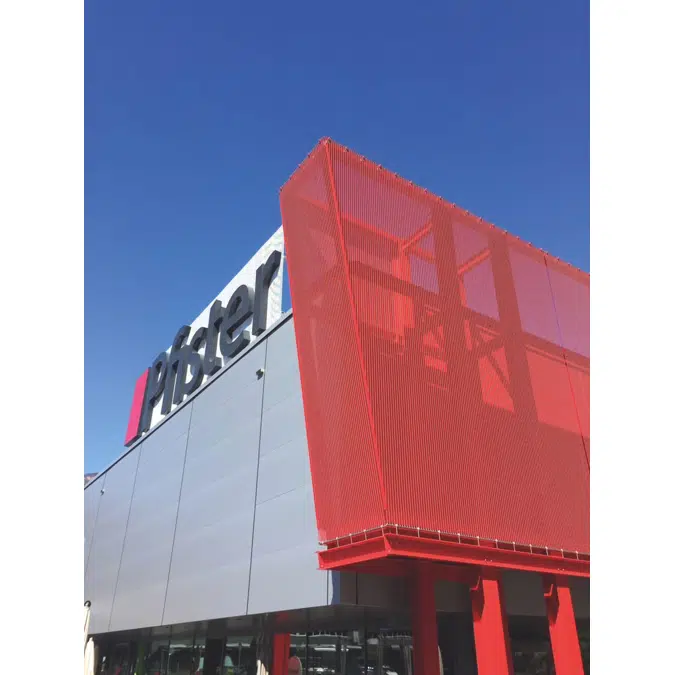

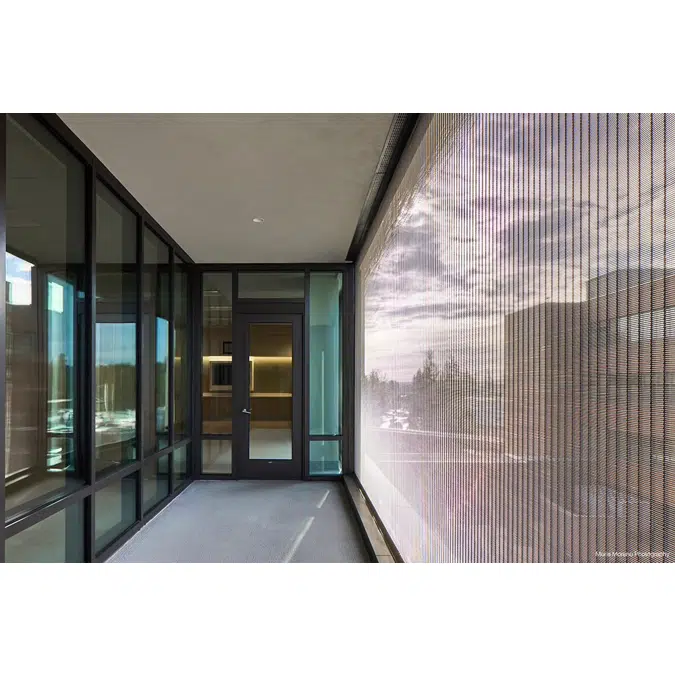

Facades, Roller shutters, Safety and security
Open area
44%
Werkstoff | Material | Matériau | Material
Edelstahl | Stainless steel | Acier inoxydable | Acero inoxidable
Kettseilgruppe | Cable group | Groupe de câbles | Grupo de cables
4 x ø 1 mm
Schussdraht | Weft wire | Tringle | Trama
ø 2 mm
Teilung Kettseilgruppe | Pitch cable group | Entraxe groupe de câbles | Paso grupo de cables
36 mm
Teilung Schussdraht | Weft wire pitch | Entraxe tringles | Paso trama
4 mm
Dicke Gesamtgewebe | Thickness | Epaisseur | Espesor
ca. 3,5 mm
Freie Fläche | Open area | Surface ouverte | Superficie abierta
ca. 44,00 %
Gewicht | Weight | Poids | Peso
ca. 6,9 kg/m2
Maximale Gewebeabmessung, mm | Maximum mesh dimensions | Dimensions maximales de la maille | Dimensiones máximas del tejido
a=40.000 | b=8.000
Standardbreite| Standard mesh width | Largeur standard | Ancho estándar
6.000mm
Solarfaktor | Solar factor | Facteur solaire | Factor solar
gtotal 0,38 | Fc 0,56
