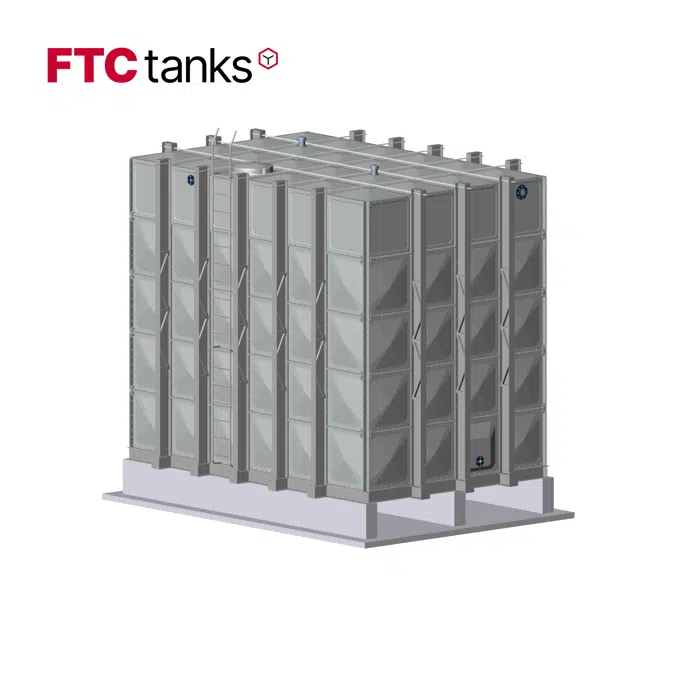

FRP Modular Water Storage Solution, 5m or 16.4ft High

FRP Modular Water Storage Solution, 5m or 16.4ft High

FTC FRP (Fiberglass Reinforced Polymer) atmospheric pressure tanks provide an innovative and reliable solution for diverse water storage needs. Engineered for flexibility and durability, FTC FRP tanks comply with industry-leading standards such as AWWA D121, NFPA 22, and NYC DOB OTCR1, Mass Approved, and are certified to NSF/ANSI 61 for potable water and NSF/ANSI 372 for lead-free components, making them the ideal choice for various applications.

Specification

Fiberglass Reinforced Polymer - FRP
Modular and maintenance-free
Capacities ranging from 264 to 3.3 million gallons
Height up to 6-meters (19.7 feet)
Tank dimensions increase in increments of 1/2 meters (1.64 feet)
Suitable for above-ground storage
Atmospheric pressure (vented tank)
40% Glass Content
UV stabilizer for durability
Field-built
Penetrations to be drilled on-site
Pre-insulated with 1 or 2-inch panels
Hardware: SS 316
No corrosion
No lining, No painting, No coating
Compartmentalized tanks
External or internal reinforcement
Applications: fire protection, RO water, grey water, potable water, domestic, chilled storage, wastewater, seawater, etc..
Stored Liquid Ph-level between 5 & 9 (non-aggressive)
Stored liquid temperature between 32 (non-freezing) & 140°F
Tank shipped Palletized & Crated to get through a 3-feet doorway
5-year warranty

Technical specification

Unique ref.frpmodularwaterstoragesolution-16-4ftHigh
Product family Storage Tanks
Product groupWater Storage Tanks
TypeObject (single object)
Date of publishing2025-05-30
Edition number1

Links

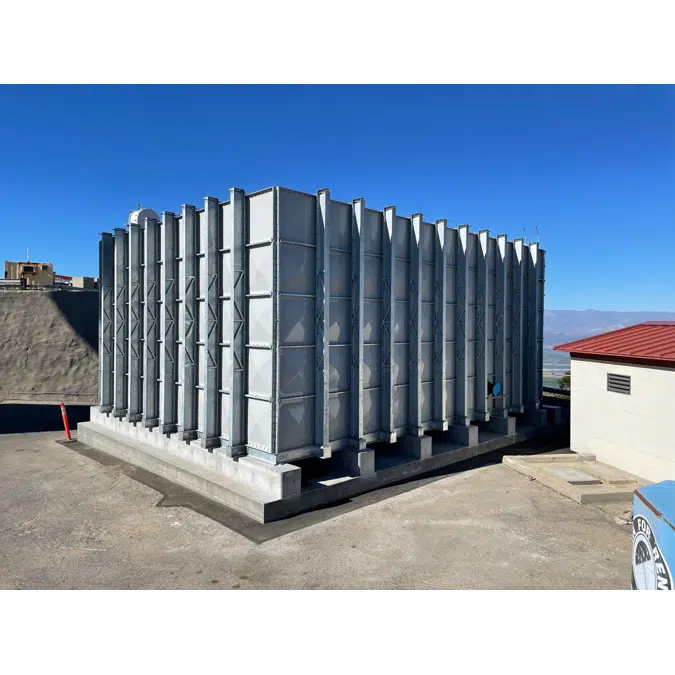

As builthttps://ftctanks.com/gallery/
Product urlhttps://ftctanks.com/product/
Technical descriptionhttps://ftctanks.com/wp-content/uploads/2024/10/FTC-Tanks-Technical-Brochure-2410.pdf

Material mainFibreglass reinforced polymer composite

Classification

BIMobject CategoryPlumbing - Other Plumbing
IFC classificationTank
