Insulated, Bi-Parting Cold Storage Door
Frank Door Company

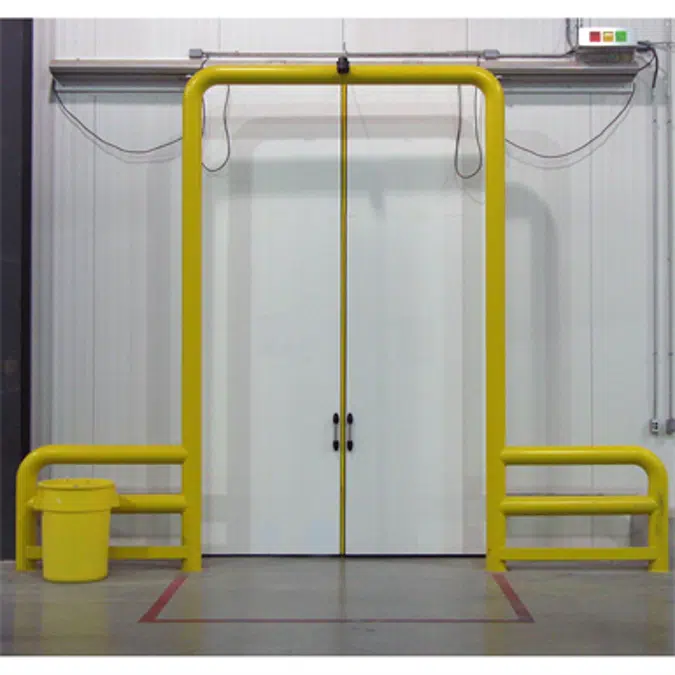

Insulated, Bi-Parting Cold Storage Door

The Bi-Parting Slide is a perfect fit for all types of cold storage coolers, freezers, warehouse and distribution centers when space is limited in back rooms, aisles or when excessive in-and-out traffic is expected. Bi-Parting doors are especially useful in areas where forklift traffic is expected.
The Bi-Parting door’s “down-and-in” motion completely seals the perimeter between the panel, casing frame, and floor. The panel sub-frame is extruded from aircraft grade aluminum and is reinforced by steel corner brackets for increased panel integrity. Clad with USDA approved face sheets, back-up blocking is used at all handle and lock attachment points. The panel structure is foamed-in-place with at least 4” of polyurethane insulation. All freezer doors are equipped with a full perimeter heater cable in both the door panel and casings.
  • Manual or automated operation
  • Visually pleasing
  • Closed hood design
  • Large diameter wheels
  • “Down and in” motion for a tight seal
  • Heavy-duty extruded aluminum sub-frame
  • Steel corner reinforcements
  • Foamed-in-place insulation
  • Bottom guide system eliminates stay rollers
  • Polycarbonate snubber with steel catch-hook
  • Adjustable bottom sweep
Specification

  • rank Door Company's DropTrac is constructed of heavy duty aircraft grade aluminum extrusions. Unique design advantages balance hygiene, style and performance in a package that can sustain years of use under the toughest conditions. Discover the DropTrac difference.

    • A closed hood design protects the system's elements from corrosive environmental conditions
    • Our closed hood design is visually pleasing and hides the chain and sprockets on a power-operated door
    • Our track is hygienic because there are no areas where water and bacteria can collect during washdown
    • Twin trolley assemblies distribute load for maximum stability
    • Trolleys feature large diameter wheels and sealed stainless steel bearings for smooth operation
    • "Down and In" to close maximizes seal. "Up and Out" to open minimizes gasket wear and tear
Technical specification
  • Unique ref.frankdoor-bpsd
  • Product familyCold Storage Doors
  • Product groupBi-Parting Doors
  • TypeObject (single object)
  • Date of publishing2013-06-07
  • Edition number1
Links
Classification
  • BIMobject CategoryDoors - Industrial
  • IFC classificationDoor
  • Uniclass 2015 CodeAc_15_50_25
  • Uniclass 2015 DescriptionDoors, windows and glazing surveying
  • CSI MasterFormat 2014 Code08 34 13
  • CSI MasterFormat 2014 TitleCold Storage Doors
  • OmniClass Number23-17 11 37 11
  • OmniClass TitleCold Storage Doors
  • CSI UniFormat II CodeC1020
  • CSI UniFormat II TitleInterior Doors
