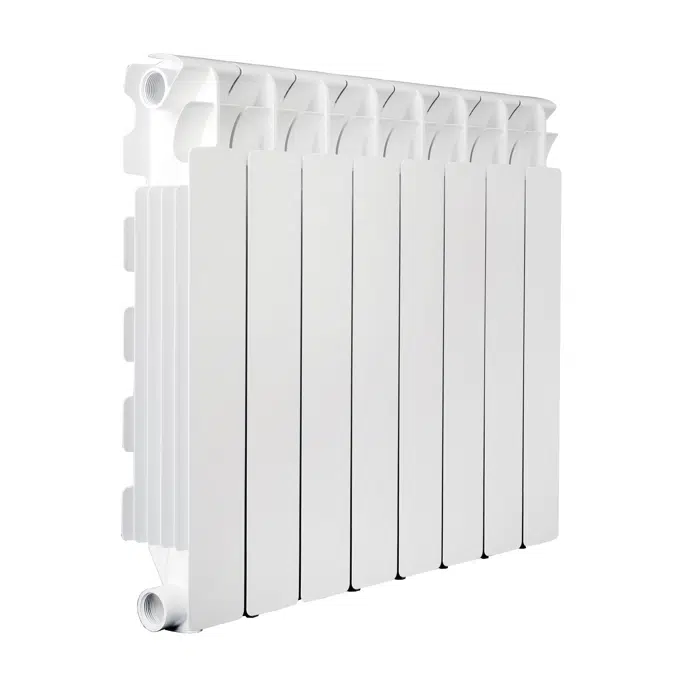

Aleternum B4 350 mm

The new anti-corrosion treatment Aleternum® of Fondital radiators guarantee protection against the most common causes of corrosion in common radiators.
Adavantages of ALETERNUM® B4:
1) TOTAL ANTI-CORROSION TREATMENT
2) IDEAL FOR A WIDE PH RANGE: FROM 5 TO 10
Conventional aluminium radiators require pH levels between 7 and 8, a higher or lower level can bring to the corrosion. Instead, steel radiators are subjects to corrosive attacks at pH levels below 8.
The new coating eliminates this limitation, allowing aluminium radiators with the Aleternum® treatment can be installed also in heating systems with a high PH level to protect iron elements (steel pipes and radiators). Moreover, in contrast with steel radiators Fondital radiators with the new treatment may be used in heating systems also with lower PH level.
3) LIGHTNESS AND HIGHER THERMAL EFFICIENCY AS RADIATORS WITHOUT TREATMENT

4) MAXIMUM BURST PRESSURE – OVER 60 BAR. PERFECT FOR INSTALLATION IN MULTI-LEVEL BUILDINGS
5) PROTECTED BY 4 INTERNATIONAL PATENTS

All models ALETERNUM B4 are guaranteed 20 years from installation date on manufacturing faults, provided that the installation has been performed in compliance with the current norms and respecting the instructions relating to the installation, the correct use and the correct maintenance.

Maximum working pressure: 1600 kpa (16 bar); Maximum working temperature: 120 °C
Characteristic equation of the model Ф=Кm ΔТn
The thermal efficiency values shown comply with the European Standard EN 442-1:2014 and are certified by the MRT Lab of the Milan Polytechnic, notified body №1695.

ALETERNUM® B4:
Bursting pressure: 60 bar;
Nominal pressure: 16 bar;
Pressure Test (undergone by 100% of manufactured products): 24 bar;
Higher thermal efficiency;
New radiator base joined by thermoelectric technology;
Energy saving;
Exclusive design completely studied in Italy;
20-year extended warranty;
Ideal for low temperature heating systems;
Excellent weight/power ratio;
Modular: perfect for any space;
High technological content: 4 international patents;
Unalterable over time, thanks to its double varnish coating: anaphoresis and powder;
100% made in Italy;
Anti-corrosive treatment Aleternum® as standard.
