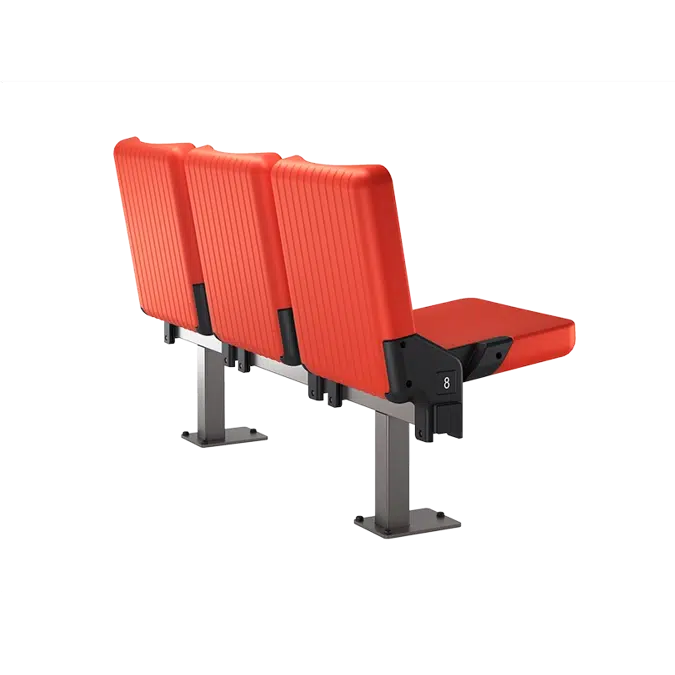

Kairos Seating

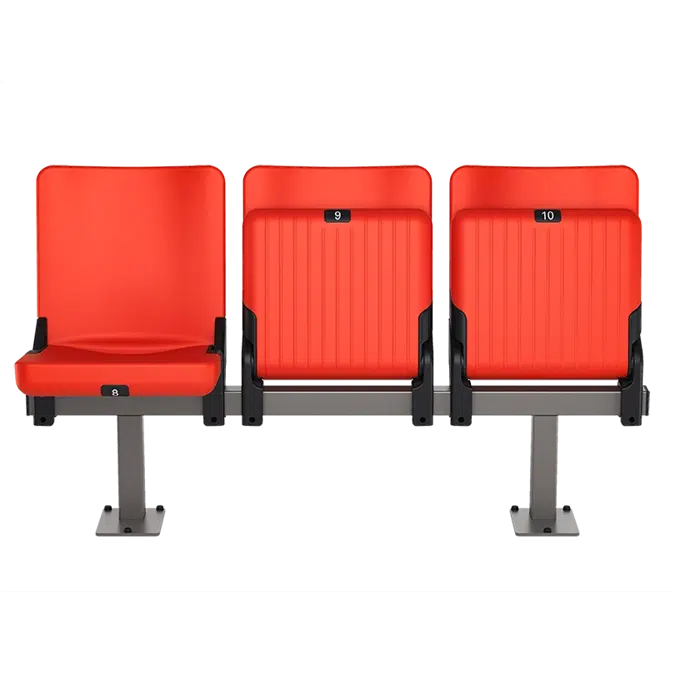

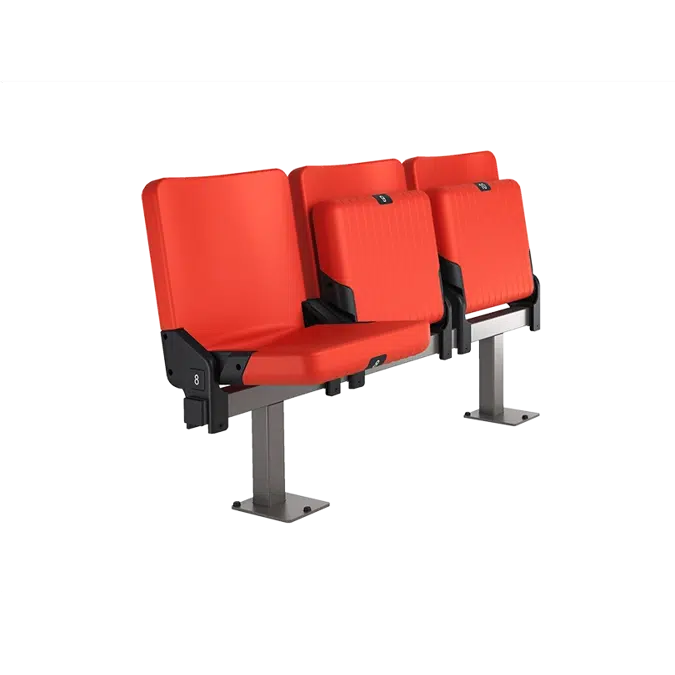

KAIROS is a tip-up stadium seat designed for arenas, stadiums and large sports venues with intensive use, where efficient, robust and durable seating solutions are required.

Made of two blow-moulded thermoplastic components with a double-wall structure and air chamber, it combines lightweight construction with high mechanical strength, ensuring reliable performance in high-capacity sports facilities.

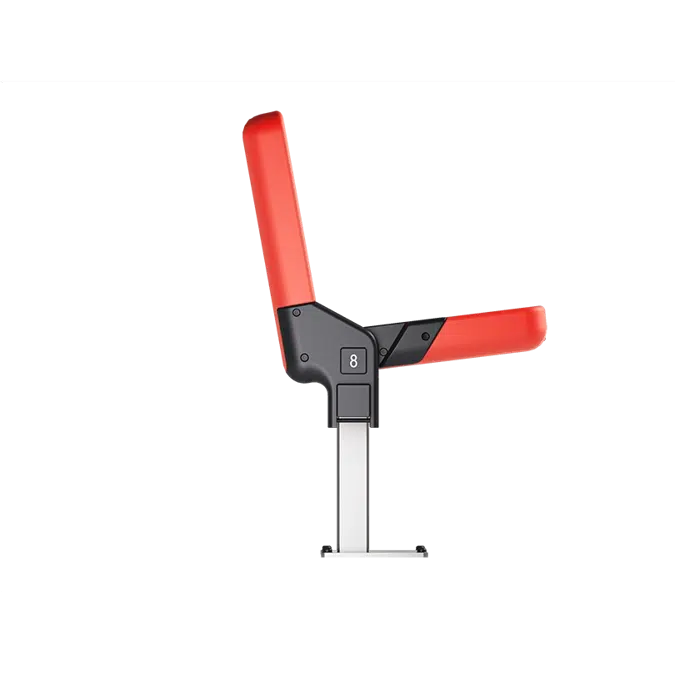

The tip-up system can optionally incorporate a soft and silent return mechanism (soft system), improving user comfort and reducing noise impact in high-density seating areas.

Developed in accordance with ISO 14006 EcoDesign principles, KAIROS incorporates recyclable materials and components with recycled content, optimising durability, maintenance requirements and environmental impact.

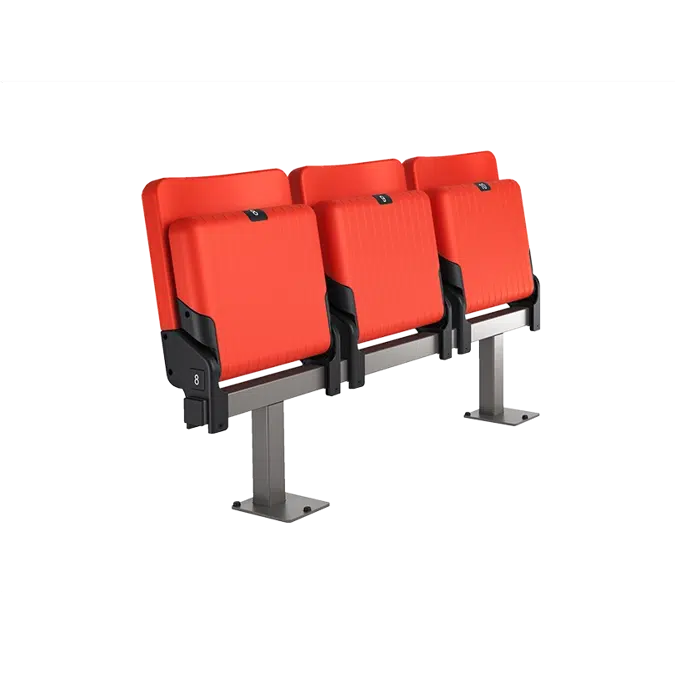

Its beam-mounted fixing system, using two M8 bolts, enables fast and precise installation with adjustable seat spacing. KAIROS is compatible with both fixed configurations and retractable seating systems, adapting to different grandstand layouts.

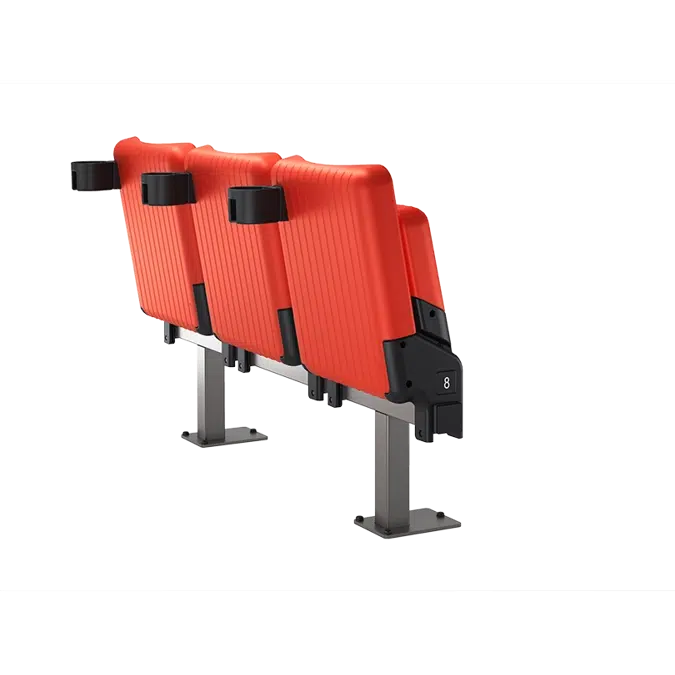

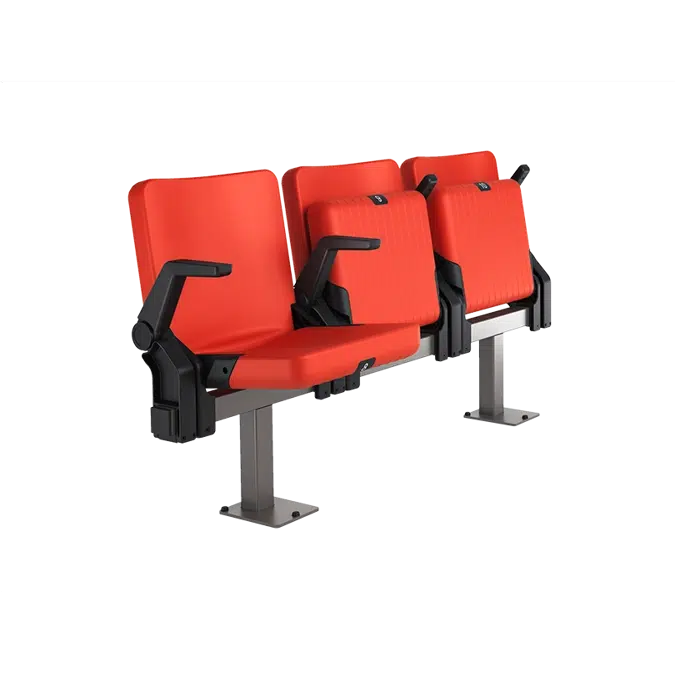

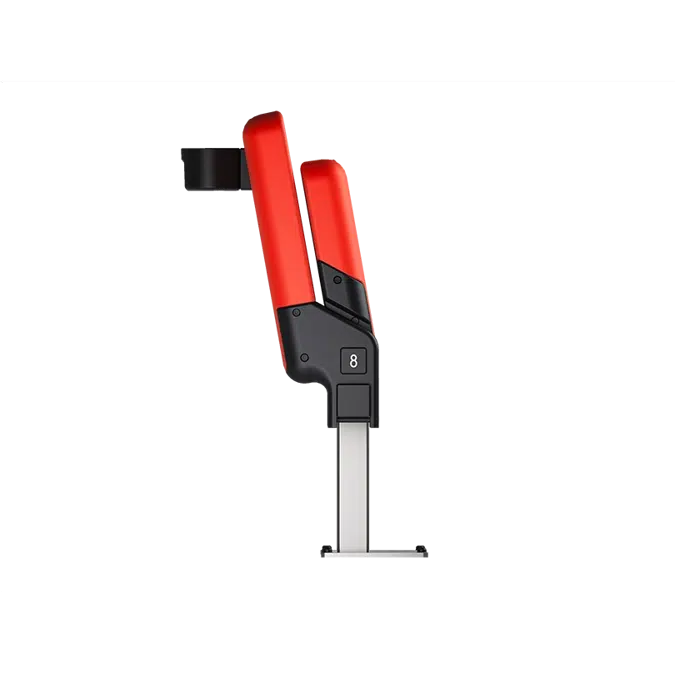

KAIROS offers a wide range of options and accessories—including anti-vandal seat and row numbering, armrests with integrated cup holders, rear cup holders, writing tablets and interchangeable clip-on upholstery—allowing the solution to be customised without adding complexity to the project.

It is particularly suitable for stadiums and sports venues where cost control, operational reliability and spectator experience must be maintained at scale.

Technical data and Dimensions

• Minimum centre-to-centre distance: 480 mm (18.9″)
• Recommended centre-to-centre distance: 500 mm (19.7″)

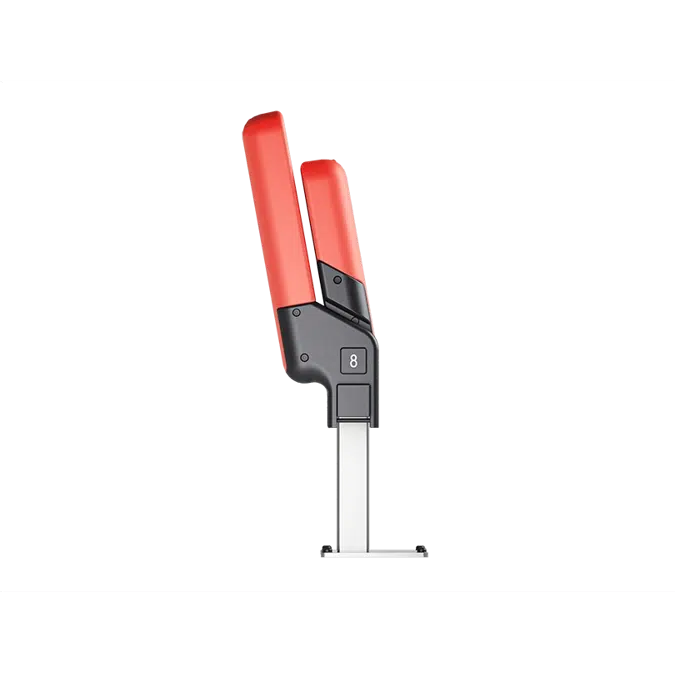

• Depth: 260 mm (10.2″), folded position
• Overall height: 830 mm (32.7″)
• Seat made of blow-moulded thermoplastic with a double-wall structure and air chamber for enhanced robustness
• Suitable for indoor and outdoor installations

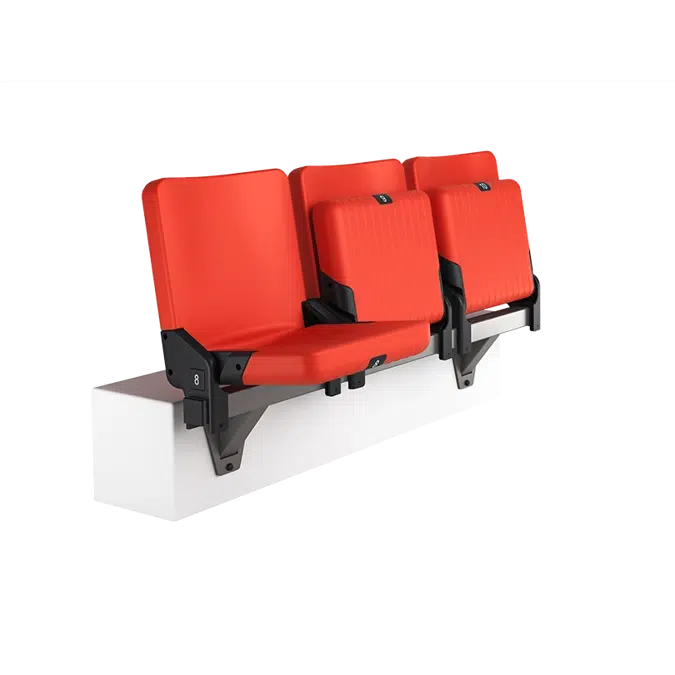

• Floor-mounted on beam, riser-mounted, or compatible with Figueras’ telescopic seating system
• Adjustable positioning when installed on beam
• No finger traps
• Maintenance-free
