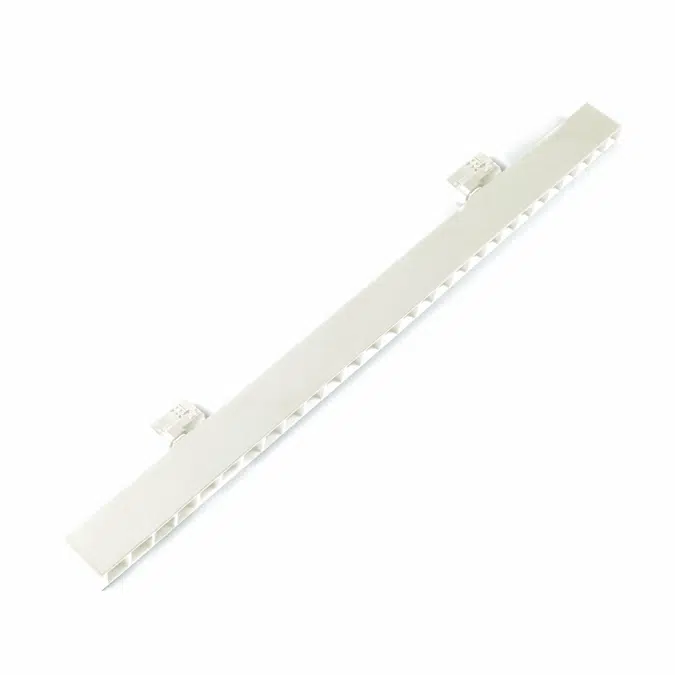

VIA EVO TRACK 1130 surface white UGR<16 3000K 50° DALI

Collection designed to generally illuminate any project. VIA EVO TRACK allows the creation of continuous lines of light, with the accessory Ref.040000097 (not included), or build different formats using luminaires or corner accessories. VIA EVO TRACK 50° is a white surface-mounted luminaire with a length of 1130 mm and a color temperature of 3000K. Its UGR<16 makes it a perfect alternative for office applications. It also has a DALI control system.

Specification

Reference: 0410T1101D5
Catalogue: Architectural
EAN: 8421776340879
Tariff Item: 9405119090
Clase ETIM - ETIM 9.0: EC002892
MERCADO GLOBAL: Si
MERCADO 110: No
ERP applies?: Yes
ERP registration number: 1184660
Fixing: Wall
Serie: 0411
Body material: Aluminium+PC
Body finish: White
Light Source Energy Class: C
Light Source Code: WU-M-684-B-LV-830
IP: 20
Type: I
Power max (W): 32W
Hertz: 50/60Hz
Light source: SMD LED
Light source included: Yes
Maximum driver info: 800mA CC
Lumens max: 3989lm
Voltage: 220V-240V
Colour temperature (K): 3000K
CRI: =80
MAC ADAM STEP: 3 SDCM
Opening degrees: 50°
Total height: 68
Length: 1130
Depth: 40
Type of dirver regulation: DALI
Additional rods included in the box: No
Gross weight of box Ind. Trawl: 0.01
Net weight consolidated item: 1,40

Technical specification

Unique ref.0410T1101D5_-_VIA-EVO-TRACK-1130-surface-white--UGR-16-3000K-50deg---DALI
Product familyArchitectural
Product groupLinear Systems
TypeObject (single object)
Date of publishing2024-10-04
Edition number1
