VIA EVO 1130 surface white 16W UGR<19 3000K Low Output 80° Casambi

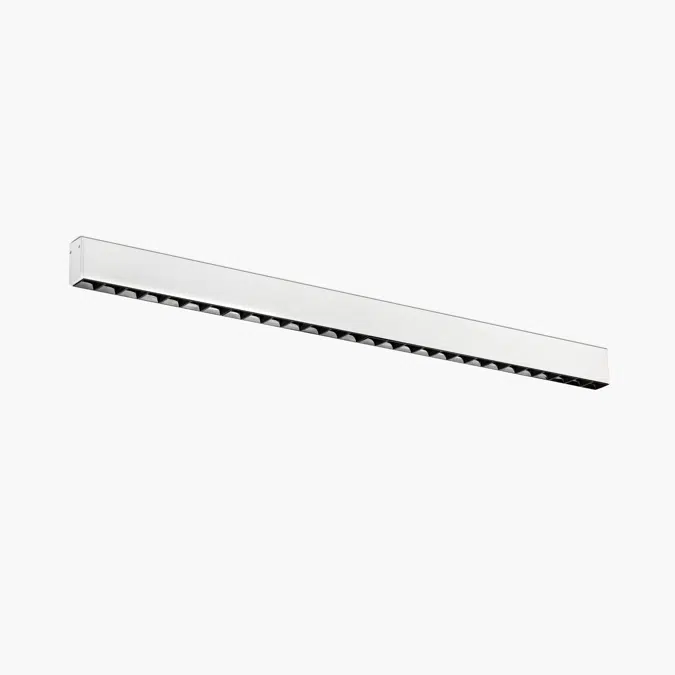

Collection designed to generally illuminate any project. VIA EVOLUTION allows the creation of continuous lines of light, with the accessory Ref.040000097 (not included), or to build different formats using luminaires or corner accessories. VIA EVOLUTION is a white surface-mounted luminaire with a length of 1130 mm, with a color temperature of 3000K and an angle of 80°. Its UGR<19 makes it a perfect alternative for office applications.

Specification

Reference: 041021111W8
Catalogue: Architectural
EAN: 8421776347991
Tariff Item: 9405119090
Clase ETIM - ETIM 9.0: EC002892
MERCADO GLOBAL: Si
MERCADO 110: No
ERP applies?: Yes
ERP registration number: 844633
Fixing: Wall
Serie: 0411
Body material: Aluminium+PC
Body finish: White
Light Source Energy Class: C
Light Source Code: 89603462
IP: 20
Type: I
Power max (W): 25W
Hertz: 50/60Hz
Light source: SMD LED
Light source included: Yes
Maximum driver info: 500mA CC
Lumens max: 3302
Voltage: 220V-240V
Colour temperature (K): 3000K
CRI: =80
MAC ADAM STEP: 3 SDCM
Opening degrees: 25°
Total height: 68
Length: 1130
Depth: 40
Type of dirver regulation: CASAMBI
Additional rods included in the box: No
Gross weight of box Ind. Trawl: 0.01
Net weight consolidated item: 1,60

Technical specification

Unique ref.041021111W8_-_VIA-EVO-1130-surface-white-16W-UGR-19-3000K-Low-Output-80deg--Casambi
Product familyArchitectural
Product groupLinear Systems
TypeObject (single object)
Date of publishing2024-10-07
Edition number1
