Fagerhult

Vialume 75

Description:

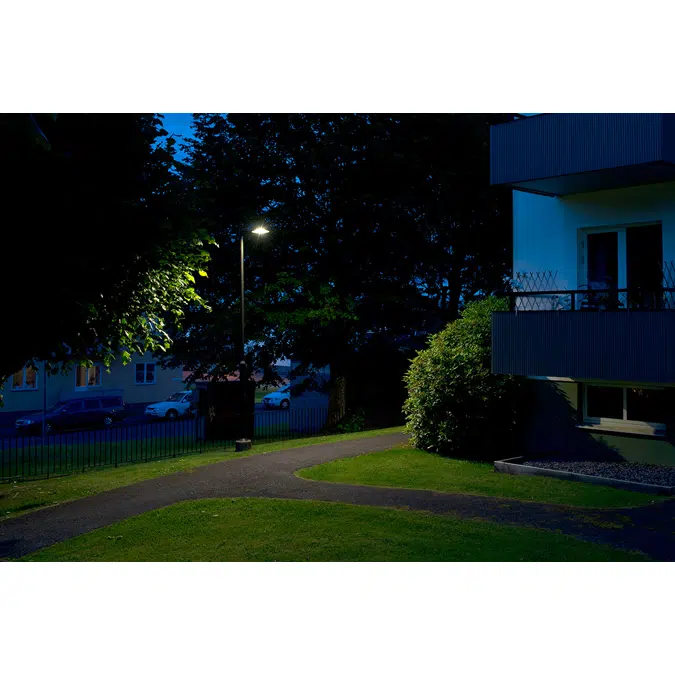

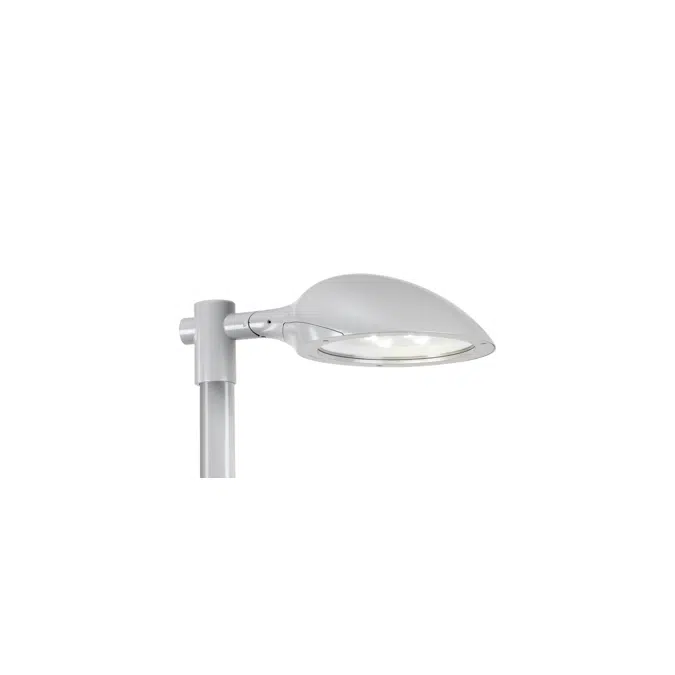

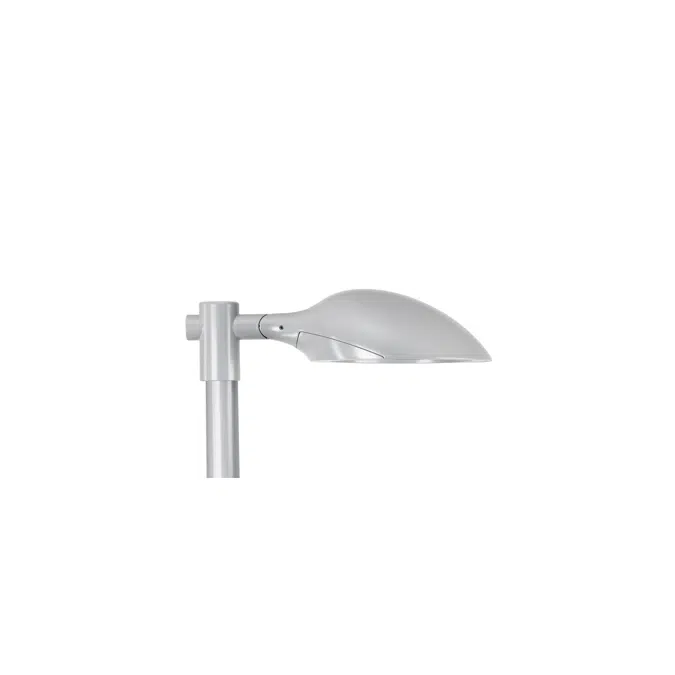

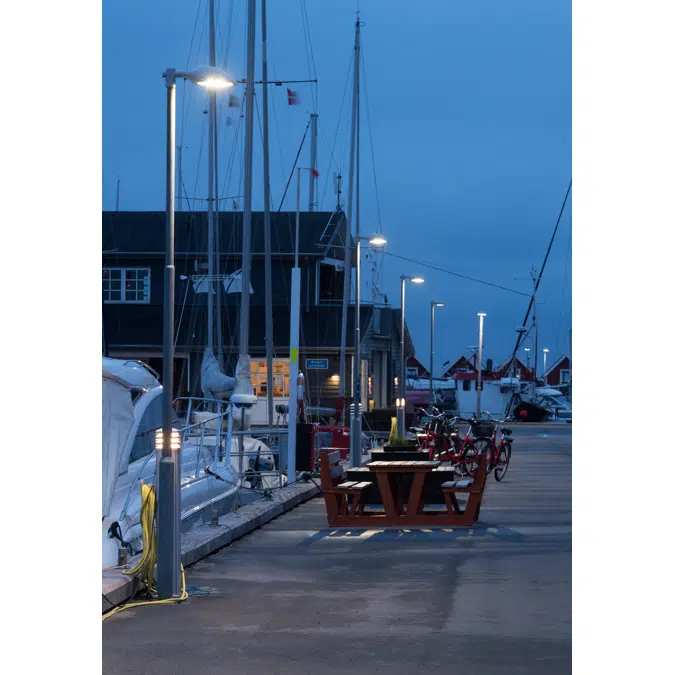

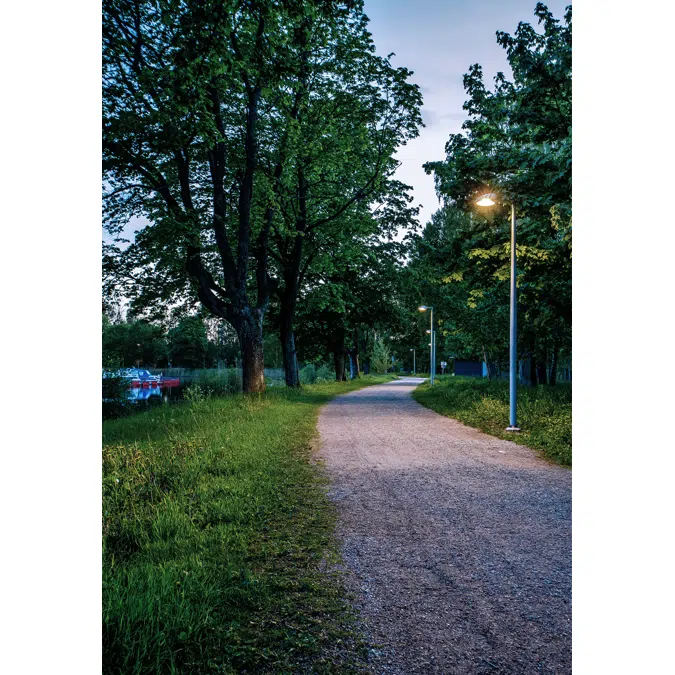

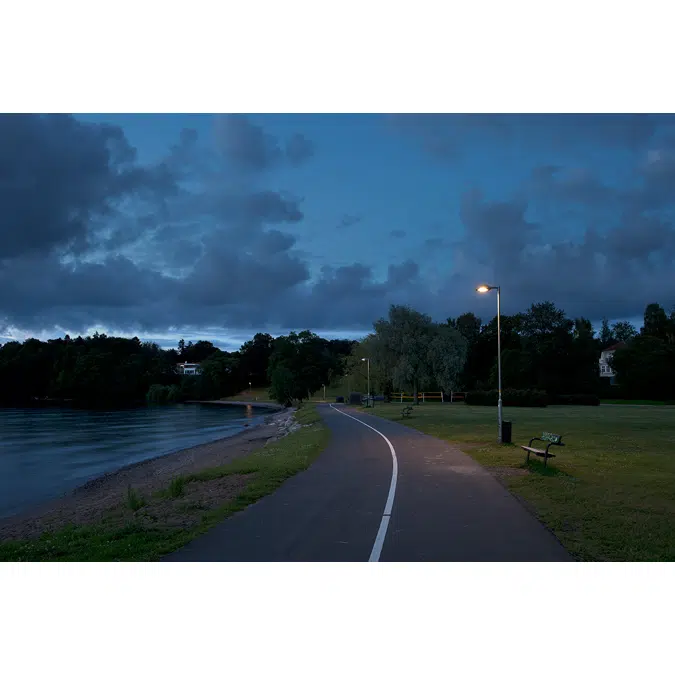

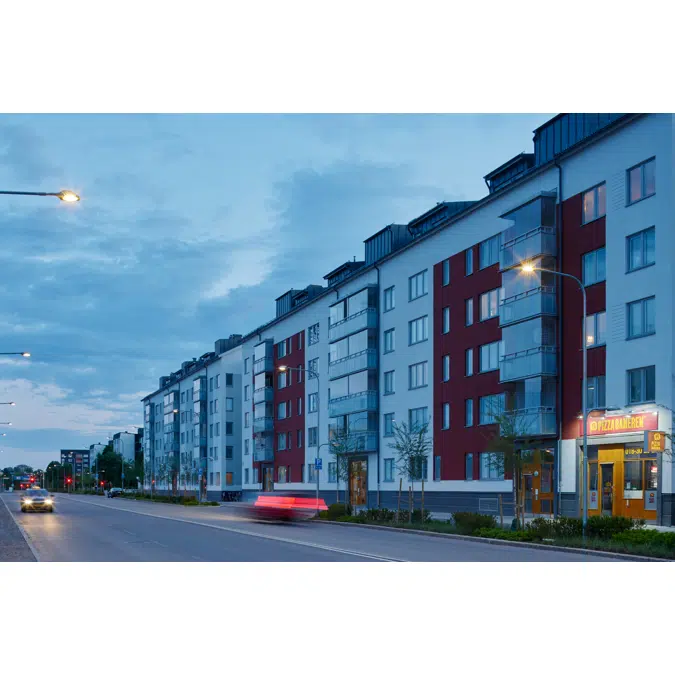

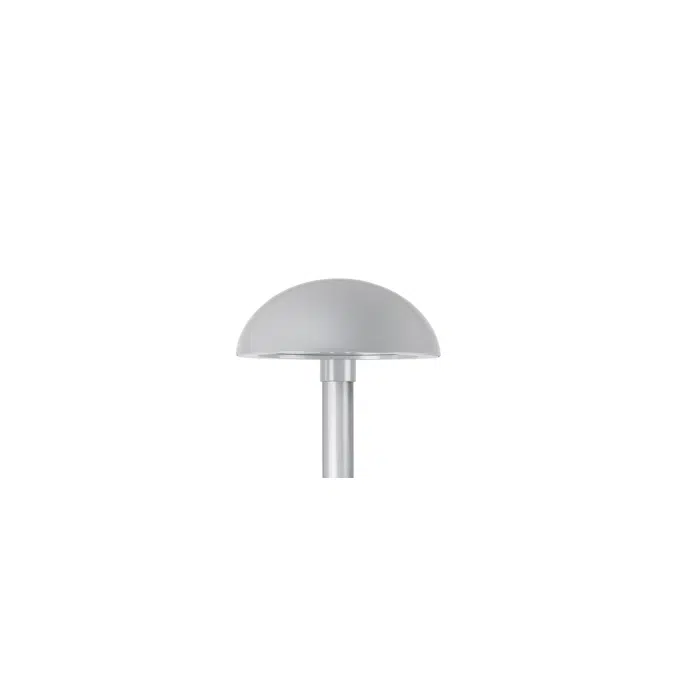

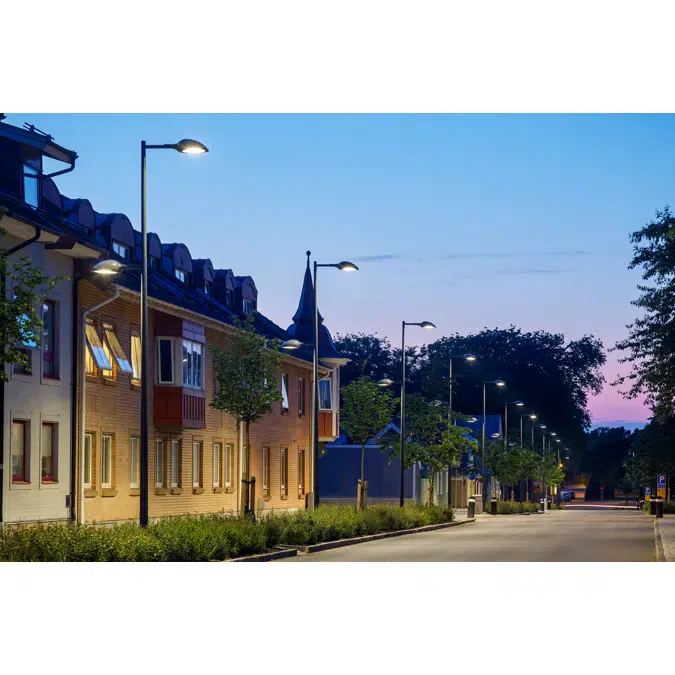

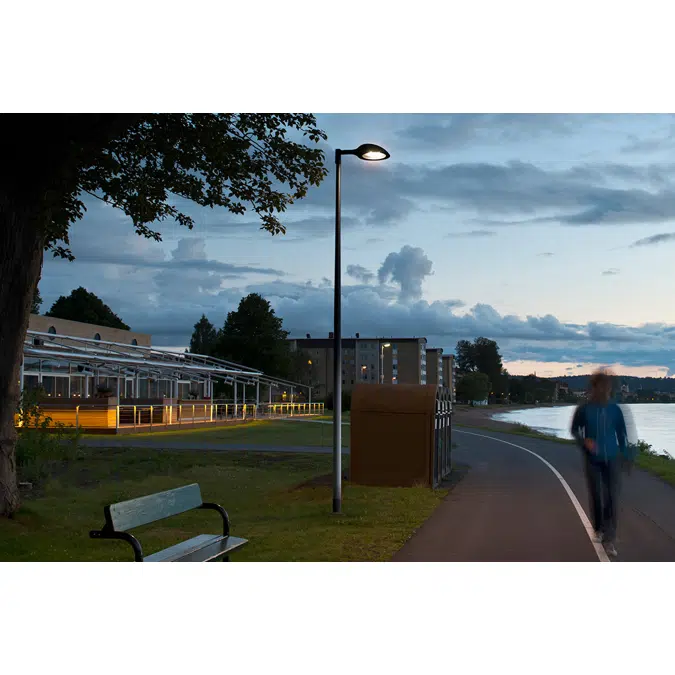

A small post top luminaire with AGC lenses for excellent lighting properties and visual comfort, ideal for smaller streets, footpaths and cycle paths. CLO for output consistency as standard.

Body and post bracket in cast aluminium. Aluminium-zinc coated stainless screws. Driver is integrated in the luminaire. Hardened flat glass.

Key Features:
Lumen: 1700lm, 1800lm, 1900lm, 4000lm, 4200lm, 4300lm, 4400lm
Colour temperature: 4000K
Light distribution: Direct
Voltage: 220-240V
CRI: 70
IP: 66
IK: 10
Standard Colours: Grey
Available Light control:

Specification

Specification

Dimension: 168, 339, 567
Weight: 5.7 kg
SDCM: 5
LED driver, h/max failure: 100000/10
Tilt:
Turn:

Connection:

Installation
Post top luminaire which in its standard design is mounted on a Ø 60 mm post top. Ø 60 mm post top bracket supplied with luminaire. For other mounting types and other options, see Accessories which are ordered separately. Variable tilting function +10º, -15º for perfect installation. Post height 3–5 m.

Louvre

Optics
AGC-lenses (Advanced Glare Control). The E-lens are designed to focus on illuminance. L lenses are ideal if the luminance from the ground is the main priority.
