Sektor

Description:

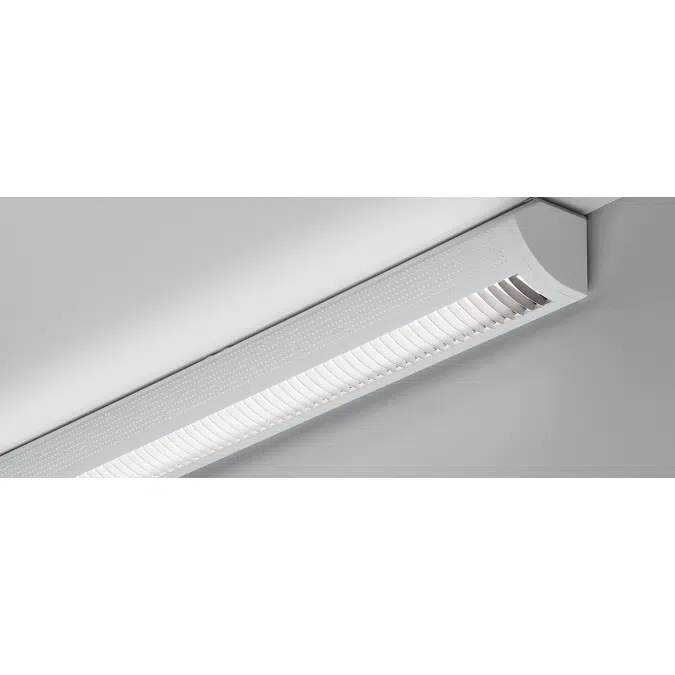

A corridor luminaire installed where the ceiling and wall meet. The light is distributed on the ceiling and wall for a varied light experience and distinct sense of space.

Luminaire body and louvre in enamelled sheet steel and ends in die-cast aluminium (RAL 9016 structured). Asymmetrical light distribution for direct lighting and light opening (cross-blade louvre) on the front lighting the ceiling and wall.

Key Features:
Lumen: 2000lm, 3300lm, 3500lm
Colour temperature: 3000K, 4000K
Light distribution: Direct
Voltage: 220-240V
CRI: 80
IP: 20
IK:
Standard Colours: White
Available Light control: DALI/Phase-pulse

Specification

Specification

Dimension: 76, 95, 1187
Weight: 2.7 kg
SDCM: 3
LED driver, h/max failure: 100000/10
Tilt:
Turn:

Connection:

Installation
For ceiling or wall mounting. Normally installed at the junction between the ceiling and wall.

Louvre
Lamell – lamell louvre in white enamelled sheet steel with perforated front integrated into a single unit (finish as above).

Optics
