Fagerhult

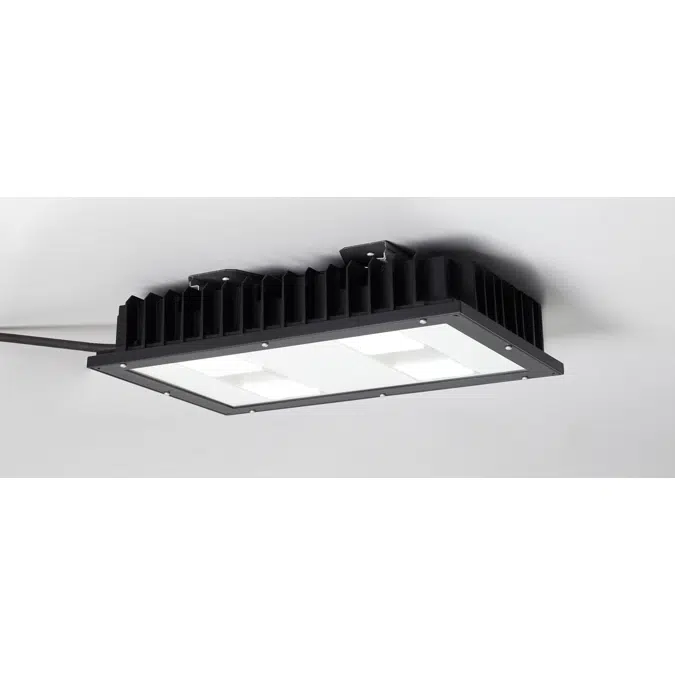

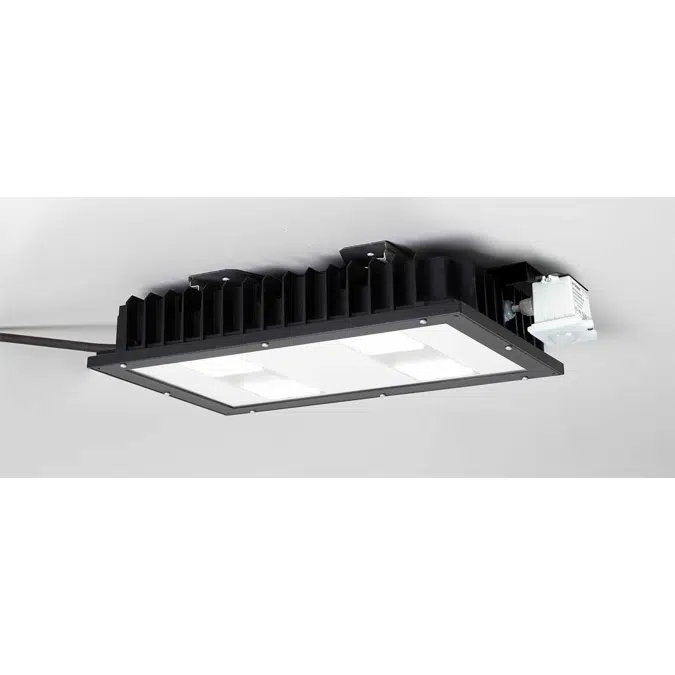

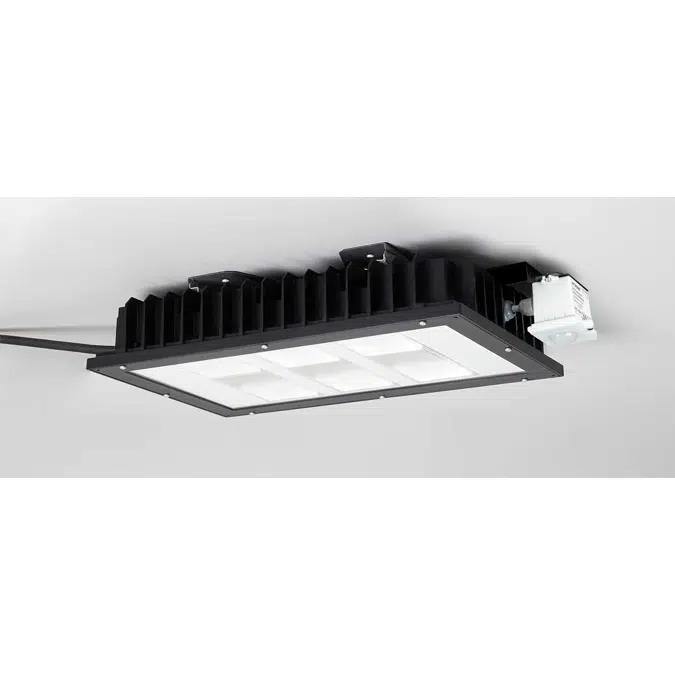

Hero Wide Beam

Description:

Developed for industrial facilities or sports centres with ball protection certification per VDE 0710-13. Glare-free with different lumen packages and provides a good, glare-free light even from greater heights.

Luminaire body made of cast (RAL 9005) aluminium. Louvre frame made of coated sheet steel. Pressure balancing valve in side of luminaire body.

Key Features:
Lumen: 11500lm, 12000lm, 15000lm, 16000lm, 18500lm, 19500lm
Colour temperature: 4000K
Light distribution: Wide Beam
Voltage: 220-240V
CRI: 80
IP: 65, 66
IK: 08, 04, 10, 07
Standard Colours: Black
Available Light control: DALI, e-Sense Move Highbay open area, Organic Response Highbay open area

Specification

Specification

Dimension: 87, 307, 498 | 102, 307, 589
Weight: 7.3 kg, 7.300 kg
SDCM: 3
LED driver, h/max failure: 100000/10
Tilt:
Turn:

Connection:

Installation
Flush-mounted, surface-mounted tandem bracket, tube bracket, wire bracket, adjustable ceiling/wall bracket and recess frame. Installation accessories are ordered separately, see accessories.

Louvre
Tempered protective glass or PMMA for higher IK classification.

Optics
