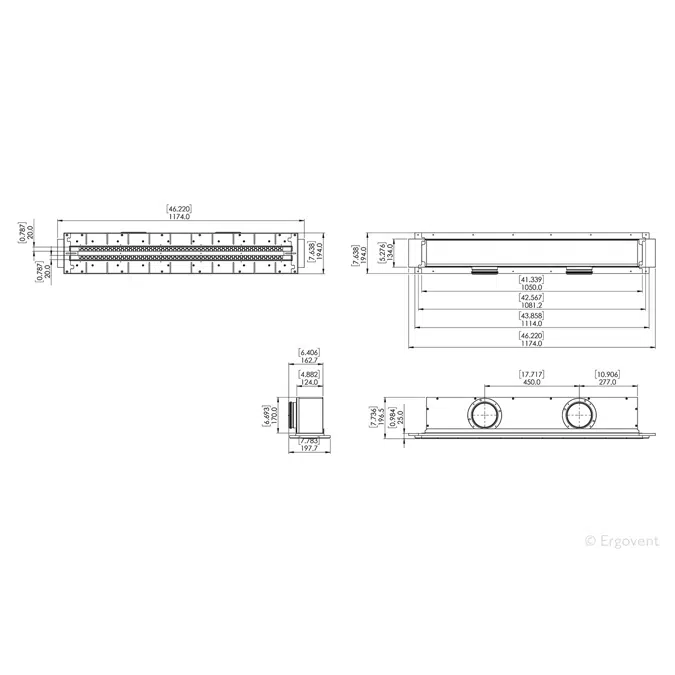

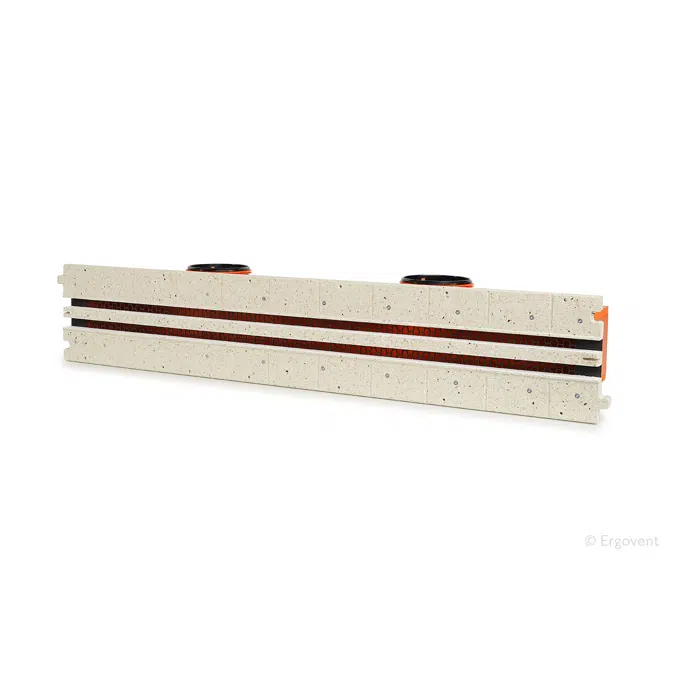

LINEO PRO CONDI 125 mm 2 slots linear air conditioning diffuser

ERGOVENT LINEO PRO CONDI 125 2-slots is a hidden linear conditioning diffuser designed for seamless integration into plasterboard ceilings and walls. This model is suitable for air conditioning systems with 125 mm duct connections.

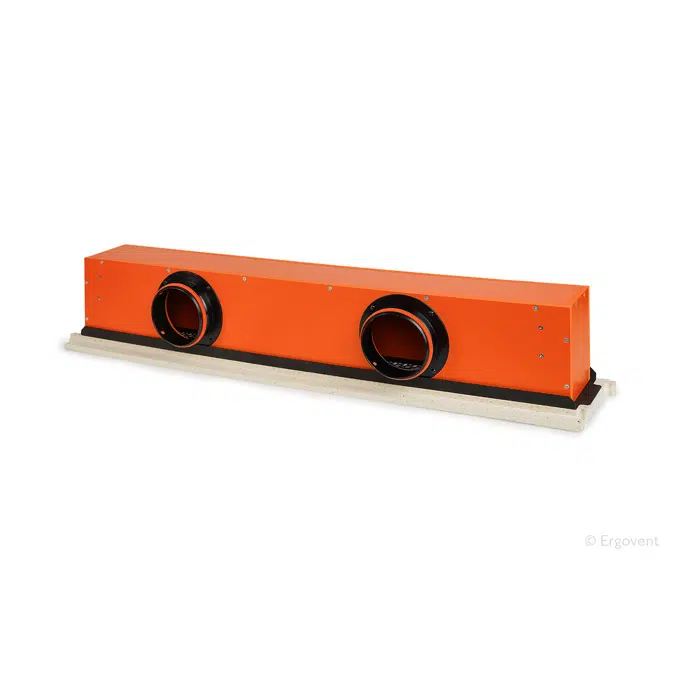

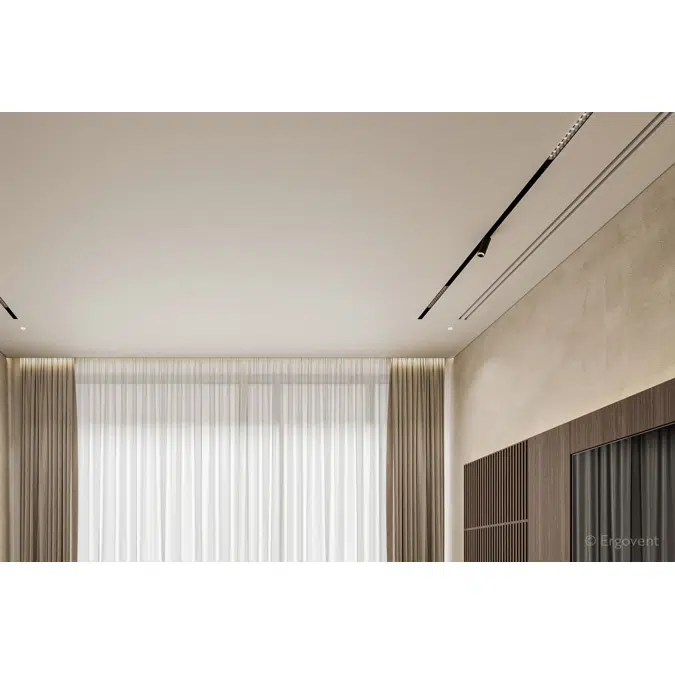

After installation, the diffuser is plastered flush and painted the same color as the ceiling or wall, leaving only a minimalist slot design visible. The pressurized connection box is made from moulded EPP material with exceptional thermal-insulation performance, so the diffuser is suitable for both ventilation and air conditioning. Units can be linked in a continuous line with other PUZZLE diffusers (75 mm, 90 mm or 125 mm connections).

Key features:

• Thermally insulated connection box made from EPP material
• All metal components protected with a dedicated insulation layer
• Pressurised box casing fully enclosing the metal body
• Six flexible positions for 125 mm duct connections: 3 from the top and 3 from the side
• Two visible linear slots
• Puzzle-lock system for connecting multiple air conditioning and ventilation diffusers into one continuous line
• Lightweight construction for convenient handling and installation
• Laboratory-tested product supplied in secure packaging
• Manufacturer: ERGOVENT

Key benefits:

• Seamless integration with gypsum ceilings or walls
• Quick and easy painting after installation
• Maintains a clean, minimalist appearance with only two slots visible
• Prevents condensation without additional insulation
