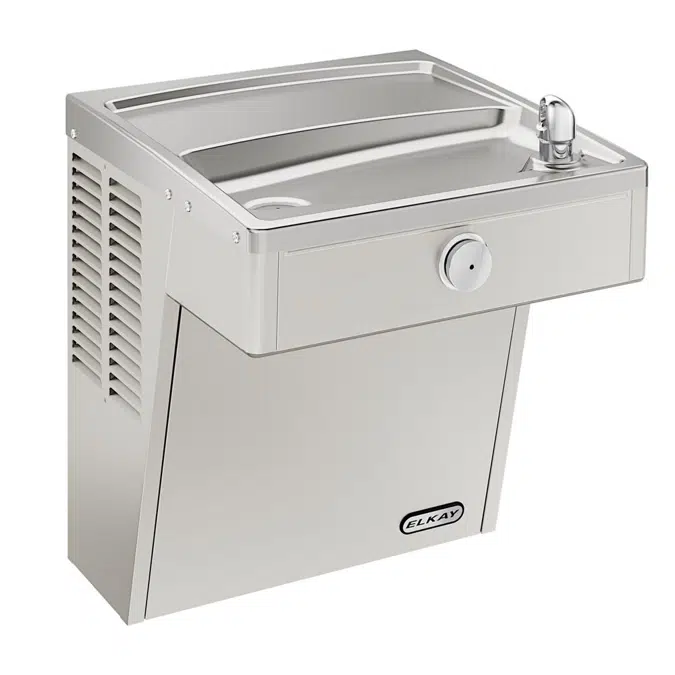

VRC8S Elkay® Wall Mount Vandal Resistant ADA Cooler Non-filtered Refrigerated Stainless
VRC8S Elkay® Wall Mount Vandal Resistant ADA Cooler Non-filtered Refrigerated Stainless
VRC8S Elkay® Wall Mount Vandal Resistant ADA Cooler Non-filtered Refrigerated Stainless
VRC8S Elkay® Wall Mount Vandal Resistant ADA Cooler Non-filtered Refrigerated Stainless
    Elkay

    VRC8S Elkay® Wall Mount Vandal Resistant ADA Cooler Non-filtered Refrigerated Stainless

    Wall Mount Vandal Resistant ADA Cooler Non-filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50° F drinking water, based on 80° F inlet water and 90° F ambient, per ASHRAE 18 testing. Features shall include Vandal Resistant. Furnished with Vandal Resistant bubbler. Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor + Outdoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.

    Compliance:

    • ADA & ICC A117.1
    • ASME A112.19.3/CSA B45.4
    • CAN/CSA C22.2 No. 120
    • NSF/ANSI 42, 53, 61 (Q≤1), 372 (lead free), & 401
    • UL 399

    Features:

    • Classic design stainless steel cooler provides an attractive and durable product.
    • Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
    • Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
    • Stainless steel construction withstands abusive environments and resists stains.
    • Tamper-resistant fasteners help protect against vandalism.
    • Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
    • Rated for indoor or outdoor use.

    Keywords: Cooler Wall Mount ADA, Wall Mount Cooler, Water Cooler Wall Mount, Elkay Water Cooler, Wall Mount Water Cooler

    Technical specification
    • Unique ref.VRC8S
    • Product familyCOOLER
    • Product groupVRC Family
    • TypeObject (single object)
    • Date of publishing2022-08-19
    • Edition number1
    • Height (inches)20.6
    • Width (inches)18.5
    • Depth (inches)18
    Related
    • Material mainStainless steel
    • Designed inUnited States
    • Weight Net (Lbs)52
    Classification
    • BIMobject CategorySanitary - Drinking fountains
