RNSF8118LR2 Rigidbilt® Stainless Steel 57" x 29-3/4" x 12-3/4" Floor Mount Single Compartment Scullery Sink w/ Drainboard
RNSF8118LR2 Rigidbilt® Stainless Steel 57" x 29-3/4" x 12-3/4" Floor Mount Single Compartment Scullery Sink w/ Drainboard
RNSF8118LR2 Rigidbilt® Stainless Steel 57" x 29-3/4" x 12-3/4" Floor Mount Single Compartment Scullery Sink w/ Drainboard
    Elkay

    RNSF8118LR2 Rigidbilt® Stainless Steel 57" x 29-3/4" x 12-3/4" Floor Mount Single Compartment Scullery Sink w/ Drainboard

    Rigidbilt® Stainless Steel 27" x 29-3/4" x 12-3/4" Floor Mount Single Compartment Scullery Sink w/ Drainboard. Sink is manufactured from 16 gauge 304 Stainless Steel with a Buffed Satin finish, Center drain placement. Sinks supported by (4) 16 gauge stainless steel, 15/8” O.D. tubular legs with bullet shaped feet adjustable up to 1”.

    Compliance:

    ASME A112.19.3/CSA B45.4
    NSF 2

    Features:

    • 16-gauge, Type 304 stainless steel.
    • Large die-drawn sink compartments pitched to drain.
    • Seamless drawn 3-1/2" radius coved corners.
    • Exposed surfaces blended into a lustrous satin finish.
    • Steel channel-reinforced drainboards have a conical shaped pitch for drainage.
    • 8" high, full-length backsplash with 45-degree sloped top to resist dirt and grime.
    • 2" thick backsplash to allow for plumbing.
    • 3-1/2" drain opening centered in each compartment.
    • Stainless steel tubular legs with cross-brace supports.
    • 1-5/8" O.D.with up to 1" adjustable bullet-shaped stainless steel feet.

    Keywords: Rigidbilt Scullery, Floor Mount Single Compartment Scullery Sink, 304 Stainless Steel, Scullery Sinks, die-drawn sink compartments, 3 compartment scullery sink, elkay sturdibilt scullery sink, scullery sink drain​, scullery sink faucet​, Faucet Holes, laundry sinks, one-bowl kitchen and bar sinks, freestanding kitchen and bar sinks,

    Technical specification
    • Unique ref.RNSF8118LR2
    • Product familyCIS
    • Product groupRigidbilt
    • TypeObject (single object)
    • Date of publishing2024-12-30
    • Edition number1

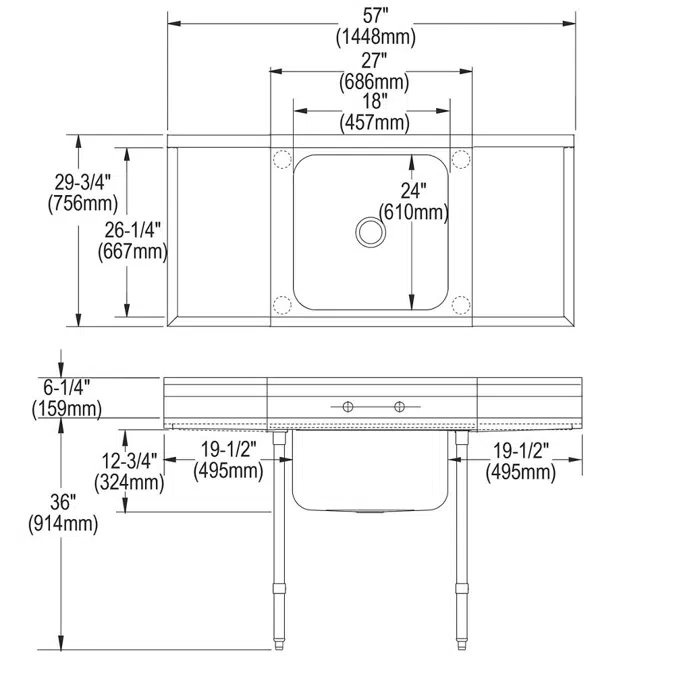

    • Height (inches)42.25
    • Width (inches)29.75
    • Depth (inches)57
    Related
    • Material mainStainless steel
    • Weight Net (Lbs)117
    Classification
    • BIMobject CategoryKitchen - Sinks
    • CSI MasterFormat 2014 Code22 42 16.16
    • CSI MasterFormat 2014 TitleCommercial Sinks
