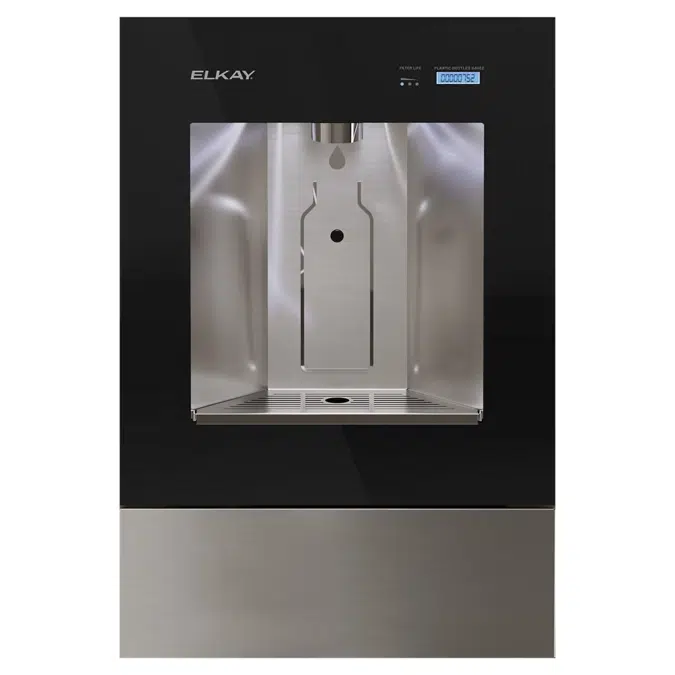

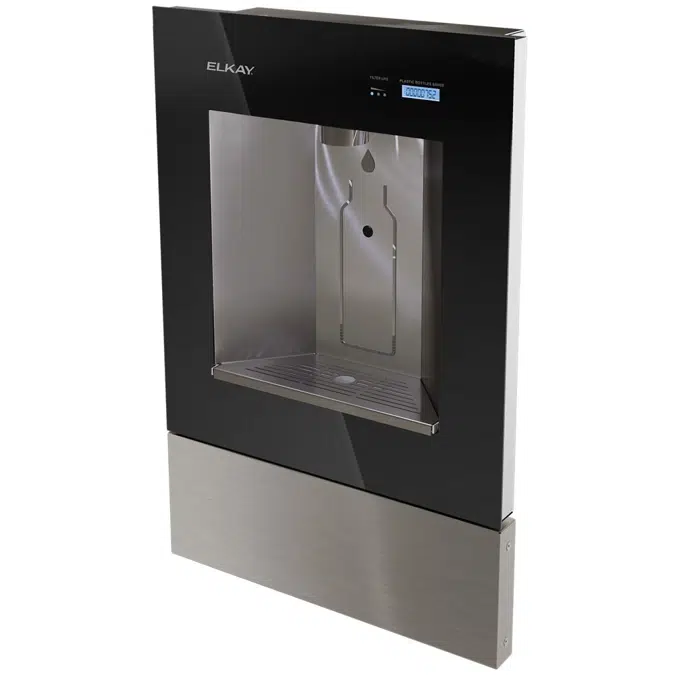

LBWDC00BKC Elkay Liv® Pro In-Wall Commercial Filtered Water Dispenser Non-refrigerated Midnight
LBWDC00BKC Elkay Liv® Pro In-Wall Commercial Filtered Water Dispenser Non-refrigerated Midnight
LBWDC00BKC Elkay Liv® Pro In-Wall Commercial Filtered Water Dispenser Non-refrigerated Midnight
LBWDC00BKC Elkay Liv® Pro In-Wall Commercial Filtered Water Dispenser Non-refrigerated Midnight
    Elkay

    LBWDC00BKC Elkay Liv® Pro In-Wall Commercial Filtered Water Dispenser Non-refrigerated Midnight

    Elkay ezH2O Liv® Pro In-Wall Commercial Filtered Water Dispenser Non-refrigerated. Features shall include Ambient Water, Automatic
    Filter Status Reset, Filtered, Green Ticker™, Hands Free, Laminar Flow, Visual Filter Monitor. Electronic Bottle Filler Sensor activation.
    Product shall be Wall Mount (Inwall Frame/Plate), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and
    CAN/CSA C22.2 No. 120.

    Compliance:

    • Massachusetts MA approved
    • ADA & ICC A117.1
    • CAN/CSA C22.2 No. 120
    • NSF/ANSI 42, 53, 61 (Q≤1), & 372 (lead free)
    • UL 399

    Features:

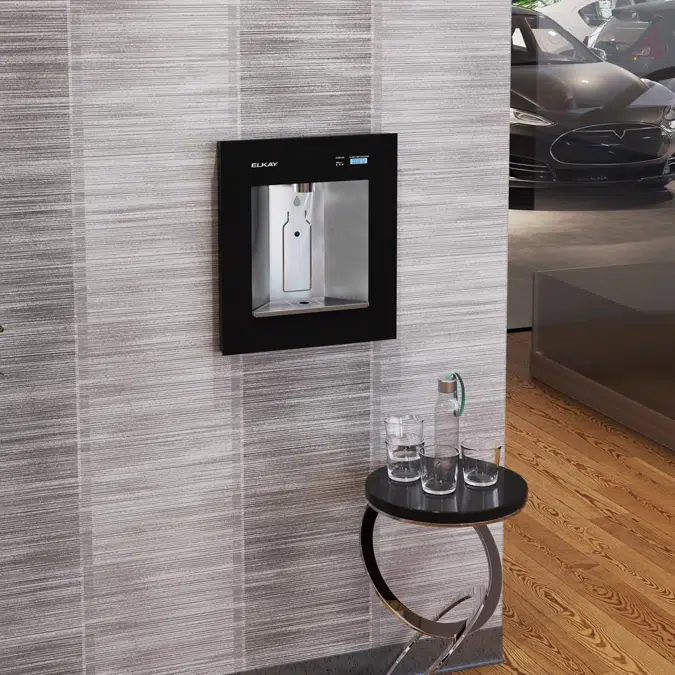

    • Install a filtered water dispenser in convenient commercial spaces such as waiting areas, conference rooms, lobbies and break rooms.
    • Fits within the width and depth of two wall studs near water and electric; includes drip tray with optional drain connection.
    • Filter is certified to NSF standards to reduce lead and other contaminants. Filter box and remote filter cable included; optional for install
    • Colorful lights indicate when quick and easy filter changes are needed
    • Backlit LED Green Ticker™ counts the number of disposable, single-use plastic bottles served without the plastic bottle waste
    • Self-serve design allows people to help themselves to refreshing water in an environmentally friendly way
    • Hands-free filling with automatic timed shut off to help prevent accidental spills and messes
    • Glass-front and brushed stainless steel design looks great in any space; interactive lighting brightens when dispensing water
    • Unit can be installed with or without a chiller. Various options available, based on application; chiller sold separately
    • Optional setting prevents unsupervised use

    Keywords: INWALL, IN-WALL, IN WALL

    Technical specification
    • Unique ref.LBWDC00BKC
    • Product familyBOTTLE FILLING STATION
    • Product groupezH2O Liv Pro
    • TypeObject (single object)
    • Date of publishing2022-08-19
    • Edition number1
    • Height (inches)28
    • Width (inches)18
    Related
    • Manufactured inUnited States
    • Weight Net (Lbs)25
    Classification
    • BIMobject CategorySanitary - Drinking fountains
