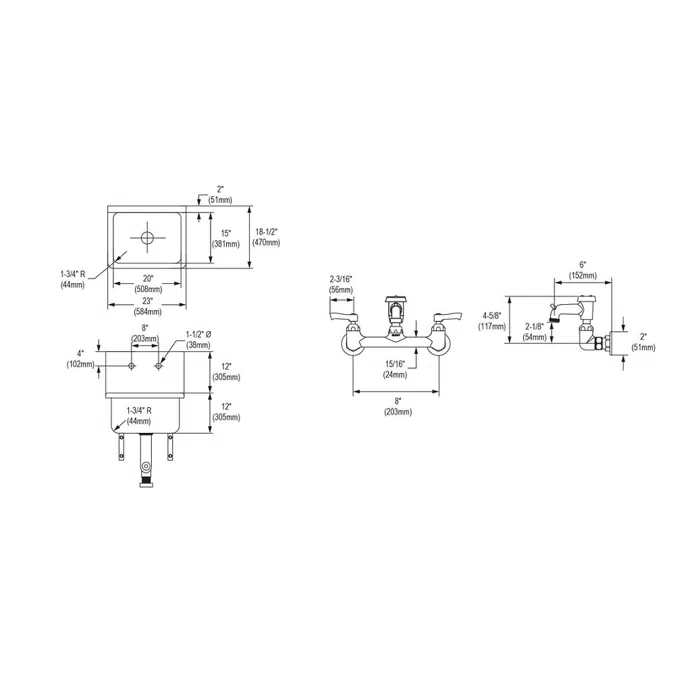

ESSB2319C Elkay Stainless Steel 23" x 18-1/2" x 12 Wall Hung Service Sink Kit w/Faucet w/3" Bucket Hook Spout and P-trap
ESSB2319C Elkay Stainless Steel 23" x 18-1/2" x 12 Wall Hung Service Sink Kit w/Faucet w/3" Bucket Hook Spout and P-trap
    Elkay

    ESSB2319C Elkay Stainless Steel 23" x 18-1/2" x 12 Wall Hung Service Sink Kit w/Faucet w/3" Bucket Hook Spout and P-trap

    Stainless Steel 23" x 18-1/2" x 12 Wall Hung Service Sink Kit. Sink is manufactured from 14 gauge 304 Stainless Steel with a Buffed Satin finish, Center drain placement.

    Compliance:

    ASME A112.19.3/CSA B45.4
    ADA & ICC A117.1
    ASME A112.18.1/CSA B125.1
    NSF 372 (lead free)
    NSF 61 (Q≤1)

    Features:

    • 14-gauge, Type 304 stainless steel.
    • 1-3/4" coved corners.
    • 1-1/2" rolled rims.
    • 12" high, full-length backsplash.
    • Exposed surfaces blended by hand to a uniform lustrous satin finish.
    • 3-1/2" drain opening.
    • Furnished with wall hanger and stainless steel support brackets.
    • Kit includes ESSB2319 sink, one LK940BR03L2H faucet and one LK173 cast iron P-trap; conveniently packaged together to save you time.

    Keywords: Wall Service Sink, Wall Hung Service Sink Kit, Dual Manual Handle, Service Sink Kit, commercial sinks, Type 304 stainless steel, Wall-mounted utility, laundry sink, Single Bowl Wall Mount Service Sink

    Technical specification
    • Unique ref.ESSB2319C
    • Product familyCIS
    • Product groupService Sink
    • TypeObject (single object)
    • Date of publishing2022-08-19
    • Edition number1
    • Height (inches)39.75
    • Width (inches)18.5
    Related
    • Material mainStainless steel
    • Designed inUnited States
    Classification
    • BIMobject CategoryKitchen - Sinks
    • Uniclass 2015 CodePr_40_20_96_81
    • Uniclass 2015 DescriptionSinks
    • CSI MasterFormat 2014 Code22 42 16.16
    • CSI MasterFormat 2014 TitleCommercial Sinks
    • OmniClass Number23-31 13 19 19
    • OmniClass TitleService Sinks
