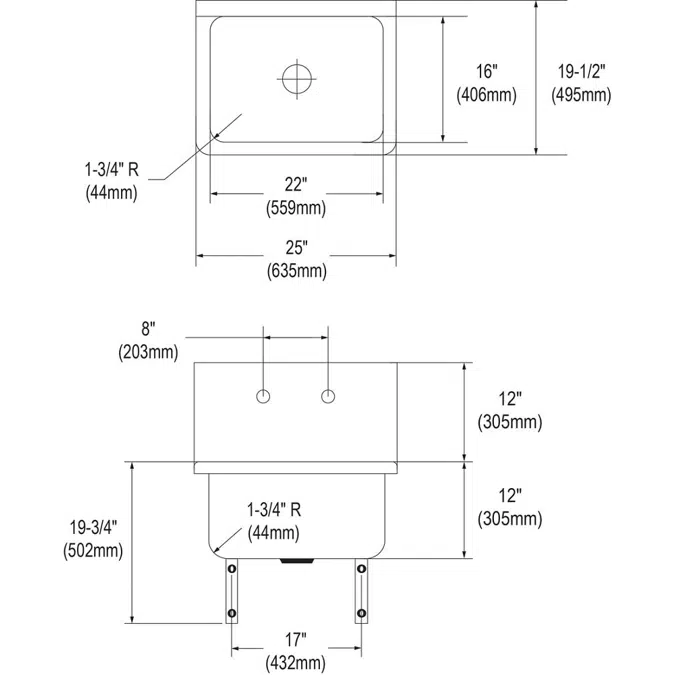

ESS25202 Elkay Stainless Steel 25" x 19-1/2" x 12 Wall Hung 2-Hole Service Sink

Stainless Steel 25" x 19-1/2" x 12 Wall Hung Service Sink. Sink is manufactured from 14 gauge 304 Stainless Steel with a Buffed Satin finish, Center drain placement.

Compliance:

ASME A112.19.3/CSA B45.4

Features:

14-gauge, Type 304 stainless steel.
1-3/4" coved corners.
1-1/2" rolled rims.
12" high, full-length backsplash.
Exposed surfaces blended by hand to a uniform lustrous satin finish.
3-1/2" drain opening.
Furnished with wall hanger and stainless steel support brackets.

Keywords: utility commercial sink, commercial stainless steel utility sink, commercial utility sink with cabinet, commercial kitchen utility sink, small utility commercial sink

Technical specification

Unique ref.ESS25202
Product familyCIS
Product groupService Sink
TypeObject (single object)
Date of publishing2022-08-19
Edition number1
Height (inches)12
Width (inches)19.5
Depth (inches)25

Links

Product urlhttps://www.elkay.com/products/details/ess25202
Installation instructionshttps://www.elkayfiles.com/care-cleaning-install-warranty-sheets/2000000714.pdf
Technical descriptionhttps://www.elkayfiles.com/spec-sheets/ess25202_spec.pdf

Material mainStainless steel
Designed inUnited States
Weight Net (Lbs)42.5

Classification

BIMobject CategoryKitchen - Sinks
Uniclass 2015 CodePr_40_20_96_81
Uniclass 2015 DescriptionSinks
CSI MasterFormat 2014 Code22 42 16.16
CSI MasterFormat 2014 TitleCommercial Sinks
OmniClass Number23-31 13 19 19
OmniClass TitleService Sinks
