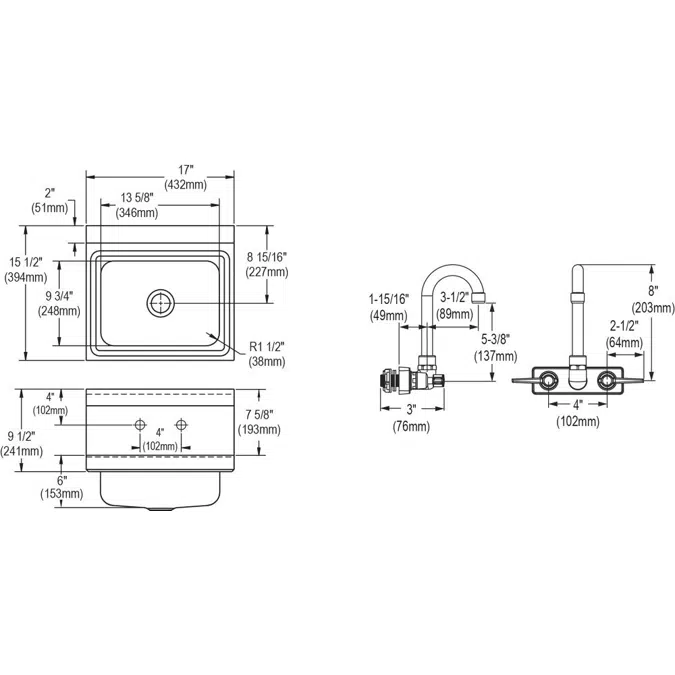

CHSB1716C Elkay Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit w/Faucet

Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit w/Faucet. Sink is manufactured from 20 gauge 304 Stainless Steel with a Buffed Satin finish, Center drain placement.

Compliance:

MassachusettsMAapproved
ASME A112.19.3, ASME A112.18.1
NSFStandard61
NSFStandard372
CSA B45.4, CSA B125.1
cUPC
IPC listed
NPCC listed
CEC listed

Features:

Type 304 stainless steel basin.
1-3/4"-radius coved corners.
7"-high, full-length backsplash with 45 degree-angle sloped top.
Inverted edge on sink rim.
Exposed surfaces have a brushed finish.
2" drain opening.
Easy to clean and sanitize.
Furnished with hanger support bracket.
Kit includes CHSB1716 sink and LKB400 faucet; conveniently packaged together to save you time.

Keywords: Hand sink, Wash sink, lead reduction, reduces lead, lead removal, reduce lead, lead free, no lead, low lead, leadfree, NSF372, NSF 372, NSF, Lead

Technical specification

Unique ref.CHSB1716C
Product familyCIS
Product groupHandwash & Lavatory
TypeObject (single object)
Date of publishing2022-08-19
Edition number1
Height (inches)13
Width (inches)15.5
Depth (inches)16.75

Links

Product urlhttps://www.elkay.com/products/details/CHSB1716C
Installation instructionshttps://www.elkayfiles.com/care-cleaning-install-warranty-sheets/1000005235_drain.pdf,https://www.elkayfiles.com/care-cleaning-install-warranty-sheets/2000000714.pdf
Technical descriptionhttps://www.elkayfiles.com/spec-sheets/chsb1716c_spec.pdf

Material mainStainless steel
Designed inUnited States
Weight Net (Lbs)14

Classification

BIMobject CategoryKitchen - Sinks
