ELKA

PKW 1200-v2.0 Housing

Name: PKW 1200-v2.0 Housing
Rating: 4.2 (6 reviews)

4.2(6 reviews)

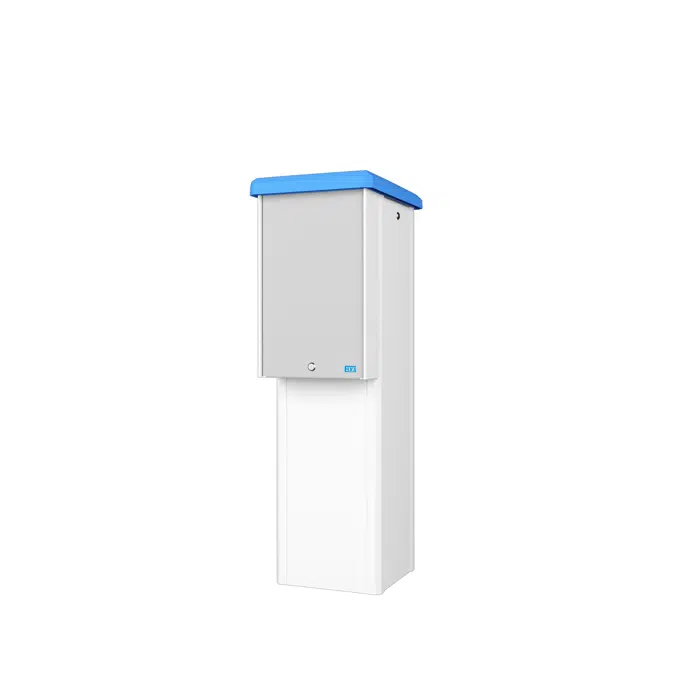

ELKA Aluminium-housings PKW 1200-v2.0, designed as a supplement for all ELKA barriers to accommodate customer-specific installations, such as key switches, token acceptors, intercom systems, video surveillance or access control systems.

The high-quality housing offers plenty of space for additional installations, optional modern lighting and makes on-site installation easier in a completely new way. A flexible concept with modular design and clear cable management. With the optional available intermediate cover, two PKW housings can be made into one PKW/LKW housing.

Learn more about ELKA products and the corresponding accessory components. A competent team of engineers and specialists will gladly support you in planning and implementing your projects. Benefit from over 40 years of experience.

We have installed over 100,000 barriers in over 80 countries worldwide. All products are manufactured in Germany and are subject to strict quality controls.

We are looking forward to your inquiry.

Specification

Housing PKW 1200-v2.0, W/D/H 379 x 486 x 1,200 mm, made of powder-coated aluminium (bottom part white, RAL 9010 – front panel light grey, RAL 7035 – hood blue, RAL 5012). Lockable, lateral service door and removable cover, including mounting plate(s) for convenient access (can be variably positioned on the corner profiles on site). With the optional available intermediate cover, two PKW housings can be made into one PKW/LKW housing. Optional with modern LED-lighting.
Intended use: for access control systems, intercom systems
Dimensions WxDxH (mm): 379x486x1,200
Installation dimensions WxDxH (mm): 250x400x450
Attachment of accessories: inside, including template
Installation via: removable front panel (lockable), lateral service door (lockable), removable hood
Service door: Standard on the left side (view from the front), additional service door optional (position can be optionally determined when ordering)
Accessories: optional LED-lighting under the hood
Weight (kg): 30.5

Technical specification

Unique ref.pkw_1200
Product familyPillars and housings
Product groupHousings
TypeObject (single object)
Date of publishing2022-06-28
Edition number1
Height (mm)1200
Width (mm)379
Depth (mm)486

Links

COBie Product Data Sheethttps://www.elka.eu/en/account/login
Product urlhttps://www.elka.eu/en/product/pkw/1634
Installation instructionshttps://www.elka.eu/en/account/login
Product certificationhttps://www.elka.eu/en/account/login
Technical descriptionhttps://www.elka.eu/en/account/login
Tendering informationhttps://www.elka.eu/en/account/login

Material mainAluminium
Designed inGermany
Manufactured inGermany
Weight Net (Kg)30.5

Classification

BIMobject CategoryLandscaping - Gates
IFC classificationObject
Uniclass 2015 CodePr_80_77_28
Uniclass 2015 DescriptionEquipment enclosures, cabinets, boxes and housings
