EC/90 Fixed wood/aluminium window

EC/90 Fixed wood/aluminium window

Ekstrands Dörrar & Fönster

EC/90 Fixed wood/aluminium window

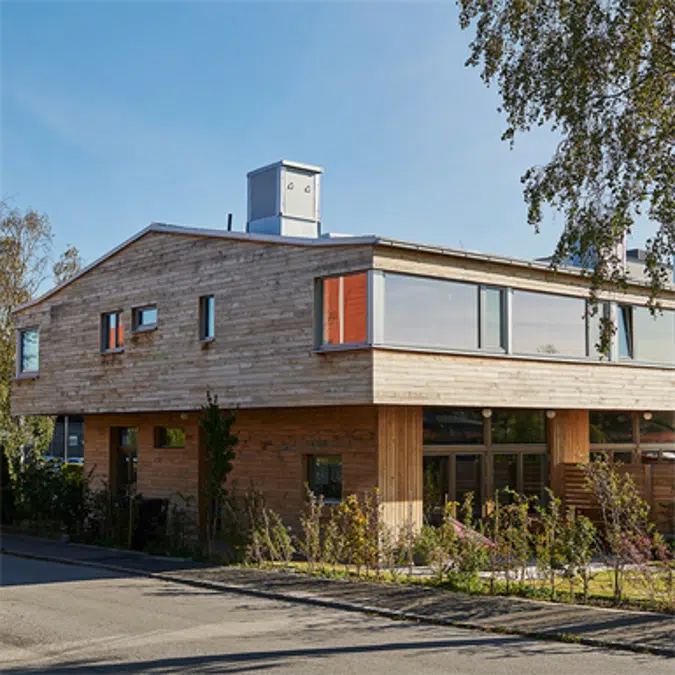

Ekstrands EC/90 is an energy-efficient window that surpasses the most extreme energy saving requirements! The EC/90 window is based on Ekstrands Europa68 window design. The window is inwards opening with dreh-kipp fittings that allow ventilation in the sash. The frame depth has been extended to 90 mm. The sash has 3 sealing strips, which provides excellent climate characteristics. The total U-value for the entire window is 0.80 W/(m²K) which is unique for a wooden window. This is an energy window that fits low energy houses. The Passive house EC/90 Plus+ with a value of 0.77W/(m²K) is a further development of EC/90. The sash and frame has built-in insulation and the window can be delivered as Passive House certified component. Ekstrands can provide calculated U-values for different installation methods for both EC/90 and EC/90 Plus+. The EC/90 is available in audio-class design, called the EC/90 SR46 and has a 46 dB sound reduction. EC/90, EC/90 Plus + and EC/90 SR46 can be supplied with exterior aluminum cladding. If fire rating is needed we offer EC/90 EX with fire rating EI30.

Specification

U-value: 0.78 W/(m²K) Air permeability: 4 Acoustic performance dB(Rw): 34 Water tightness: E1950 Resistance to wind load: NPD

Technical specification

Unique ref.energy-concept-90-fixed-wood-alu-window
Product familyWindows
Product groupEC/90 Energy Concept 90
TypeObject (single object)
Date of publishing2020-01-20
Edition number1

Links

Product urlhttp://www.ekstrands.com/fonster/inatgaende-fonster/energifonster-ec-90
Installation instructionshttp://www.ekstrands.com/om-oss/montering-skotselrad
Instruction videohttps://www.youtube.com/watch?v=qpnDQkJump0
Product certificationhttp://www.ekstrands.com/om-oss/ladda-ned/prestandadeklarationer-ce
Technical descriptionhttp://www.ekstrands.com/om-oss/ladda-ned/prestandadeklarationer-ce

Related

Material mainWood
Material secondaryAluminium
Designed inSweden
Manufactured inSweden

Classification

BIMobject CategoryWindows - Fixed Frame Windows
IFC classificationWindow
UNSPSC nameWindows
UNSPSC code301716
Uniclass 2015 CodeEF_25_30
Uniclass 2015 DescriptionDoors and windows
CSI MasterFormat 2014 Code08 50 00
CSI MasterFormat 2014 TitleWindows
OmniClass Number23-17 13 00
OmniClass TitleWindows
CSI UniFormat II CodeB2020
CSI UniFormat II TitleExterior Windows

Region availability

Europe
Denmark
Finland
Germany
Norway
Sweden
