    GARDA FS 300 Linear Railing

    High-strength glass railings. Reinforced solutions for maximum safety and technical performance

    GARDA FS 300 offers a high-performance solution for projects requiring reinforced safety, structural stability, and integrated aesthetics.

    With interior, front, or floor installation options, it is ideal for environments where regulations and functionality demand the highest technical standards.

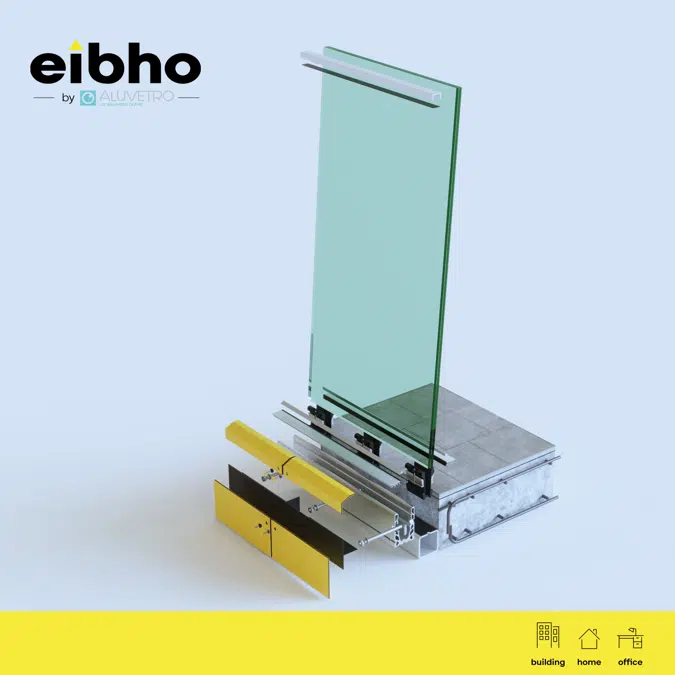

    FS 300: front mounting with the possibility of additional structural support

    Specification

    • Resistance according to application:

      • Safety test over 3.0 kN/m → 4.5 kN/m

      Available thicknesses:

      • 8+8.2 mm / 8+8.4 mm
      • 10+10.2 mm / 10+10.4 mm
      • 12+12.2 mm / 12+12.4 mm

      Complies with CTE regulations – areas of use: A1, A2, B, C1, C2, C3, C4, D1, D2, E, F, G1, G2

    Technical specification
    • Unique ref.GARDA-FS-300-Linear-Railing
    • Product familyGARDA EIBHO by Aluvetro
    • Product groupGARDA FS
    • TypeObject (single object)
    • Date of publishing2026-02-22
    • Edition number1
    Links
    Related
    • Material mainAluminium
    • Material secondaryGlass
    Classification
    • BIMobject CategoryConstruction - Railing
    • IFC classificationRailing
    • OmniClass Number23-17 25 11 11 17
    • OmniClass TitleRailing
