Remote Booster Power Supplies

Overview

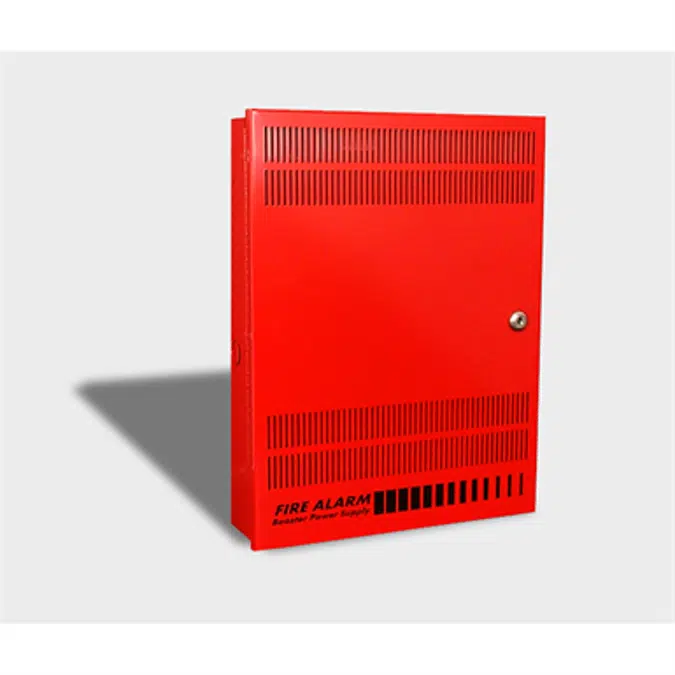

The Booster Power Supply (BPS) is a UL 864, 9th Edition listed power supply. It is a 24 Vdc filtered-regulated, and supervised unit that can easily be configured to provide additional notification appliance circuits (NACs) or auxiliary power for Mass Notification/ Emergency Communication (MNEC), as well as life safety, security, and access control applications.

The BPS contains the circuitry to monitor and charge internal or external batteries. Its steel enclosure has room for up to two 10 ampere-hour batteries. For access control-only applications, the BPS can support batteries totaling up to 65 ampere-hours in an external enclosure. The BPS has four Class B (convertible to two Class A) NACs. These can be activated in one or two groups from the BPS’s unique dual input circuits.

The BPS is available in 6.5 or 10 ampere models. Each output circuit has a capacity of three amperes; total current draw cannot exceed the unit’s rating.

Technical specification

Unique ref.edwards-utc-021
Product familyElectronics
Product groupFire Detection, Monitoring and Alarm
TypeObject (single object)
Date of publishing2018-01-07
Edition number1

Links

Product urlhttp://edwardsfiresafety.com/
Technical descriptionhttp://edwards-es.com/Data%20Sheets/12%20--%20Power%20Supplies%20and%20Accessories/E85005-0125%20--%20Remote%20Booster%20Power%20Supplies.pdf

Material mainMetal
Designed inUnited States
Manufactured inChina

Classification

BIMobject CategoryFire Products - Fire Protection
IFC classificationAlarm
ETIM CodeEG000056
ETIM NameFire protection systems
UNSPSC nameFire alarm systems
UNSPSC code46191505
Uniclass 2015 CodePr_75_75_30_31
Uniclass 2015 DescriptionFire detection and alarm power supply equipment
CSI MasterFormat 2014 Code28 31 63
CSI MasterFormat 2014 TitleFire Alarm Integrated Audio Visual Evacuation Systems
OmniClass Number23-29 31 13
OmniClass TitleFire Alarm Control Panels
CSI UniFormat II CodeD40
CSI UniFormat II TitleFIRE PROTECTION
