    dormakaba Speedgate Turnstile Argus 40-60-80 - Entrance Systems

    5.0 out of 5 stars5.0(12 reviews)

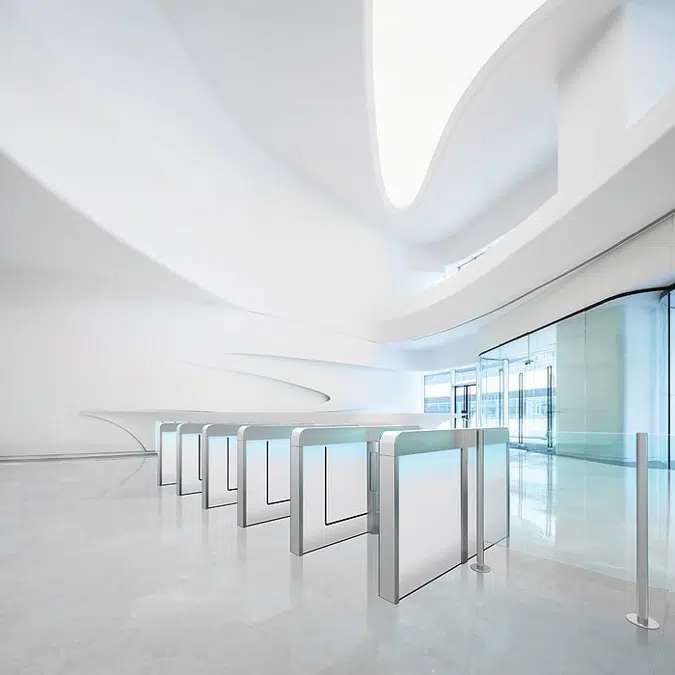

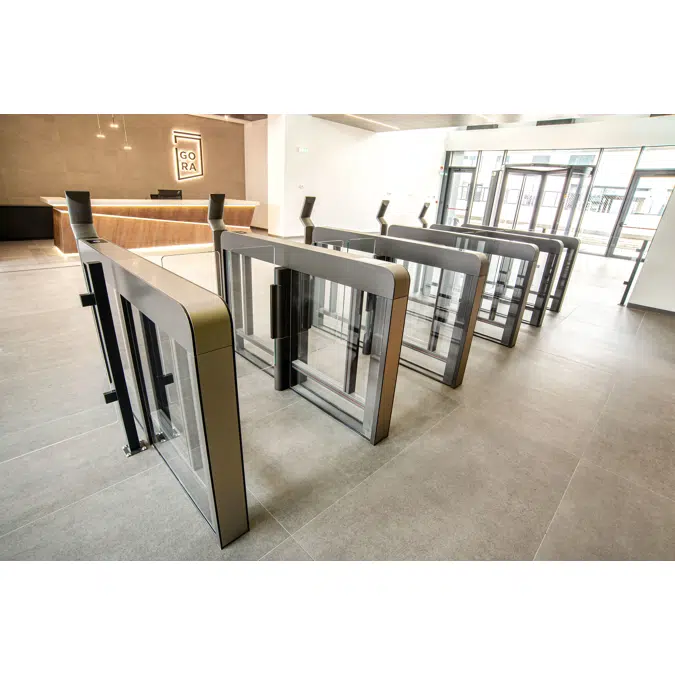

    Argus 40: Space-saving speed gate for entrance control in surveilled areas with door leaves from 990 to 1800 mm height and passage widths from 650 to 1,000 mm for better accesibility. The modular half-height sensor barrier can be adapted to environment with a broad range of materials and colours. It features optional user guidance by light.

    Argus 60: Speed gate for entrance control in surveilled areas with enhanced separation and safety sensor system. It offers door leaves from 990 to 1800 mm height and passage widths from 650 to 1,000 mm for better accessibility. The modular half-height sensor barrier can be adapted to environment with a broad range of materials and colours. It features optional user guidance by light, ambient lighting.

    Argus 80: Speed gate in high-end design for entrance control in surveilled areas with enhanced separation and safety sensor system. It offers door leaves from 990 to 1800 mm height and passage widths from 650 to 1,000 mm for better accessibility. The modular half-height sensor barrier can be adapted to environment with a broad range of materials and colours. It features optional user guidance by light, ambient lighting.

    Specification
    • Argus 40: Passage width: 650 mm Total width: 1060 mm Interlock height: 990 mm Interlock length: 1200 mm Guiding element width: 130 mm Guiding element of aluminium profile with aluminium inlay elements in the handrail and in the front Argus 60: Passage width: 650 mm Total width: 1060 mm Interlock height: 990 mm Interlock length: 1650 mm Guiding element width: 130 mm Guiding element of aluminium profile with aluminium inlay elements in the handrail and in the front Argus 80: Passage width: 650 mm Total width: 1060 mm Interlock height: 995 mm Interlock length: 1660 mm Guiding element width: 130 mm Aluminium profile with wraparound cover in the handrail and in the front on the side section (“Full Cast Layer” version). Two panes as side cover. “Custom” configuration: Here, the colour combinations can be freely selected from the existing Argus Color Index For the profiles and drive unit: White P 100, Cafe Creme P 235, Anthracite P180, Black P 190, Silver N 600, Niro N 700 For the inlay: White P 100, Anthracite P180, Silver N 600, Niro N 700, Niro S 700 For the scanner unit (40/60): Glass Black G 880 Glass White G 810 For the panels (side sections): Glass Clear G 800 Door leaf according to upper edge of door leaf and drive unit length (80): Plastic Clear G 801 or Glass Clear G 800
    Technical specification
    • Unique ref.argus_40-60-80
    • Product familyArgus
    • Product groupSensor Barriers
    • TypeObject (single object)
    • Date of publishing2019-04-11
    • Edition number2
    • Height (mm)990
    • Width (mm)1060
    • Depth (mm)1660
    Related
    • Material mainAluminium
    • Material secondaryGlass
    • Designed inGermany
    • Manufactured inGermany
    Classification
    • BIMobject CategoryDoors - Security Doors
    • UNSPSC nameSecurity or access control systems
    • UNSPSC code46171619
    • Uniclass 2015 CodeAc_75_65_01
    • Uniclass 2015 DescriptionAccess control systems commissioning
    • CSI MasterFormat 2014 Code08 74 00
    • CSI MasterFormat 2014 TitleAccess Control Hardware
    • OmniClass Number23-29 13 23
    • OmniClass TitleAccess Control Turnstiles
    • CSI UniFormat II CodeD5030
    • CSI UniFormat II TitleCommunications & Security
