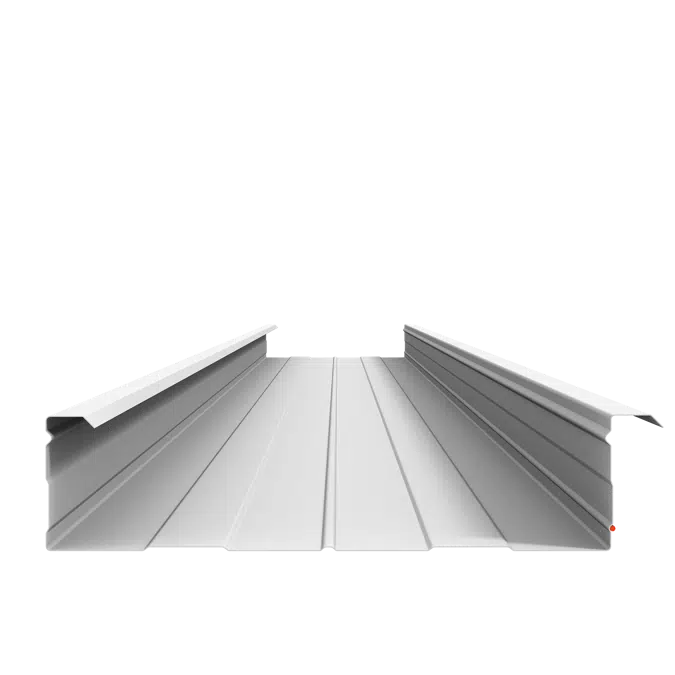

DOMICO Cassette Inner Shells/Steel Trays

Cassette inner shells/Steel trays have proven their worth as load-bearing and finishing components. They offer a favourable and safe possibility to give large-area facades an attractive appearance also inside. The DOMICO cassette inner shells are equipped at the factory with continuously applied sealing tapes at the longitudinal joints and pre-punched perforations for the longitudinal bolting – this guarantees time savings during installation.

Advantages:

Bypassing Backup distances up to 7 m
Fast, cost-effective installation thanks to factory prefabrication
Factory-side Pre-punched holes
Optimal corrosion protection by galvanizing and surface coating
High sound insulation values
Spacing of the module strips and Z-profiles up to 1.200 mm possible
Applied at the factory Longitudinal seal – joint coefficient with 10 times the value
Acoustic version possible

Specification

Cassette inner shells/Steel trays made of galvanised (DIN EN 10346) and coated (DIN EN 10169) steel. Side A with SP-coating (polyester) color ~RAL 9002, layer thickness 15 µ, corrosivity category C2, material class A1, side B with protective coating.
PROFILE WIDTHS:
- Standard-cassette 600 mm
- Special-cassette 200-600 mm
STEEL THICKNESS:
- 0,75 mm
- 0,90 mm
- 1,00 mm
- 1,10 mm
- 1,25 mm
- 1,50 mm
LENGTH: up to 18 m
ADDITIONAL INSULATION:
Additional layer of thermal insulation, full-surface thermal separation of the curtain wall from the inner shell with pressure-resistant rockwool insulation. material class A1. Structure according to Domico approval Z-14.1-690.
Insulation thickness: 20, 50 or 80 mm
